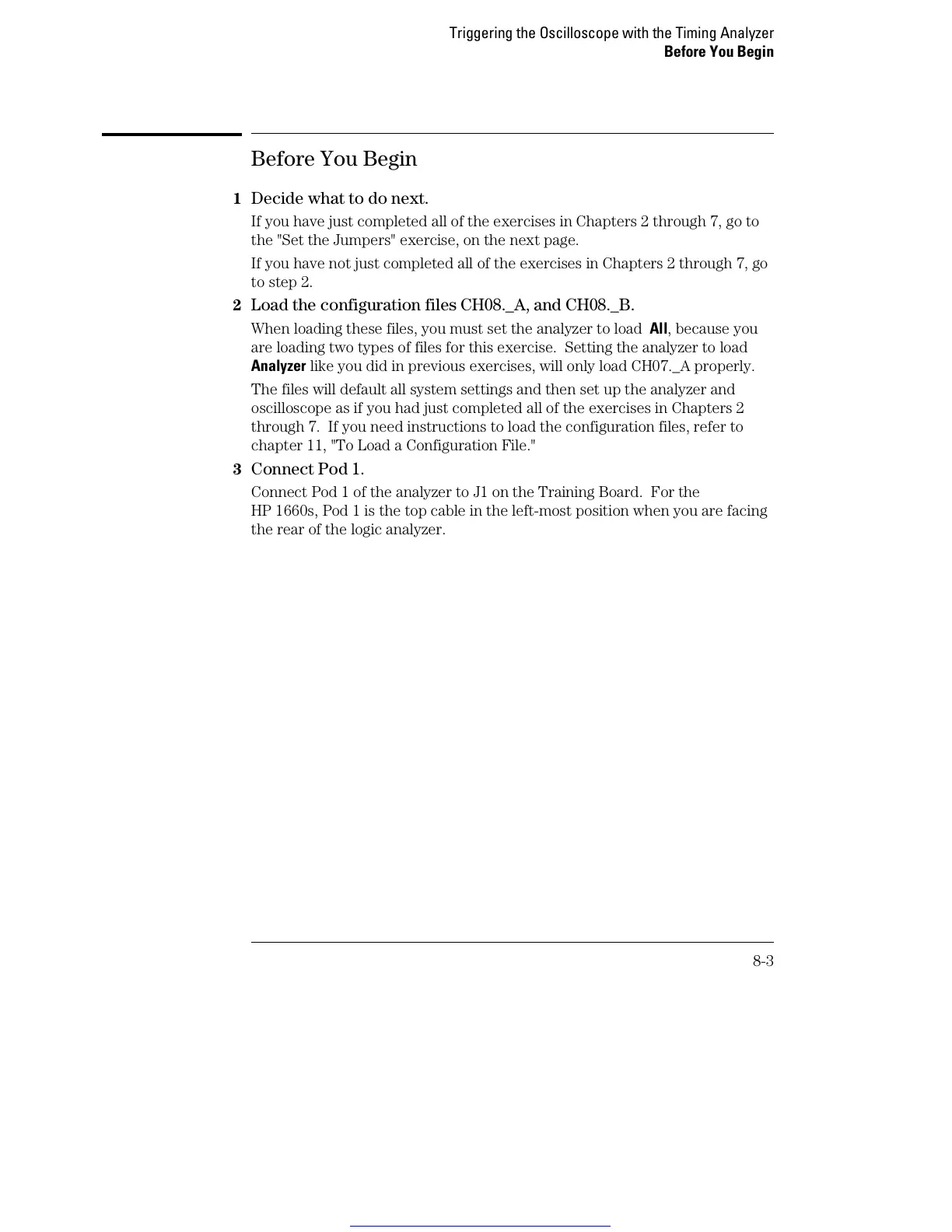

Before You Begin
1 Decide what to do next.
If you have just completed all of the exercises in Chapters 2 through 7, go to
the "Set the Jumpers" exercise, on the next page.
If you have not just completed all of the exercises in Chapters 2 through 7, go
to step 2.
2
Load the configuration files CH08._A, and CH08._B.
When loading these files, you must set the analyzer to load All, because you
are loading two types of files for this exercise. Setting the analyzer to load
Analyzer like you did in previous exercises, will only load CH07._A properly.
The files will default all system settings and then set up the analyzer and
oscilloscope as if you had just completed all of the exercises in Chapters 2
through 7. If you need instructions to load the configuration files, refer to
chapter 11, "To Load a Configuration File."
3
Connect Pod 1.
Connect Pod 1 of the analyzer to J1 on the Training Board. For the
HP 1660s, Pod 1 is the top cable in the left-most position when you are facing
the rear of the logic analyzer.
Triggering the Oscilloscope with the Timing Analyzer
Before You Begin
8-3
