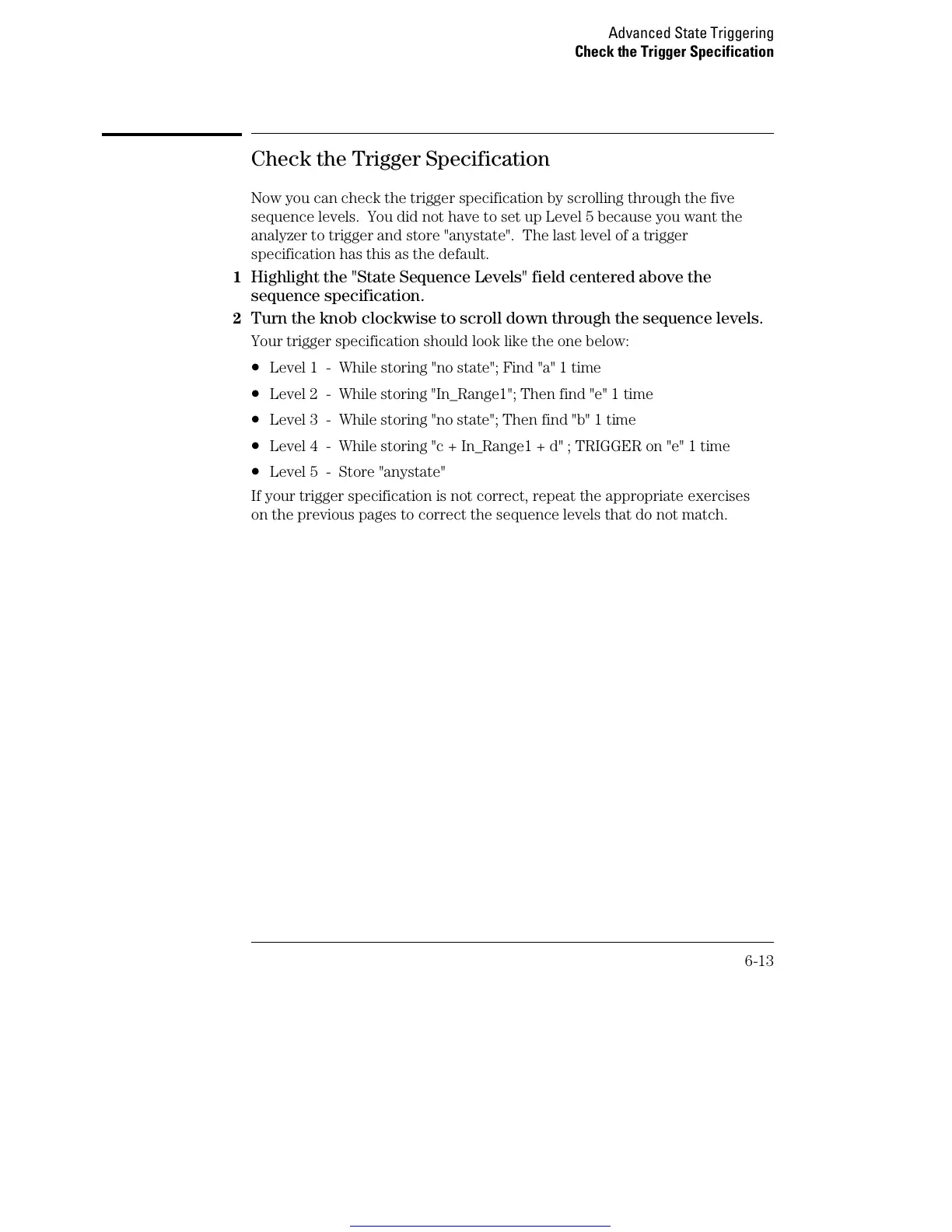

Check the Trigger Specification
Now you can check the trigger specification by scrolling through the five
sequence levels. You did not have to set up Level 5 because you want the
analyzer to trigger and store "anystate". The last level of a trigger
specification has this as the default.
1
Highlight the "State Sequence Levels" field centered above the
sequence specification.
2 Turn the knob clockwise to scroll down through the sequence levels.
Your trigger specification should look like the one below:
•
Level 1 - While storing "no state"; Find "a" 1 time
•
Level 2 - While storing "In_Range1"; Then find "e" 1 time
•
Level 3 - While storing "no state"; Then find "b" 1 time
•
Level 4 - While storing "c + In_Range1 + d" ; TRIGGER on "e" 1 time
•
Level 5 - Store "anystate"
If your trigger specification is not correct, repeat the appropriate exercises
on the previous pages to correct the sequence levels that do not match.
