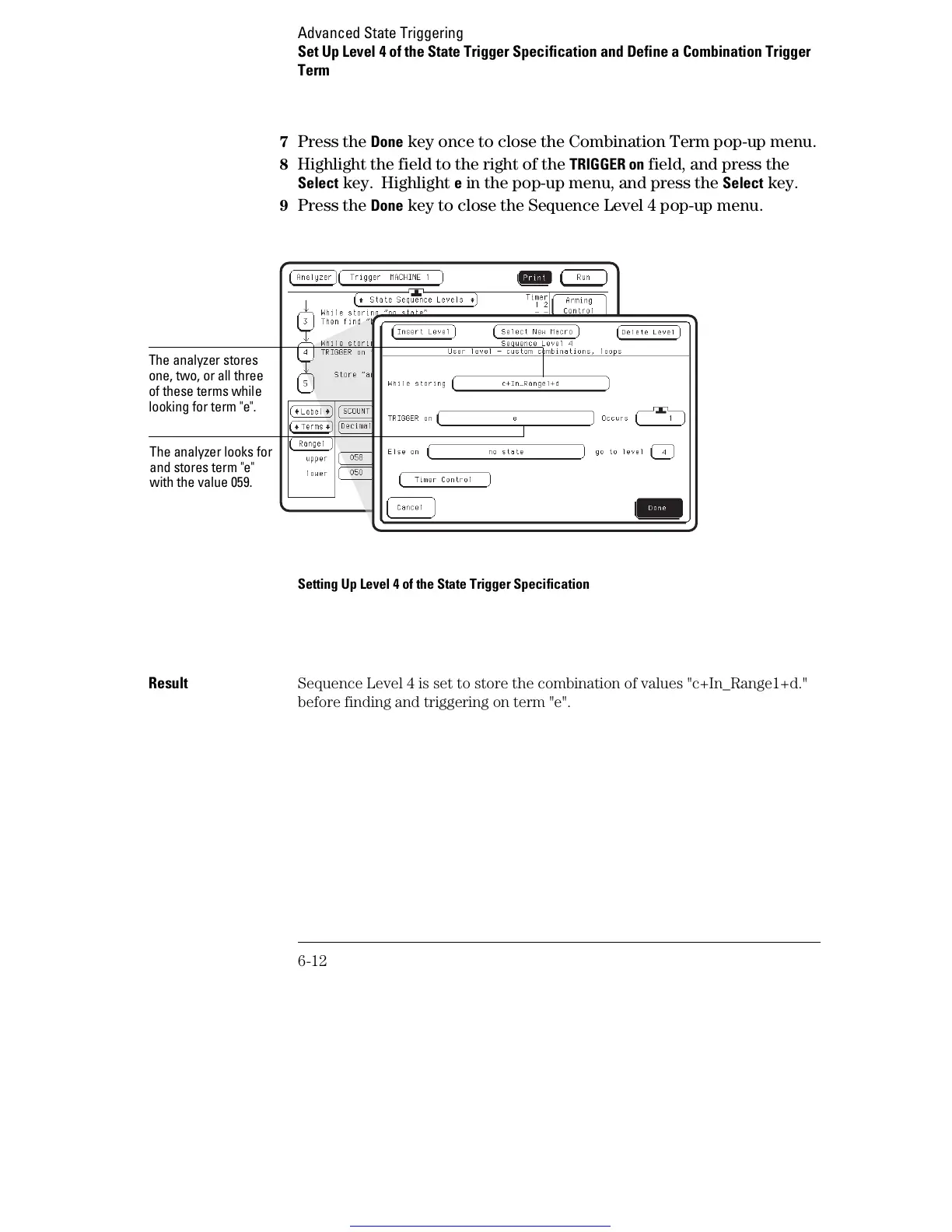

7 Press the Done key once to close the Combination Term pop-up menu.
8 Highlight the field to the right of the TRIGGER on field, and press the
Select key. Highlight e in the pop-up menu, and press the Select key.
9 Press the Done key to close the Sequence Level 4 pop-up menu.
Setting Up Level 4 of the State Trigger Specification
Result Sequence Level 4 is set to store the combination of values "c+In_Range1+d."
before finding and triggering on term "e".
The analyzer stores
one, two, or all three
of these terms while
looking for term "e".
The analyzer looks for
and stores term "e"
with the value 059.
Advanced State Triggering
Set Up Level 4 of the State Trigger Specification and Define a Combination Trigger
Term
6-12
