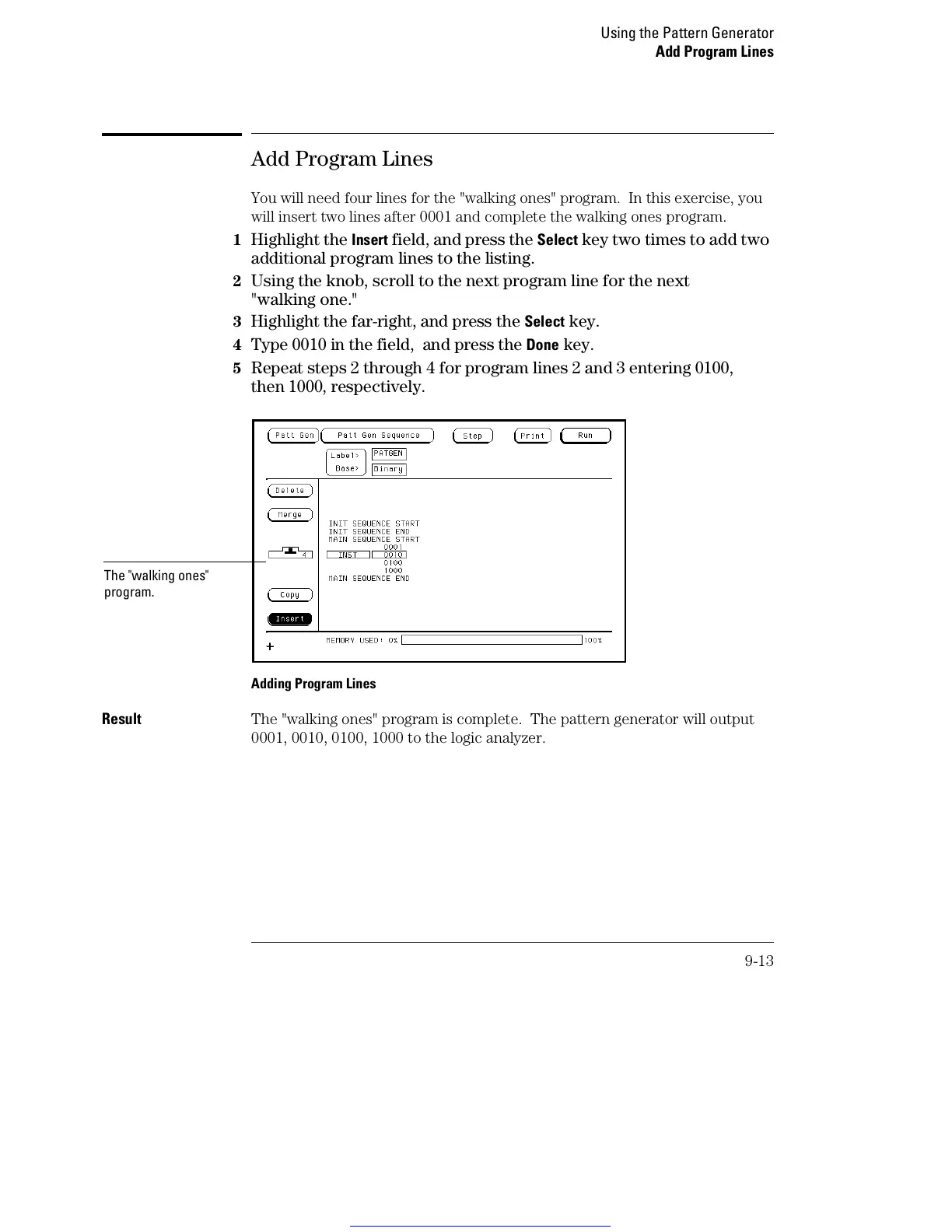

HP 1660 Series Training Guide

Add Program Lines
You will need four lines for the "walking ones" program. In this exercise, you
will insert two lines after 0001 and complete the walking ones program.
1
Highlight the Insert field, and press the Select key two times to add two
additional program lines to the listing.
2 Using the knob, scroll to the next program line for the next
"walking one."
3 Highlight the far-right, and press the Select key.
4 Type 0010 in the field, and press the Done key.
5 Repeat steps 2 through 4 for program lines 2 and 3 entering 0100,
then 1000, respectively.
Adding Program Lines
Result The "walking ones" program is complete. The pattern generator will output
0001, 0010, 0100, 1000 to the logic analyzer.
The "walking ones"
program.
Using the Pattern Generator
Add Program Lines
9-13
