HP 1660 Series Training Guide

Get the Waveform on the Display
The Autoscale feature automatically scales the vertical sensitivity and the
horizontal time base of the oscilloscope to provide a display of the waveform.
This simplifies the setup of the oscilloscope and is very helpful when the
amplitude and period of a signal are unknown.
1
Press the Config key.
2 Highlight the field in the top, left corner of the display and press the
Select key. Highlight Scope in the pop-up menu, and press the Select
key.
3 Highlight the Autoscale field and press the Select key. Highlight
Continue in the pop-up menu, and press the Select key.

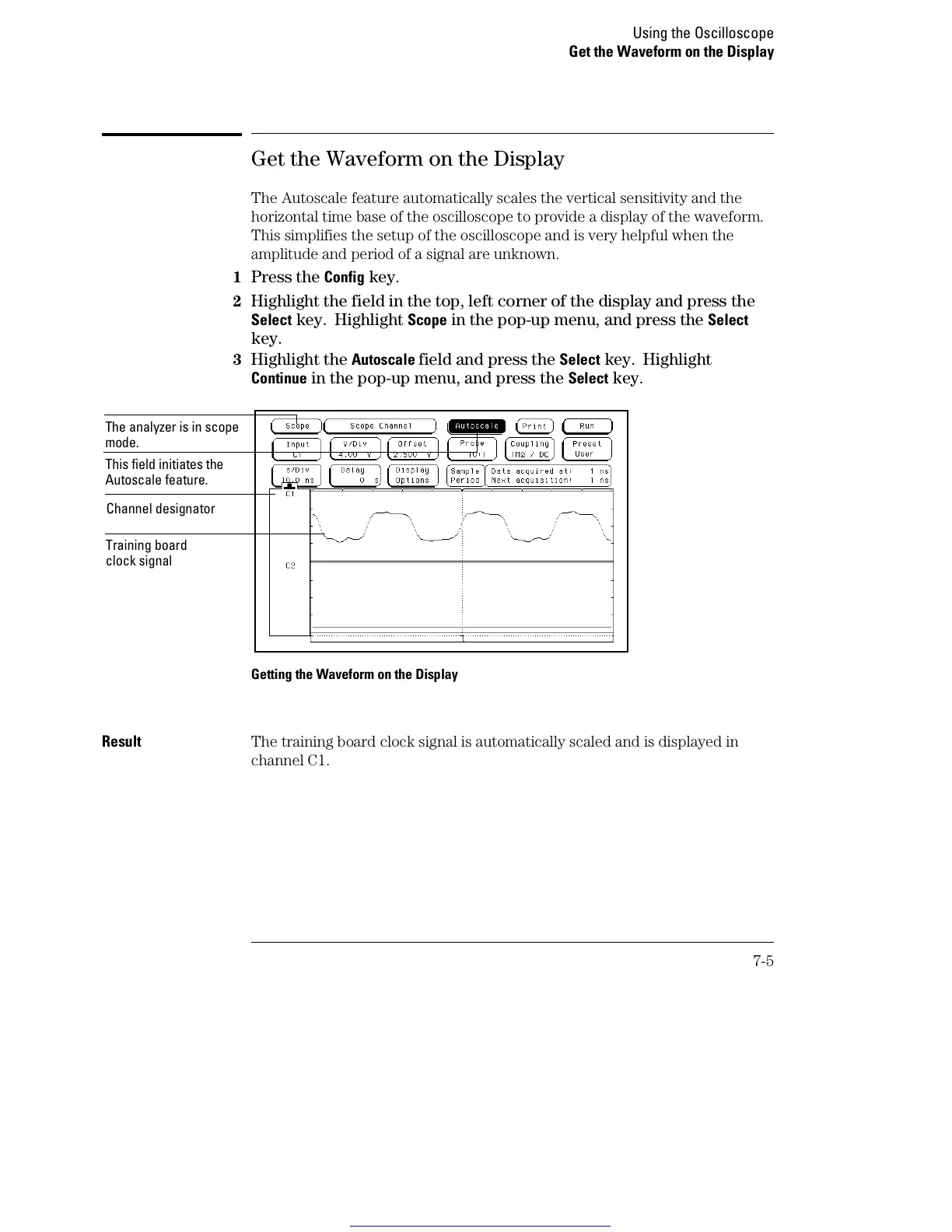

Getting the Waveform on the Display
Result The training board clock signal is automatically scaled and is displayed in
channel C1.
This field initiates the
Autoscale feature.
Training board
clock signal
Channel designator
The analyzer is in scope
mode.
Using the Oscilloscope
Get the Waveform on the Display
7-5
Get other manuals https://www.bkmanuals.com

HP 1660 Series Specifications

General

Category	Logic Analyzer
Glitch Trigger	Yes
Pattern Trigger	Yes
State Analysis	Yes
Transitional Timing	Yes
Trigger Modes	Edge, Pattern, Glitch
