7 Highlight the Execute field, then press the Select key.
Note If you are using a logic analyzer model other than an HP 1661, a message may
appear, telling you that some pod information has been changed or
truncated, or needs to be connected in a particular way. This is not an error.
The message appears because your logic analyzer has a different number of
data pods than an HP 1661, which was used to create the file you are loading.
8
Repeat steps 6 and 7 for any other files you want to load. When you
are finished loading files, highlight the
System field, then press the
Select key. Choose
Analyzer in the pop-up menu.

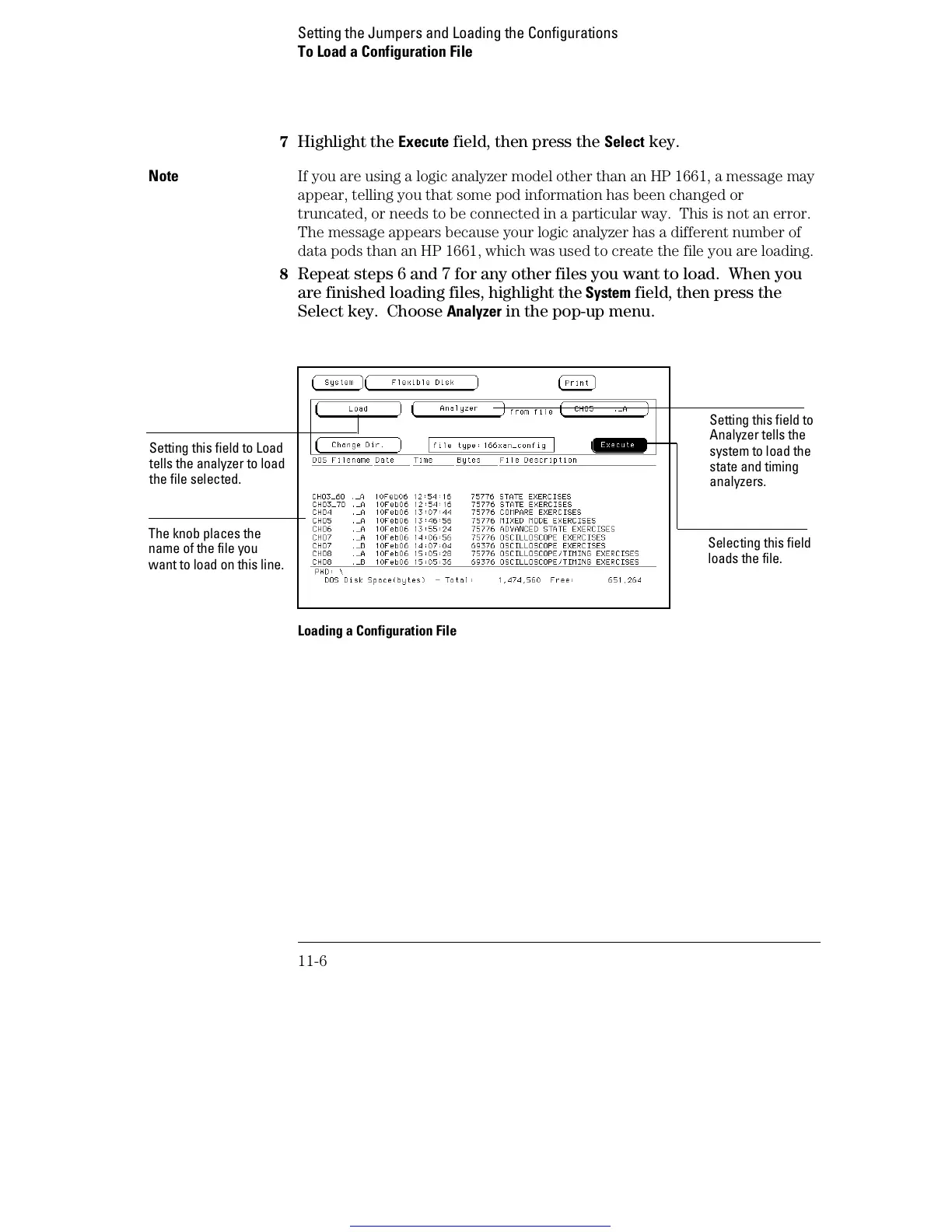

Loading a Configuration File
The knob places the
name of the file you
want to load on this line.
Setting this field to
Analyzer tells the
system to load the
state and timing
analyzers.
Selecting this field
loads the file.
Setting this field to Load
tells the analyzer to load
the file selected.
Setting the Jumpers and Loading the Configurations
To Load a Configuration File
11-6
