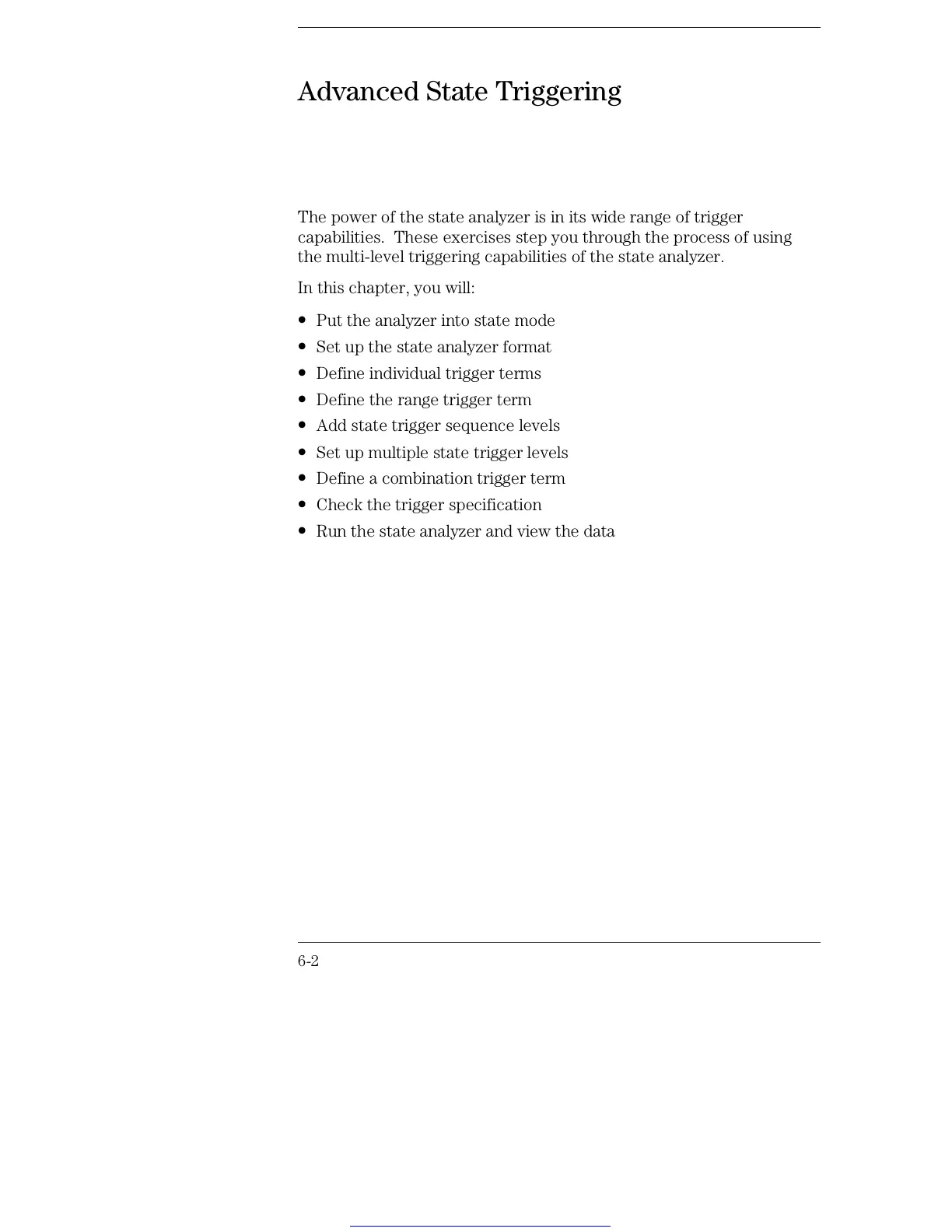

Advanced State Triggering
The power of the state analyzer is in its wide range of trigger
capabilities. These exercises step you through the process of using
the multi-level triggering capabilities of the state analyzer.
In this chapter, you will:
• Put the analyzer into state mode
• Set up the state analyzer format
• Define individual trigger terms
• Define the range trigger term
• Add state trigger sequence levels
• Set up multiple state trigger levels
• Define a combination trigger term
• Check the trigger specification
• Run the state analyzer and view the data
