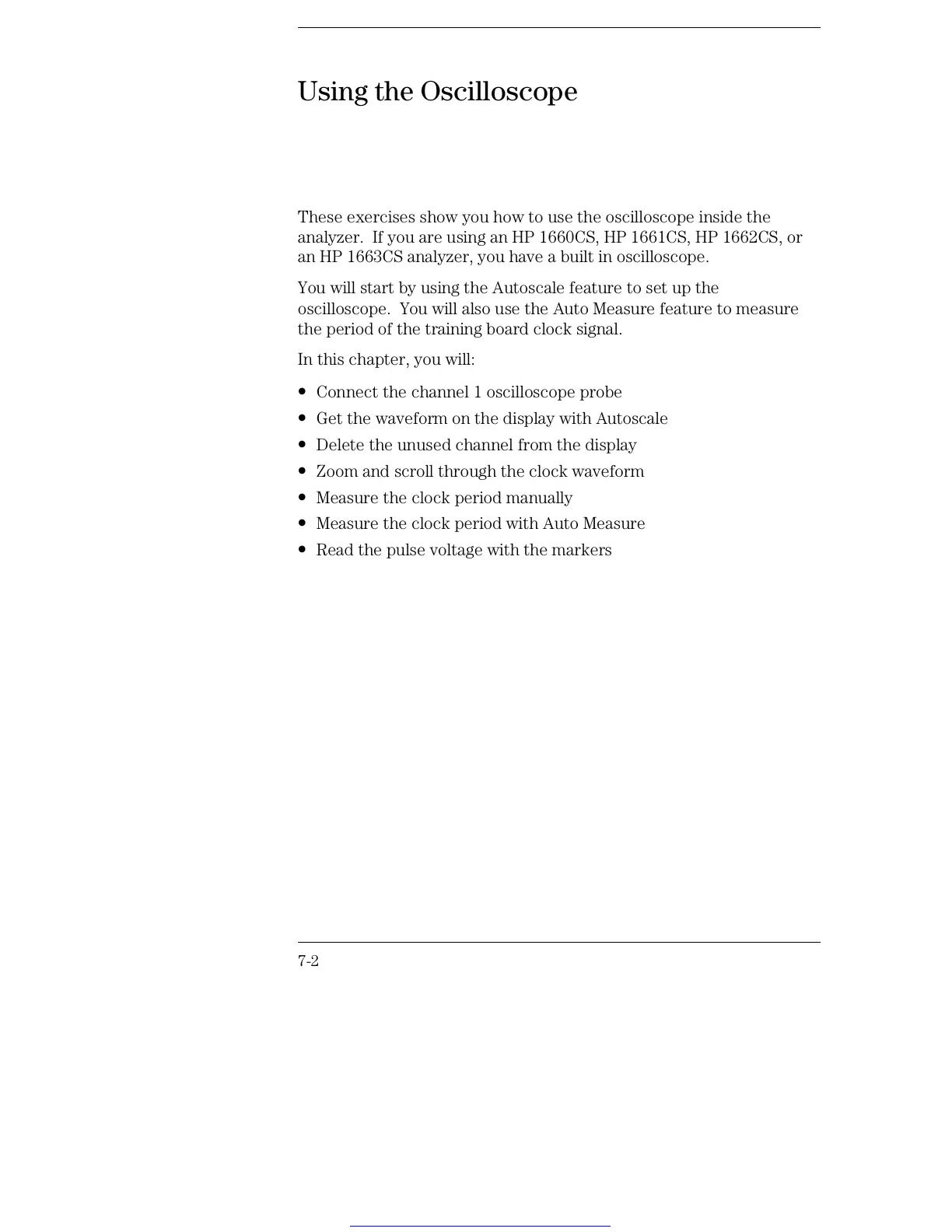

Using the Oscilloscope

These exercises show you how to use the oscilloscope inside the

analyzer. If you are using an HP 1660CS, HP 1661CS, HP 1662CS, or

an HP 1663CS analyzer, you have a built in oscilloscope.

You will start by using the Autoscale feature to set up the

oscilloscope. You will also use the Auto Measure feature to measure

the period of the training board clock signal.

In this chapter, you will:

• Connect the channel 1 oscilloscope probe

• Get the waveform on the display with Autoscale

• Delete the unused channel from the display

• Zoom and scroll through the clock waveform

• Measure the clock period manually

• Measure the clock period with Auto Measure

• Read the pulse voltage with the markers
