6Ć73 Removal and ReplacementC3187Ć90000

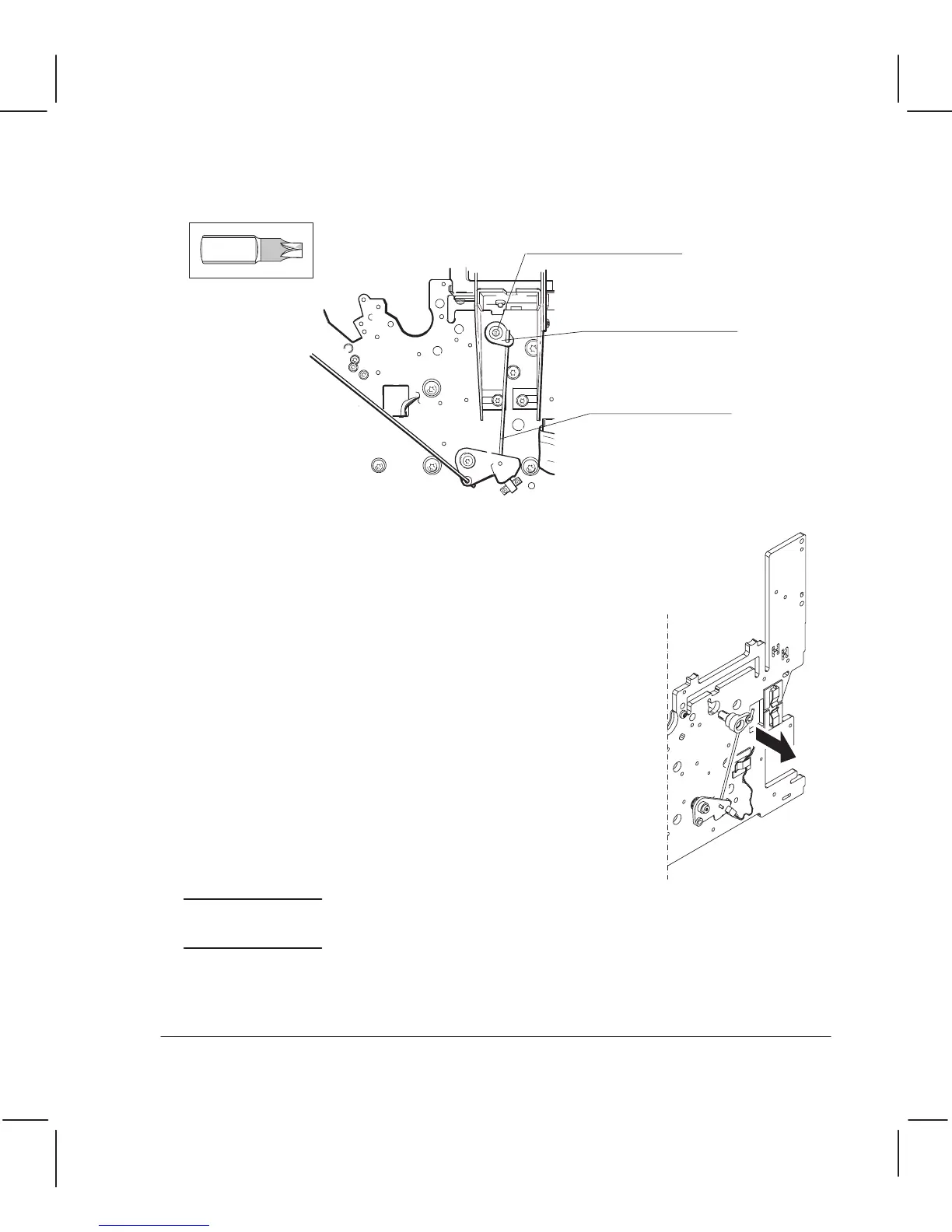

On the right side, loosen the camĆjournal screw 12 turns counterĆclockwise and push the
screw in towards the center of the plotter.
Torx-8
Repeat the previous step and try to pull the cam journal and rear wire link
to the right and clear of the bar cam.
Do not overtighten the camĆjournal screw. Doing
so could break the journal, cause the bar cam to enter the sideplate
hole, and thus restrict the action of the pinchĆarm lever.
CAUTION
To Next Page
