HP 530 User Manual

7-21
Wireless Security Configuration
Establishing Security
.

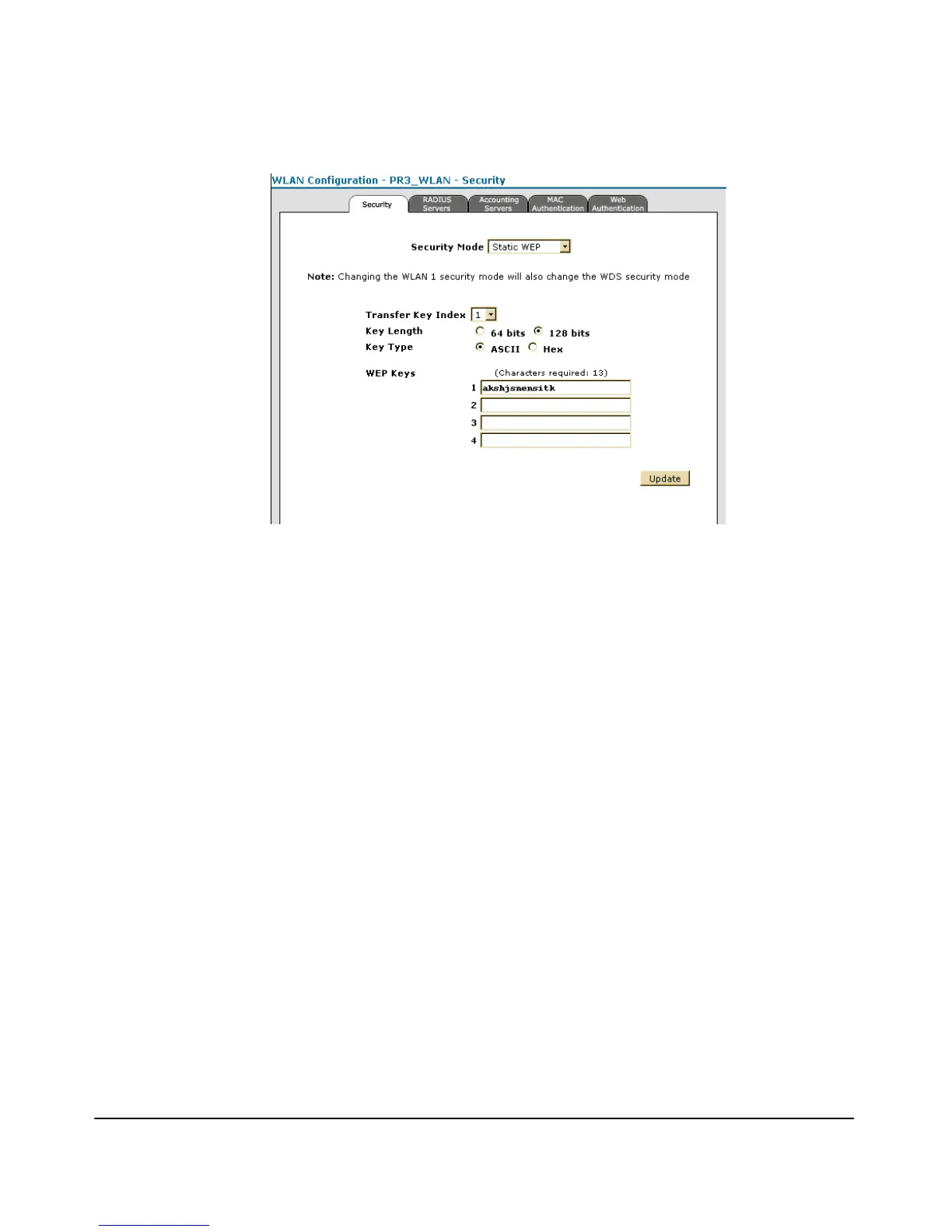

Figure 7-2. Configuring Static WEP
To Configure Static WEP Shared Keys:
1. Select Network Setup > WLANs.
2. Click [Edit] after the selected WLAN. The WLAN Configuration Security
pop-up window opens, displaying the Security tab.
3. Select Static WEP from the Security Mode drop-down.
4. To allow system authentication, select Shared from the Authentication
option.
5. Select a key index from the Transfer Key Index to be used for encryption
for the WLAN interface.
6. Select the key length to be used by all stations, 64 bits or 128 bits.
7. Select the Hex or ASCII for Key Type.
8. Enter the key value conforming to the length and type already selected.
9. Select [Update] to set Static WEP security parameters.

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
