9. Connect the measurement equipment as shown in Figure 3-11.
pg625e

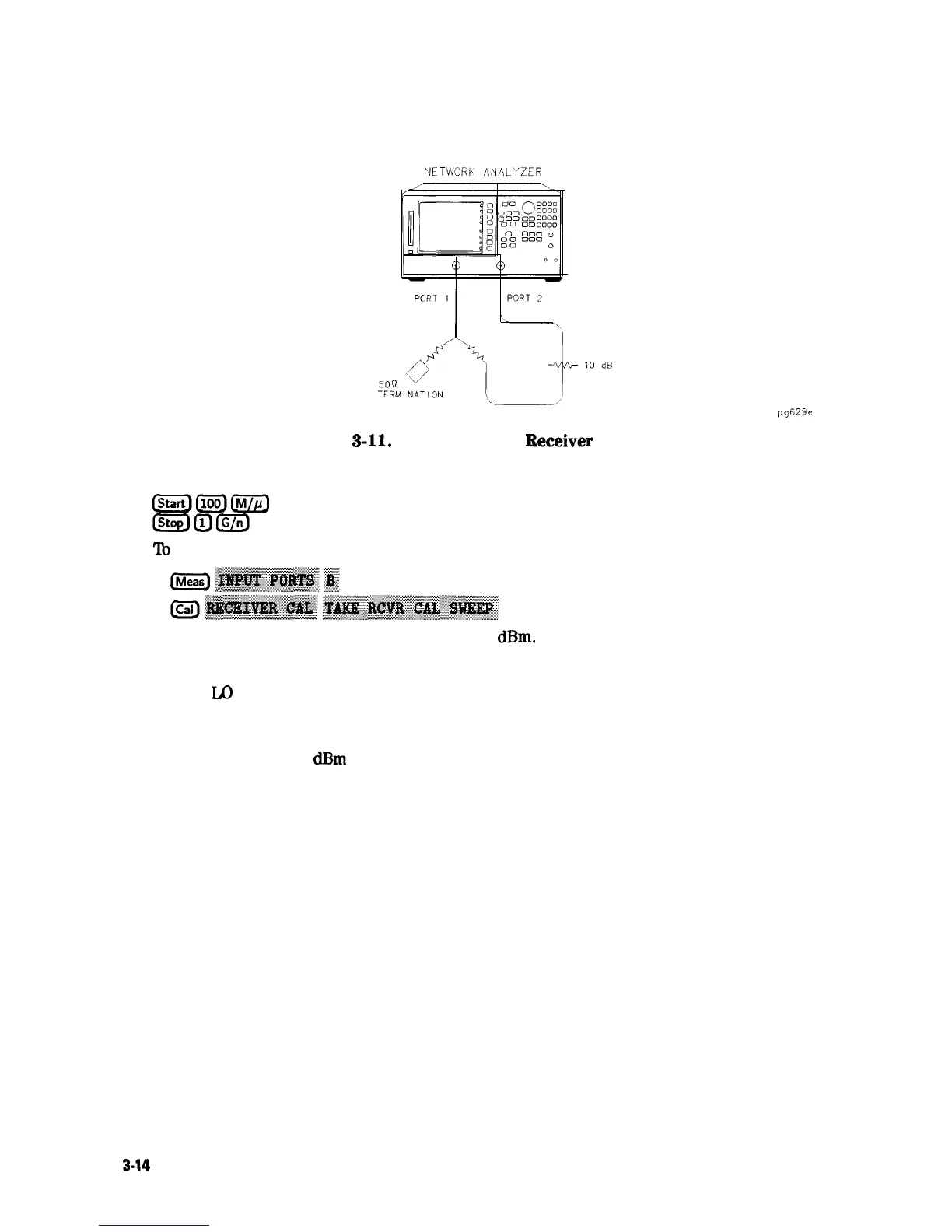

Figure 3-11. Connections for Eeceiver Calibration
10.
11.
12.
13.
Set the following analyzer parameters:
@jgg=p
To calibrate the B-channel over the IF range, press:
Once completed, the analyzer should display 0 deem.
Make the connections shown in Figure 3-12.
Set the Lo source to the desired CW frequency and power level. For this example the
values are as follows:
n CW frequency = 1500 MHz
n source power = 13 dBm
3-14 Making Mixer Measurements
