HP 8753E - Example Mixer RF Feedthrough Measurement

START 10 000 000 MHZ STOP 3 000.000
000 MHZ

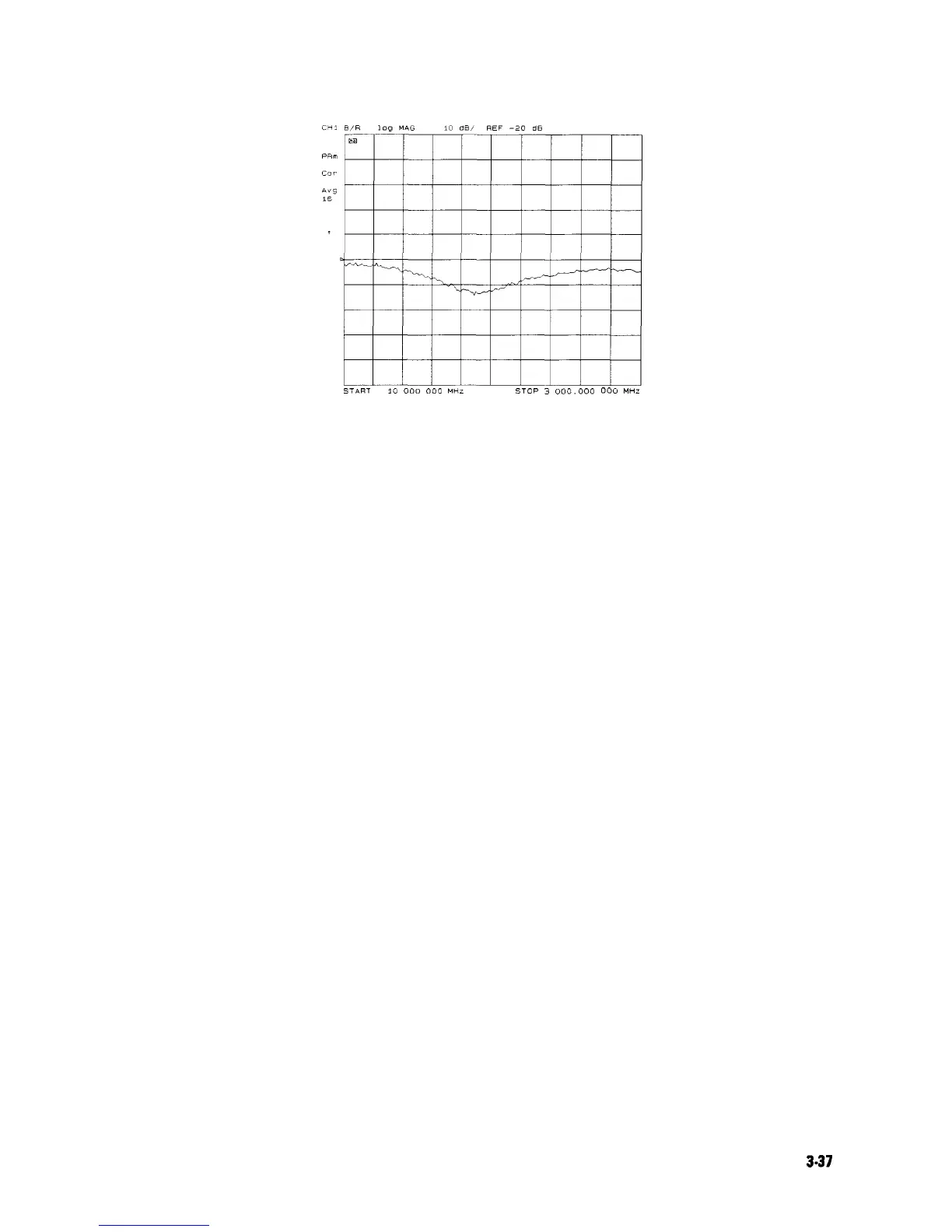

Figure 3-30. Example Mixer RF Feedthrough Measurement
You can measure the IF to RF isolation in a similar manner, but with the following
modifications:
n Use the analyzer source as the IF signal drive.
n View the leakage signal at the RF port.
