Chapter 10 10-13
Removal and Replacement Procedures

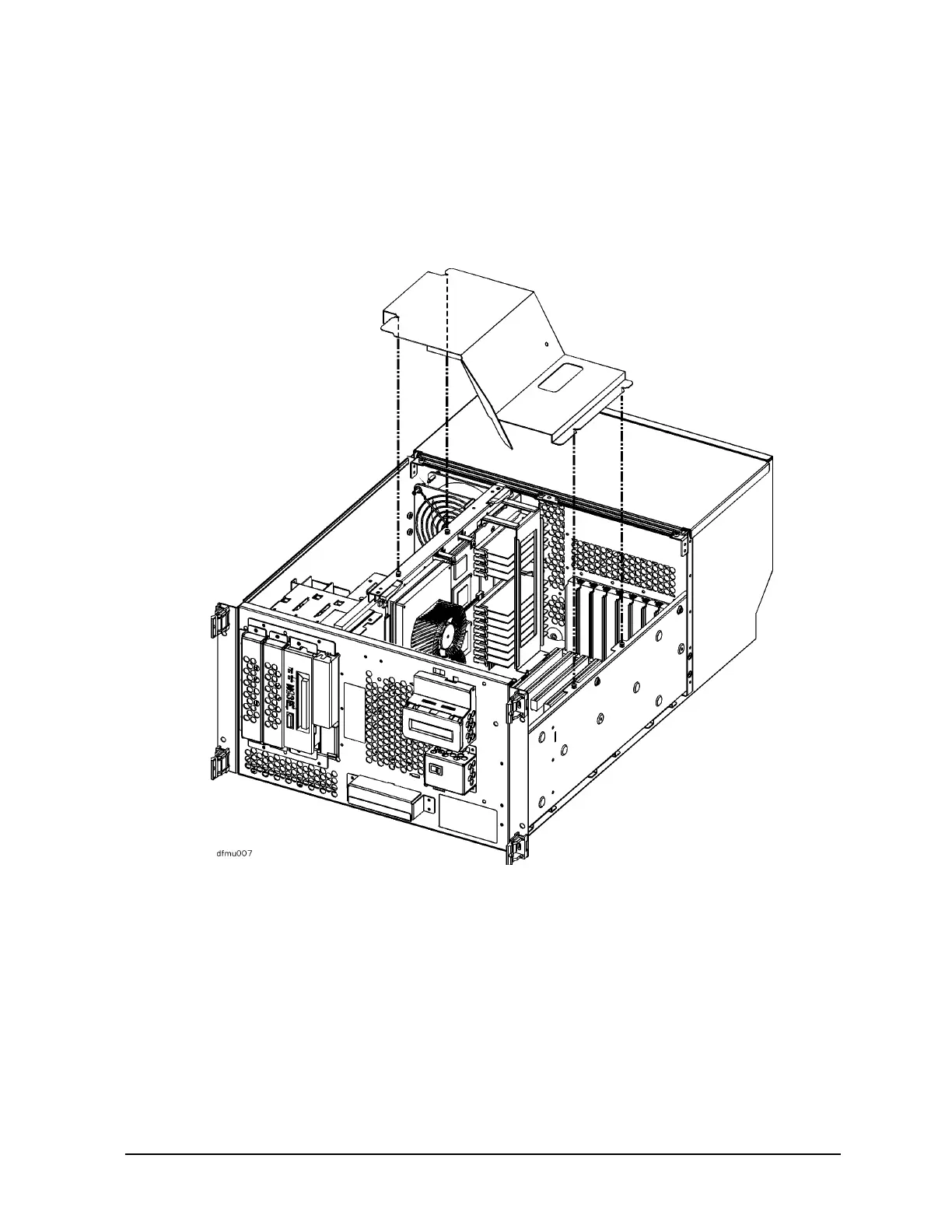

To remove R Class EMI shielding:
1. Loosen the two notches at the top of the EMI cover from the tabs on the Processor/Memory card by
pulling back and slightly flexing the EMI cover until the notches come loose.
2. Pull the EMI cover up slightly until the two notches at the bottom of the cover come loose from the
tabs at the side server chassis.
