11-24 Chapter 11

SCSI Peripherals and I/O Information

HP C2478SZ (C1504B) DDS Tape Drives

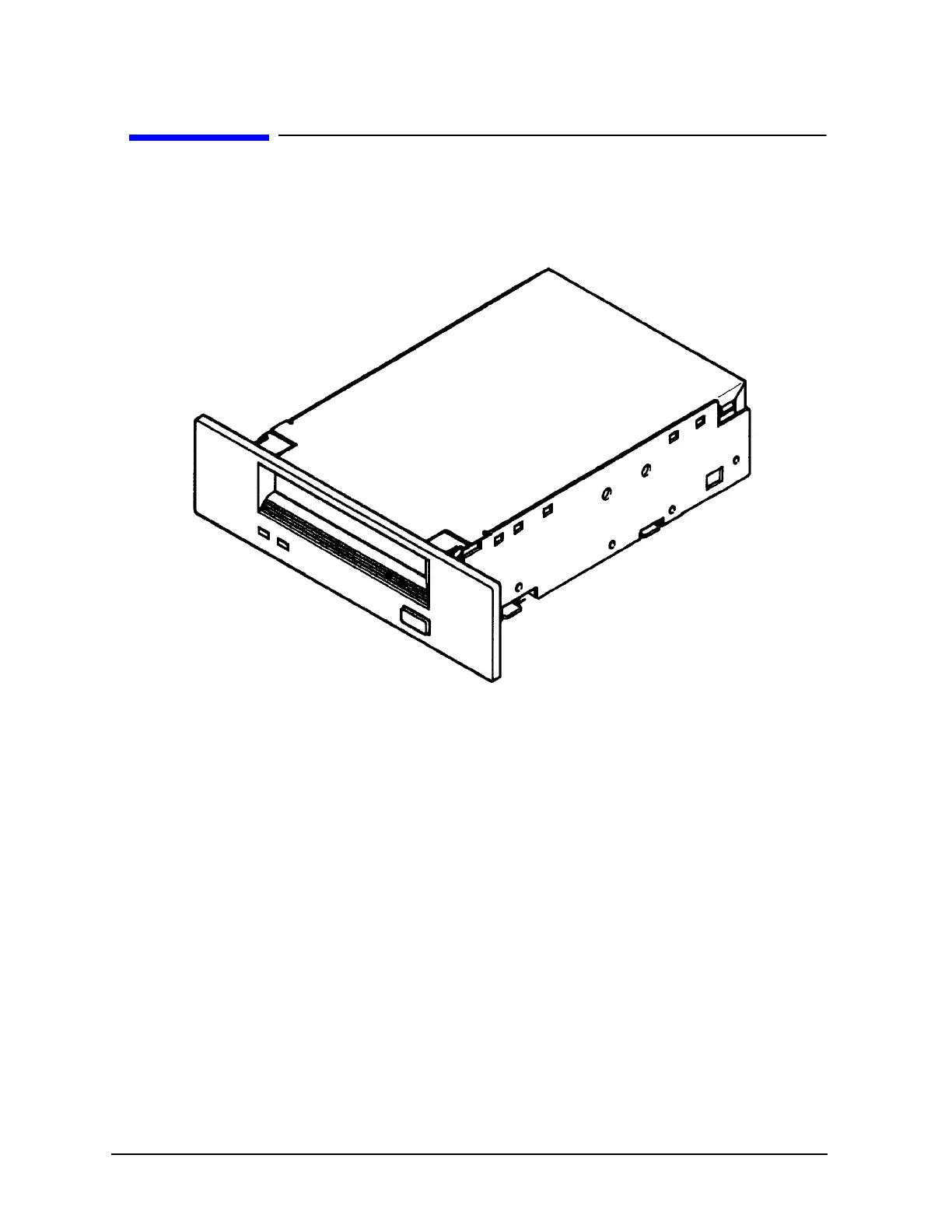

Figure 11-5 shows the C2478SZ DDS tape drive.

Figure 11-5 HP C2478SZ Tape Drive

Specifications

• Integrated Single-ended SCSI-2 interface

• Reads and Writes DDS-1 formats dependent on the mounted tape dimension:

60 meter tape - DDS-1 = 1.3 Gbytes

90 meter tape - DDS-1 = 2.0 Gbytes

The above capacities will increase from 2 to 4 times the non-compressed capacities. The average

data compression factor is 2 to 1.

• 1 Mbyte Data Buffer

• Switch or program selectable on-board DCLZ data compression

• Automatic Error correction and detection

• Downloadable firmware

• Asynchronous burst data transfer rate = 1.5 Mbytes/sec.

• Synchronous burst transfer rate maximum = 5.0 Mbytes/sec.
