10-32 Chapter 10

Removal and Replacement Procedures

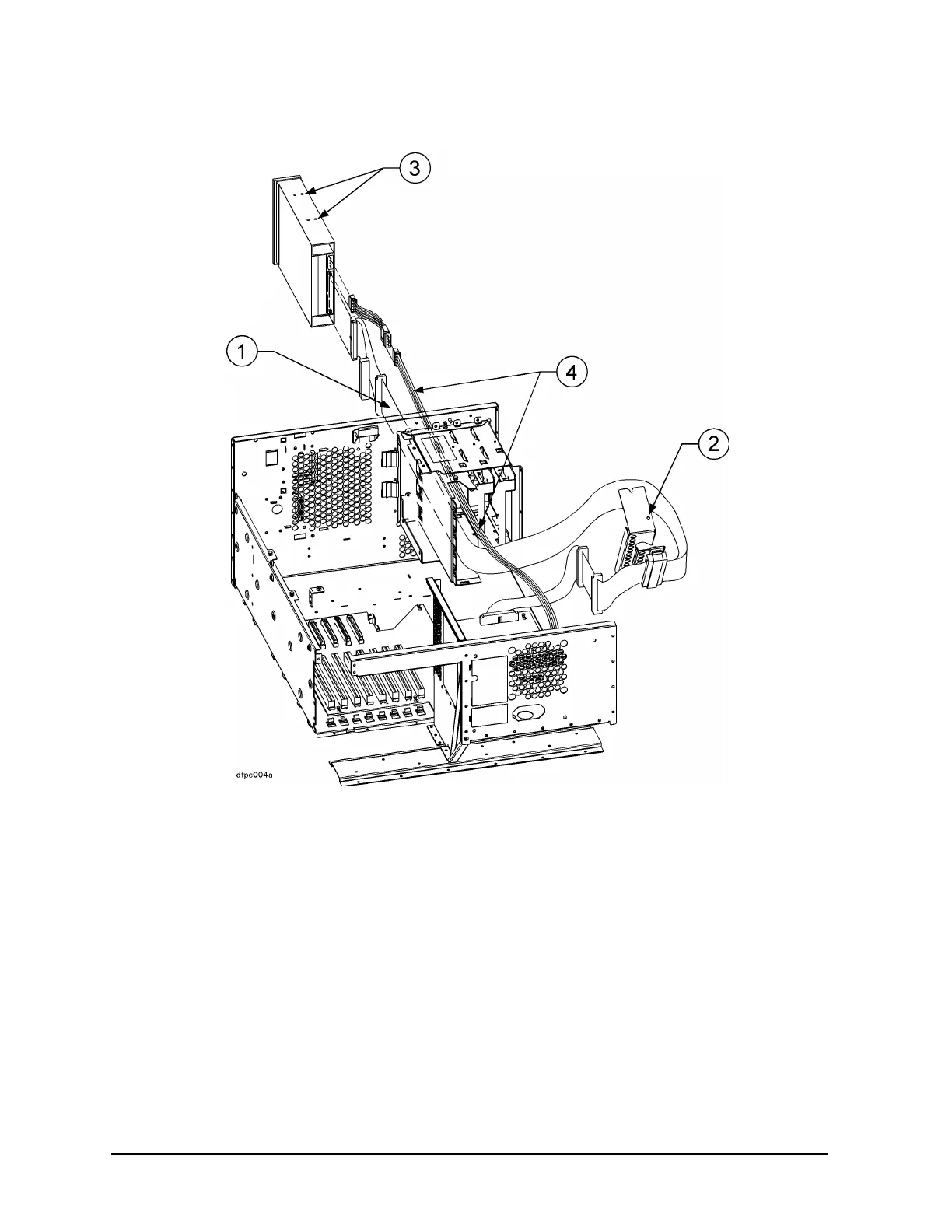

Figure 10-20Removable Media Peripheral Bay Removal/Replacement — R Class

5. Remove four screws in the front of the chassis, and remove the peripheral bay.

6. Remove the screws on the side of the peripheral bay and slide the device out.
