HP 9000 Series - Figure 10-10 IO Card Retainer Bracket Removal

To Next Page

To Previous Page

10-20 Chapter 10

Removal and Replacement Procedures

Remove EISA/HSC Cards

NOTE This may require the removal of the EMI shield as was done for removing the

Processor/Memory card.

1. Disconnect any external cables attached to the card(s) on the back of the system.

2. Loosen and remove the two screws that secure the I/O card retainer bracket to the I/O card guide.

(See Figure 10-10.)

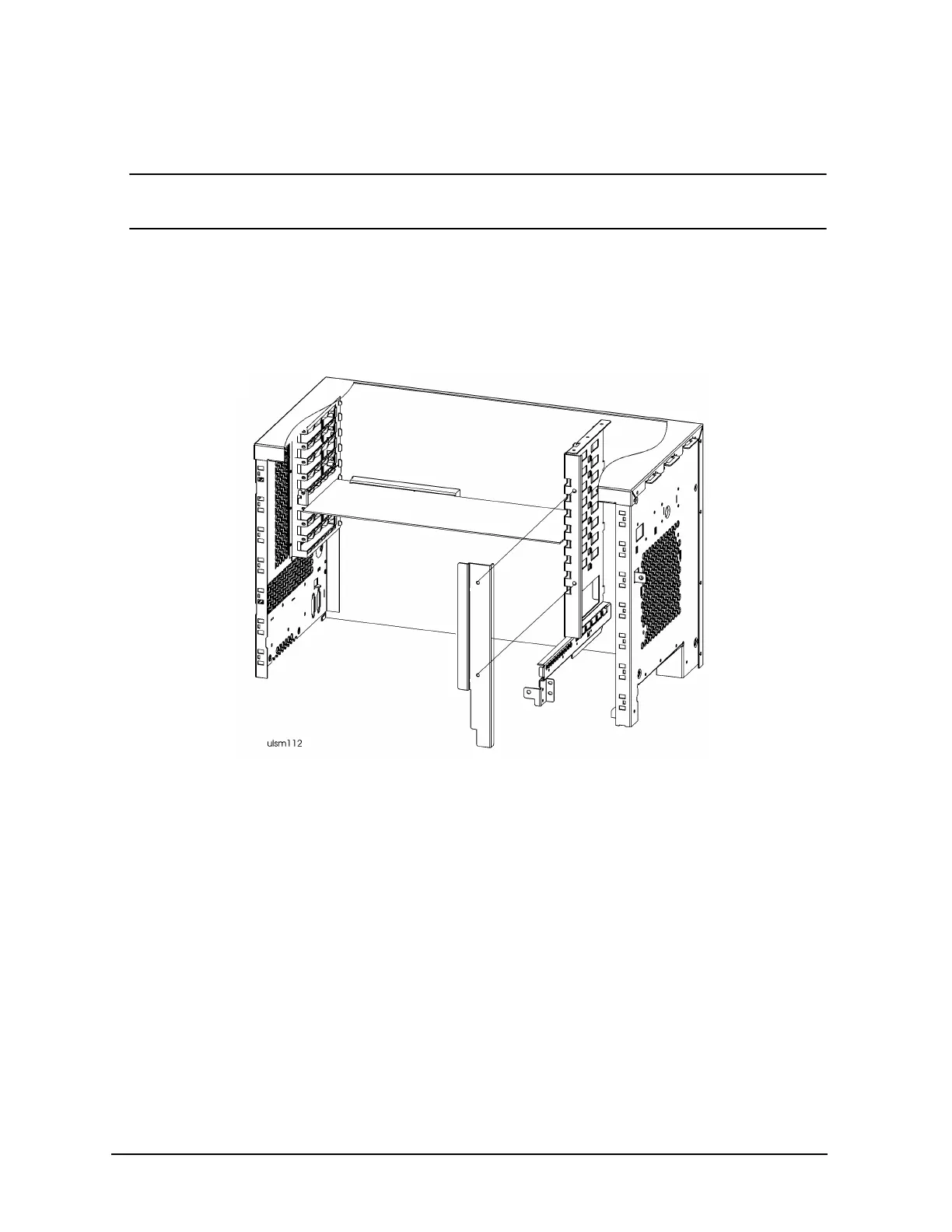

Figure 10-10 I/O Card Retainer Bracket Removal — D Class
