Firmware Upgrade Failures:

• Wrong firmware tape - The tape will be ejected within 1/2 to one minute of activity and no update

will have been done. (Match tape part number to product model number.)

• Firmware tape used up - The tape will automatically be re-formatted by the drive as a normal data

tape and will no longer react as a firmware tape (This will occur after 200 passes).

• Firmware tape write protected - The tape will be ejected and no update will be done.

• Process interrupted at crucial point - If a power interruption occurs or activity on the SCSI bus

interferes, a DEAD DRIVE will be created.

Verify the upgrade by using appropriate diagnostic or utility. (SCSIDDS Interactive command

REVision)

Troubleshooting

The A3183A DDS-2 tape Unit is replaced as a single FRU.

Front Panel Status Display

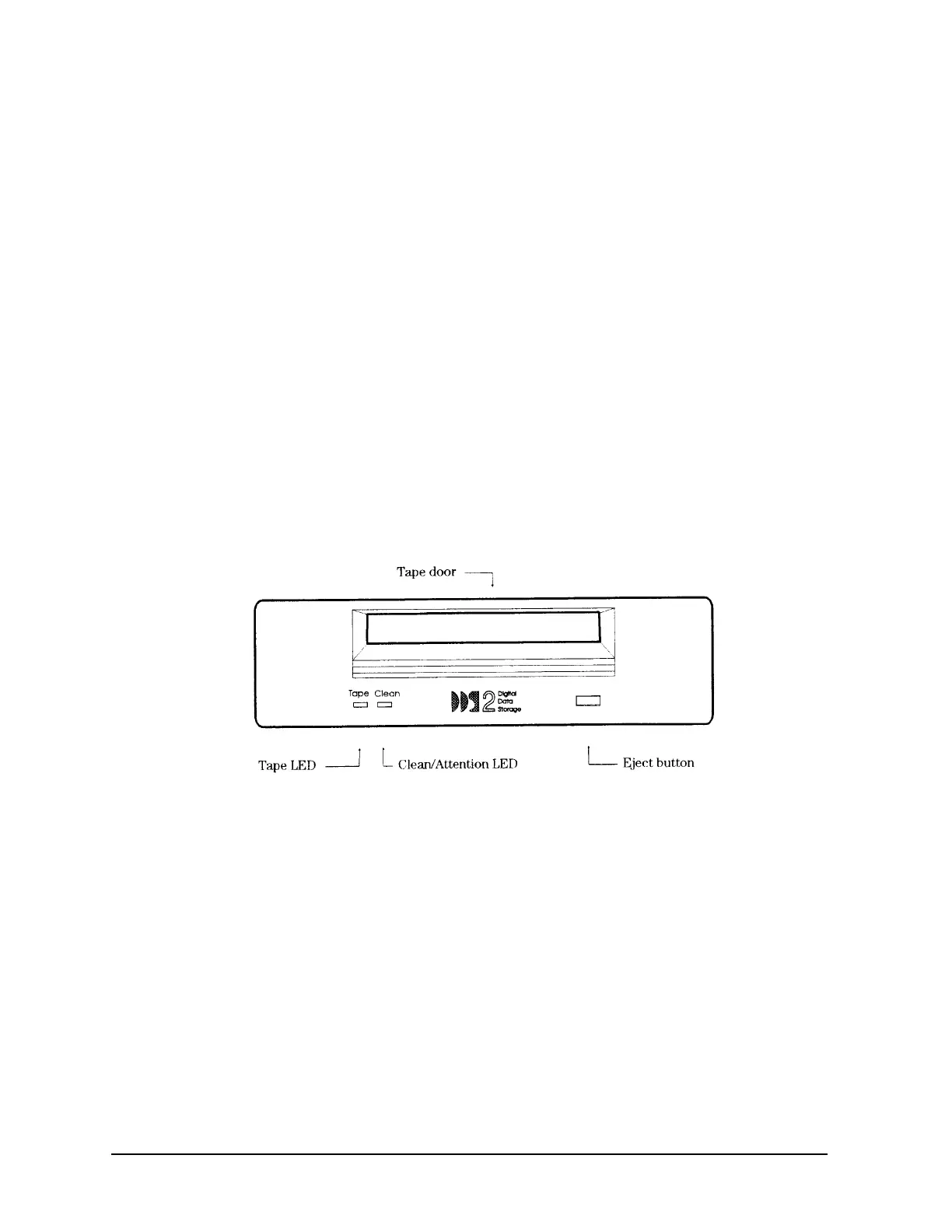

Figure 11-14 A3183A Front Panel
