HP 9000 Series - Figure 10-17 IDE Floppy RemovalReplacement; Remove and Replace Peripherals

To Next Page

To Previous Page

10-28 Chapter 10

Removal and Replacement Procedures

Remove and Replace Peripherals

This section contains procedures for removing and replacing:

❏ IDE floppy drive

❏ CD-ROM and tape drives

❏ SE SCSI hard disk drives

Remove the IDE Floppy (D Class only)

Refer to Figure 10-17.

1. Remove the power and data (flat ribbon) cables from the rear of the floppy drive.

2. Remove two screws in the front of the chassis, and slide the floppy drive out of the peripheral bay.

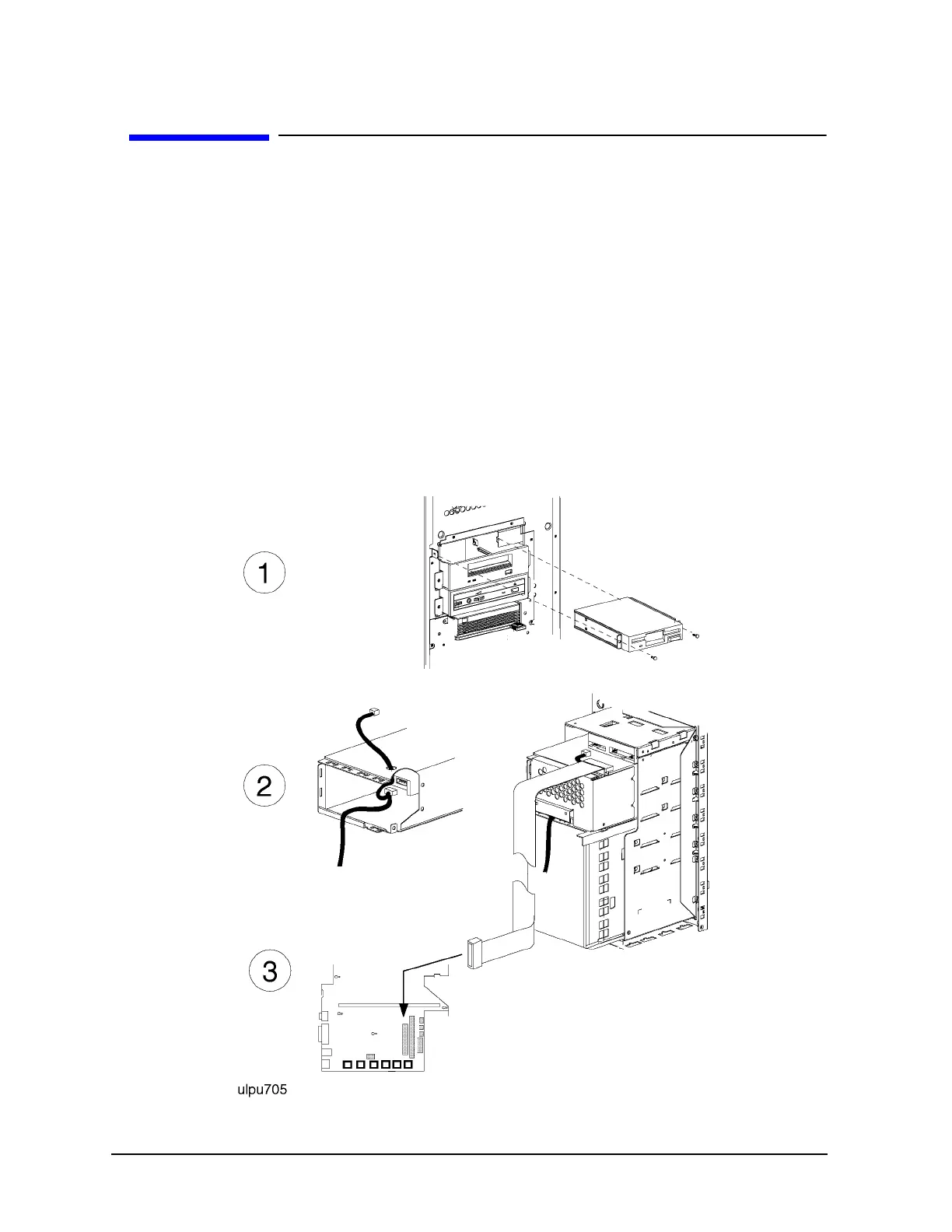

Figure 10-17 IDE Floppy Removal/Replacement
