HP 9000 Series - Figure 11-26 A2944 A Front Panel; Preventative Maintenance

To Next Page

To Previous Page

Chapter 11 11-55

SCSI Peripherals and I/O Information

Preventative Maintenance

Clean the device every 8 hours of mounted tape usage. Cleaning Cartridge Kit = HP 92281C

Troubleshooting

Diagnostics

SCSIQIC

Front Panel Status Display

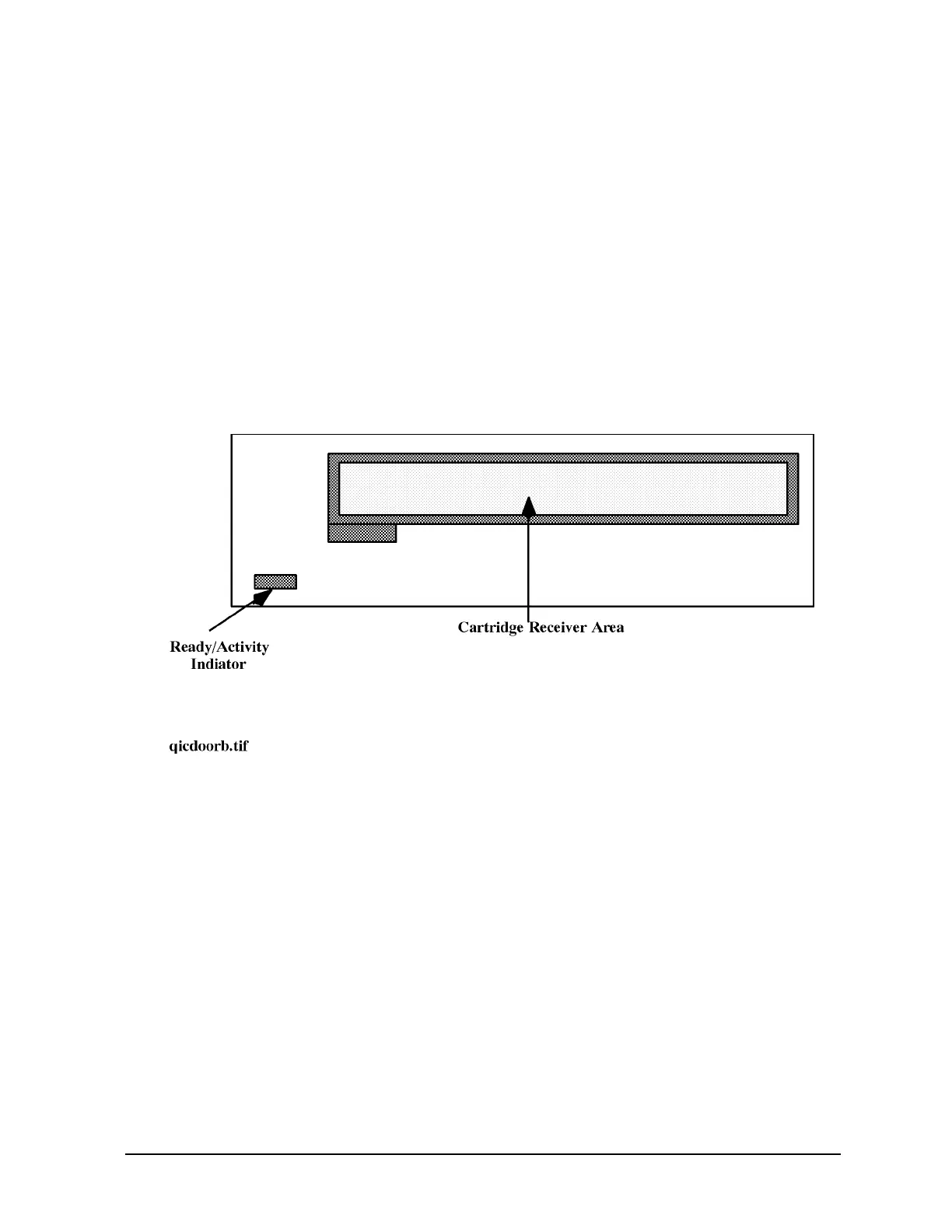

Figure 11-26 A2944A Front Panel

Replacement Part Number

The replacement part number is: A2944-69001
