Chapter 11 11-51

SCSI Peripherals and I/O Information

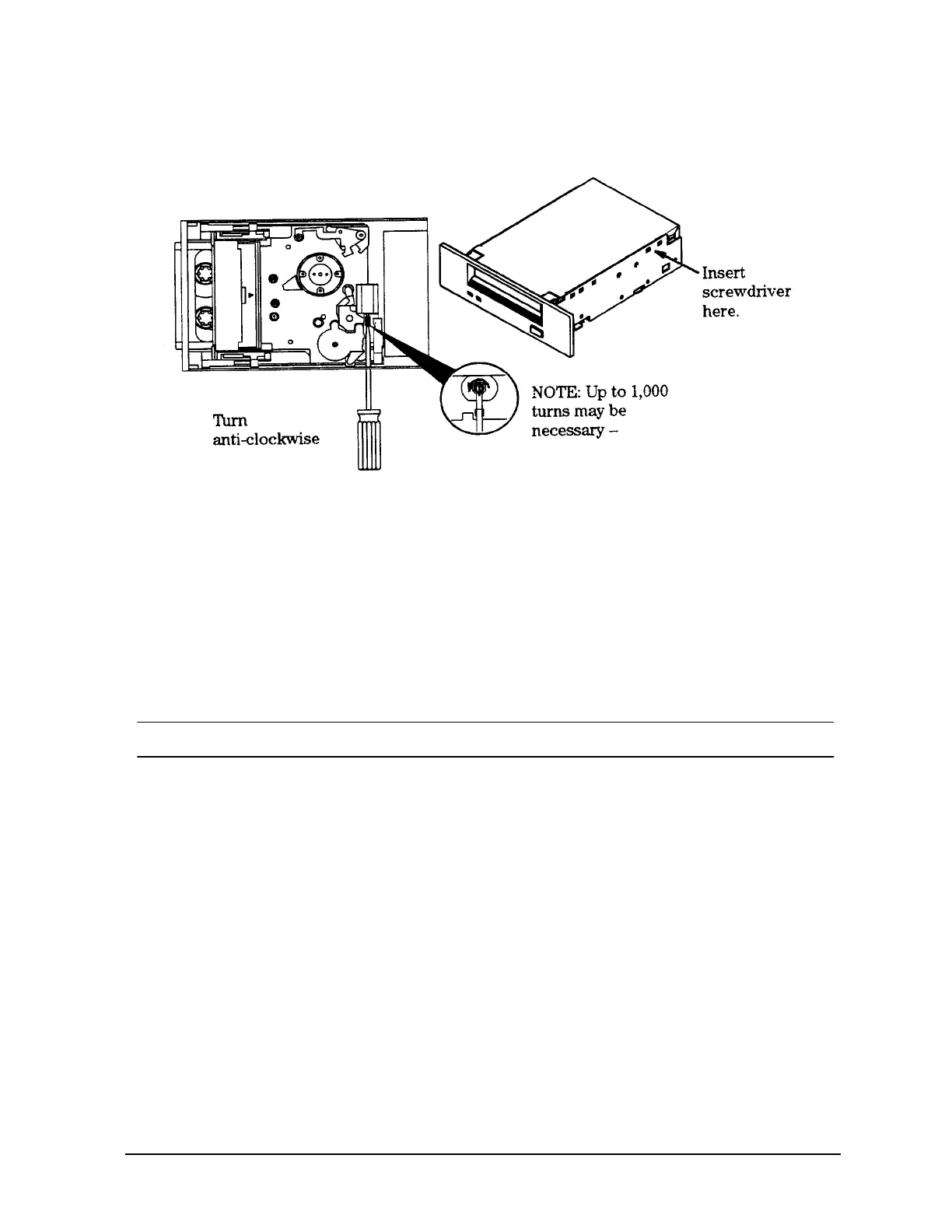

Figure 11-22 Manual Cartridge Removal

Alternate Method

Tools required:

• electric screwdriver

• T8 or T9 Torx bit

• ball point pen (with plastic ink tube)

• scissors or knife blade

NOTE This procedure destroys the ink pen.

1. Remove the plastic ink tube from the ink pen.

2. Cut off approximately 50mm (2 inches) of empty ink tube from the pen.

3. Force one end of the ink tube over the torx bit.

4. Push the other end over the slotted end of the worm gear. This forms a flexible coupling to the

electric screwdriver.

5. Place the electric screwdriver in the unscrew (counter clockwise) position and turn on.

Exchange Part Number

The exchange part number is: C1533-69203 or C1537-69202
