A3304A 2 Gb Single-Ended SCSI Disk Drive (D200, D210,

&D250)

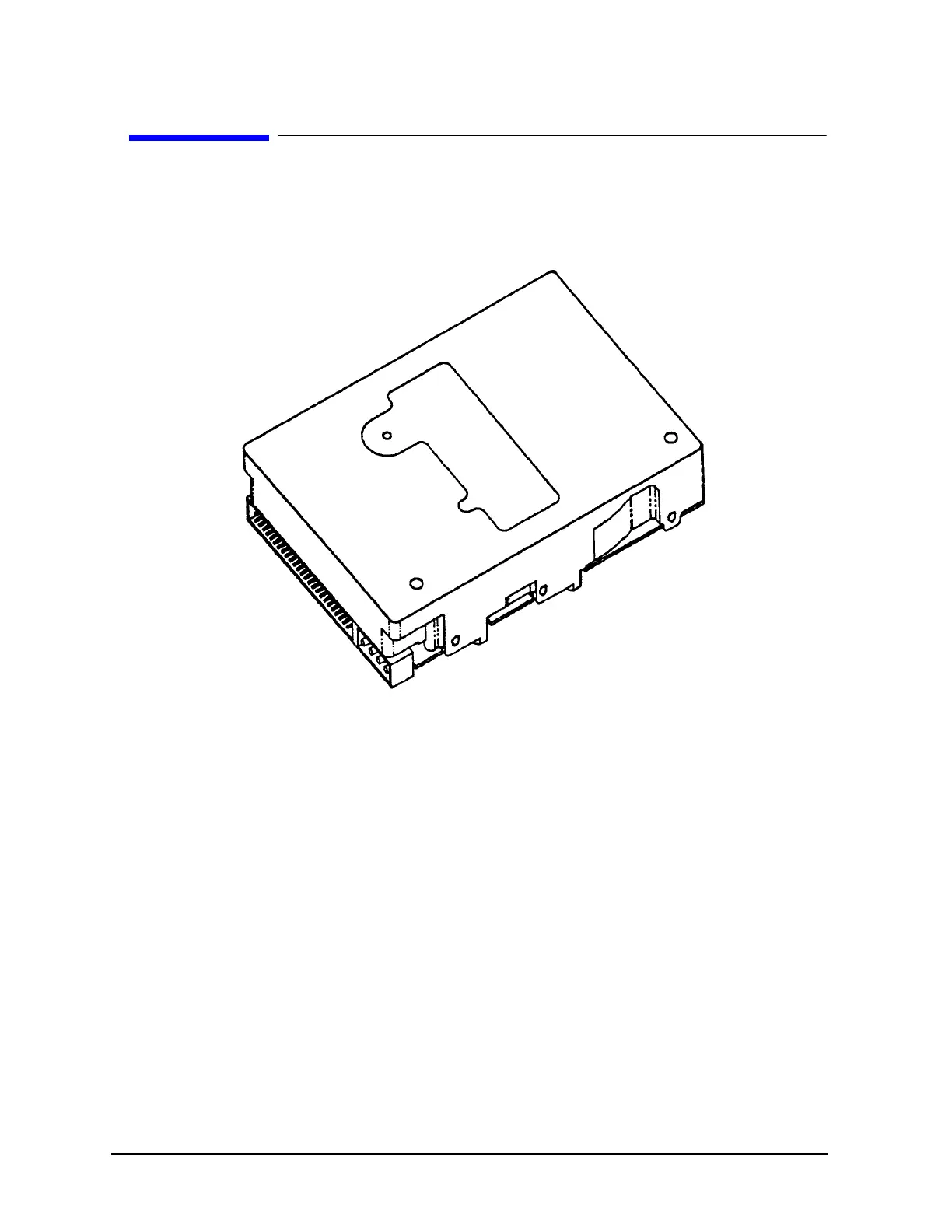

Figure 11-38 A3304A Disk Drive

Specifications

• Integrated SE SCSI-2 Controller

• Asynchronous and Synchronous data transfer protocol

• Downloadable Firmware

• Selectable sector sizes (Default 512 bytes/sector)

• Integrated error correction protocol = 96 bit Reed-Solomom ECC

• Protected against data corruption from power off and unrecoverable data during block relocations

• Sealed head/disk assembly

• Dedicated head landing zone

• Automatic shipping lock

• Automatic thermal compensation

• Self-test Performed at power on
