11-68 Chapter 11

SCSI Peripherals and I/O Information

A3349A 1 Gb Single-Ended SCSI Disk Drive (D200, D210,

&D250)

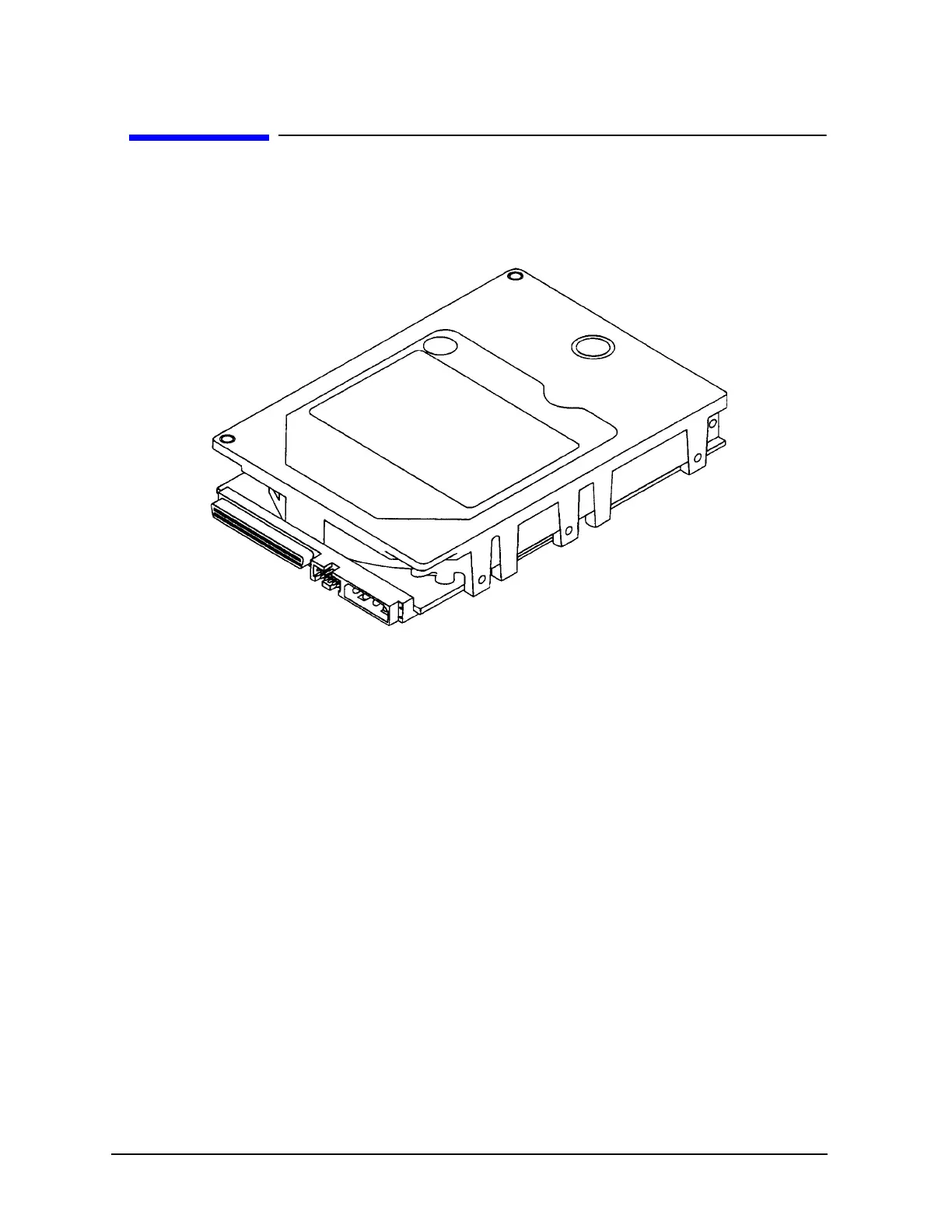

Figure 11-36 A3349A Disk Drive

Specifications

• Integrated SE SCSI-2 Controller

• Asynchronous and Synchronous data transfer protocol

• Downloadable Firmware

• Selectable sector sizes (Default 512 bytes/sector)

• Integrated error correction protocol = 96 bit Reed-Solomom ECC

• Sealed head/disk assembly

• Dedicated head landing zone

• Automatic shipping lock

• Automatic thermal compensation

• Self-test Performed at power on

• Synchronous spindle capability

• Data buffer size = 256 Kbytes

• Formatted data capacity limited to = 1052.09 Mbytes for compatability
