11-74 Chapter 11

SCSI Peripherals and I/O Information

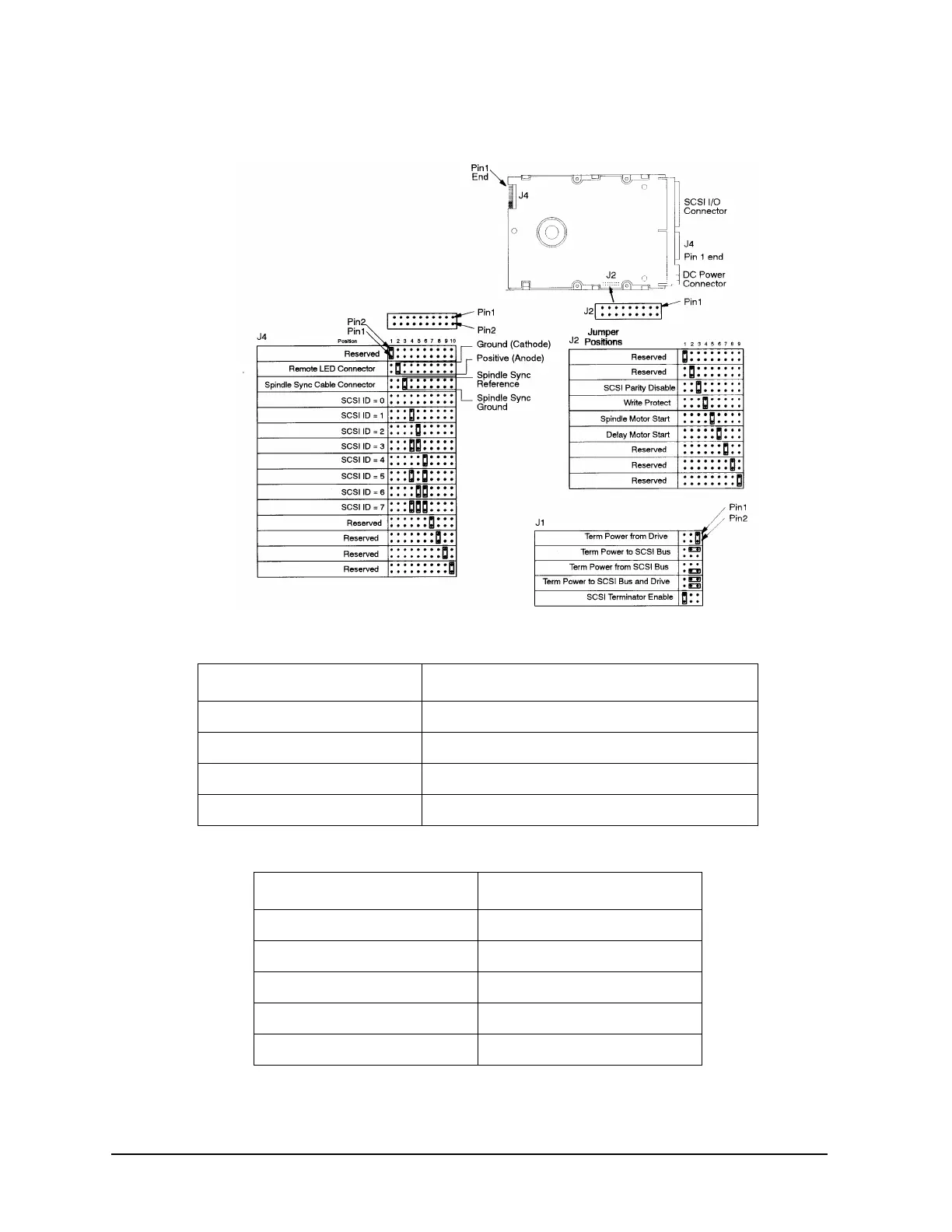

Table 11-28 J2 Jumper Functions

Table 11-29 J4 Jumper Functions

Function Pins

SCSI Parity Disable 5 &6 (no jumper)

Write Protect 7 &8 (no jumper)

Enable Motor Start 9 &10 (Default jumper in)

Delay Motor Start 11 &12 (no jumper, **system dependent)

Function Pins

Remote LED Connector 3 = Anode, 4 = Cathode

Spindle Sync Reference 5 = Ground, 6 = Reference

SCSI ID 0 7 &8

SCSI ID 1 9 &10

SCSI ID 2 11 &12
