&KDSWHU
+DUGZ DUH ,QVWDOODWLRQ DQG &RQILJXUDWLRQ
6\VWHP &RQILJXUDWLRQ /DEHO

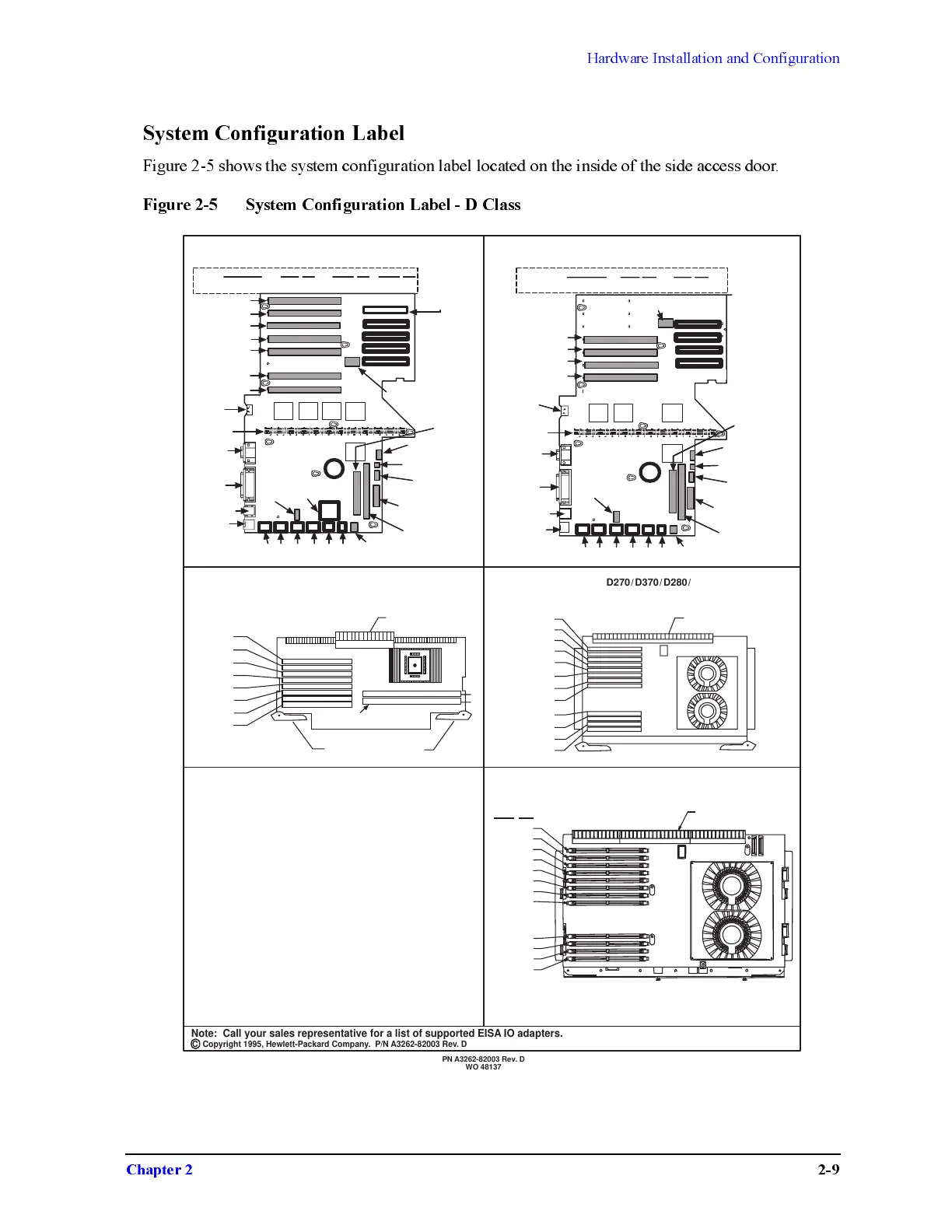

)LJXUH VKRZV WKH V\VWHP FRQILJXUDWLRQ ODEHO ORFDWHG RQ WKH LQVLGH RI WKH VLGH DFFHVV GRRU
)LJXUH 6\VWHP &RQILJXUDWLRQ /DEHO ' &ODVV
PN A3262-82003 Rev. D
WO 48137
C Copyright 1995, Hewlett-Packard Company. P/N A3262-82003 Rev. D
Note: Call your sales representative for a list of supported EISA IO adapters.
D270/D370/D280/D380
CPU / MEMORY BOARD
CPU–to–System–Board
Connector
Memory SIMM Loading
(Load SIMMs in pairs)
Load
Order
Slot
1
7
2
8
3
9
4
10
5
11
6
12
0A
3A
0B
3B
1A
4A
1B
4B
2A
5A
2B
5B
CPU Assembly Extractors
ADDITIONAL CACHE SLOTS
A
B
CPU Assembly Extractors
CPU–to–System–Board
Connector
Load
Order
Slot
Memory SIMM Loading
(Load SIMMs in pairs)
1
5
2
6
3
7
4
8
0A
2A
0B
2B
1A
3A
1B
3B
D220/D230/D320/D330 CPU/MEMORY BOARD
D390 CPU / MEMORY BOARD
7
3
8
4
3A
1A
3B
1B
1
9
2
10
5
11
6
12
0A
4A
0B
4B
2A
5A
2B
5B
Slot
Load
Order
Memory SIMM Loading
(Load SIMMs in pairs)
CPU–to–System–Board
Connector
HSC Turbo slot:
(not usable with
D320/D330)
HSC 1, slot 3
path 10/12
Remote Mgmt / Access
port card connector
Power Supply
connector
Parallel &
SE SCSI
RS-232
Console &
UPS
PS2 mouse
& keyboard
802.3 LAN
IDE floppy
connector
(internal)
TOC button
HSC 0, slot 0 (8/)0
(Access Port)
HSC 0, slot 3 (8/)12
HSC 0, slot 2 (8/)8
HSC 0, slot 1 (8/)4
battery
fan
connect
Front Panel
display
fan connect
hot swap detect
power switch
cable
D3xx System Board
CPU board EISA path HSC0 path HSC1 path
20/5/<slot#> <4*slot#> N/A
8/20/5/<slot#> 8/<4*slot#> 10/12
EISA slot 7 (8/)20/5/7
EISA slot 6 (8/)20/5/6
EISA slot 8 (8/)20/5/8
EISA slot 1 (8/)20/5/1
EISA slot 3 (8/)20/5/3
EISA slot 4 (8/)20/5/4
EISA slot 5 (8/)20/5/5
HSC Access Port slot
Power Supply connectors
SCSI
connector
(internal)
connector
hot swap
fan
D320/D330
D370/D380/D390
CPU board
connector
SCSI
connector
(internal)
hot swap detect
power switch
cable
Remote Mgmt / Access port
card (optional) connector
D2xx System Board
Parallel &
SE SCSI
RS-232
Console &
UPS
PS2 mouse
& keyboard
802.3 LAN
IDE floppy
connector
(internal)
TOC button
battery
Front Panel
display
connector
fan connect
fan connect
Power Supply connectors
CPU board EISA path HSC path
D200/D210/D220/D230 20/5/<slot#> <4*slot#>
D250/D260/D270/D280 8/20/5/<slot#> 8/<4*slot#>
EISA slot 1 (8/)20/5/1
EISA slot 2 (8/)20/5/2
EISA slot 3 (8/)20/5/3
EISA slot 4 (8/)20/5/4
HSC slot 0 (8/)0
(Access Port opt)
HSC slot 3 (8/)12
HSC slot 2 (8/)8
HSC slot 1 (8/)4
hot swap
fan
CPU board
connector
