&KDSWHU
+DUGZDUH ,QVWDOODWLRQ DQG &RQILJXUDWLRQ

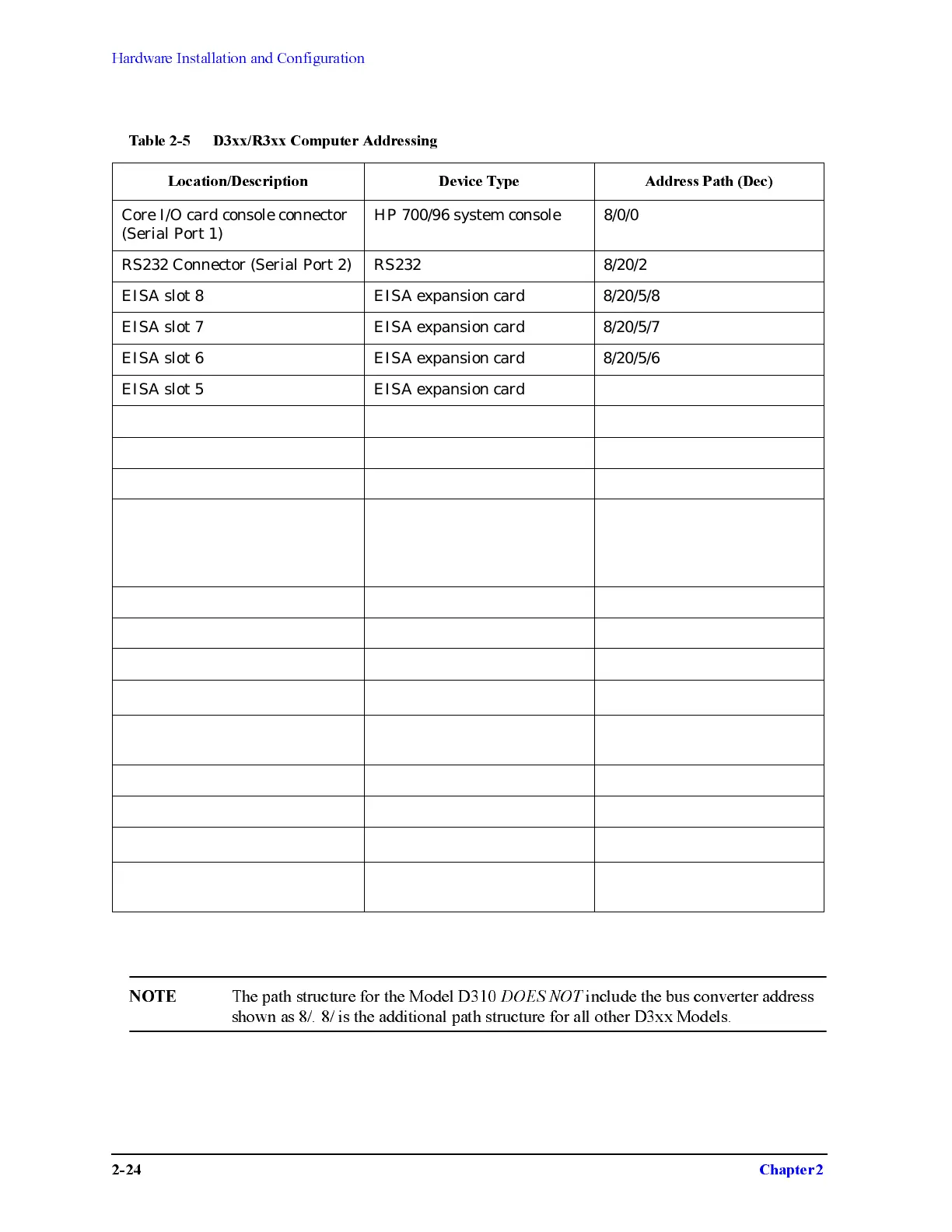

7DEOH '[[5[[ &RPSXWHU $GGUHVVLQJ
127(
7KH SDWK VWUXFWXUH IRU WKH 0RGHO '
'2(6 127
LQFOXGH WKH EXV FRQYHUWH U DGGUHVV
VKRZQ DV LV WKH DGGLWLRQDO SDWK VWUXFWXUH IRU DOO RWKHU '[[ 0RGHOV
/RFDWLRQ'HVFULSWLRQ 'HYLFH 7\SH $GGUHVV 3DWK 'HF
Core I/O card console connector
(Serial Port 1)
HP 700/96 system console 8/0/0
RS232 Connector (Serial Port 2) RS232 8/20/2
EISA slot 8 EISA expansion card 8/20/5/8
EISA slot 7 EISA expansion card 8/20/5/7
EISA slot 6 EISA expansion card 8/20/5/6
EISA slot 5 EISA expansion card 8/20/5/5
EISA slot 4 EISA expansion card 8/20/5/4
EISA slot 3 EISA expansion card 8/20/5/3
EISA slot 1 EISA expansion card 8/20/5/1
SE SCSI SE SCSI drive 8/16/5.n (n=0-6, 7 reserved
for SCSI controller, not
configurable.) Tape=0, CD=2,
Disk=6
802.3 LAN (10 base T) Appropriate LAN cable 8/16/6
Keyboard connector Graphics option keyboard 8/16/7
Mouse connector Graphics option mouse 8/16/8
IDE floppy connector
1
Floppy drive cable 8/16/1
HSC Turbo Slot (not usable with
PA7100 CPU) Graphics Console
HSC TURBO 10/12
HSC I/O expansion card, slot 3 HSC I/O card 8/12
HSC I/O expansion card, slot 2 HSC I/O card 8/8
HSC I/O expansion card, slot 1
F/W SCSI (Hot Swap)
1
8/4.n (n=0-15) Boot Disk=5
HSC I/O expansion card, slot 0 AP Console see Core I/O card console
connector
1.
D3xx only. Not available on R Class servers.
