HP A5120 EI Series Configuration Guide

98
To do…
Use the command…
Remarks
Enter system view
system-view
—
Configure the destination
multicast MAC address for BPDUs
bpdu-tunnel tunnel-dmac mac-
address
Optional
0x010F-E200-0003 by default.
NOTE:
For BPDUs to be recognized, the destination multicast MAC addresses configured for BPDU tunneling
must be the same on the edge devices on the service provider network.
BPDU tunneling configuration examples
BPDU tunneling for STP configuration example
Network requirements
As shown in Figure 29:
 CE 1 and CE 2 are edges devices on the geographically dispersed network of User A; PE 1 and PE
2 are edge devices on the service provider network.
 All ports that connect service provider devices and customer devices are access ports and belong to
VLAN 2. All ports that interconnect service provider devices are trunk ports and allow packets of any
VLAN to pass through.
 MSTP is enabled on User A’s network.
After the configuration, CE 1 and CE 2 must implement consistent spanning tree calculation across the
service provider network, and the destination multicast MAC address carried in BPDUs must be 0x0100-
0CCD-CDD0.

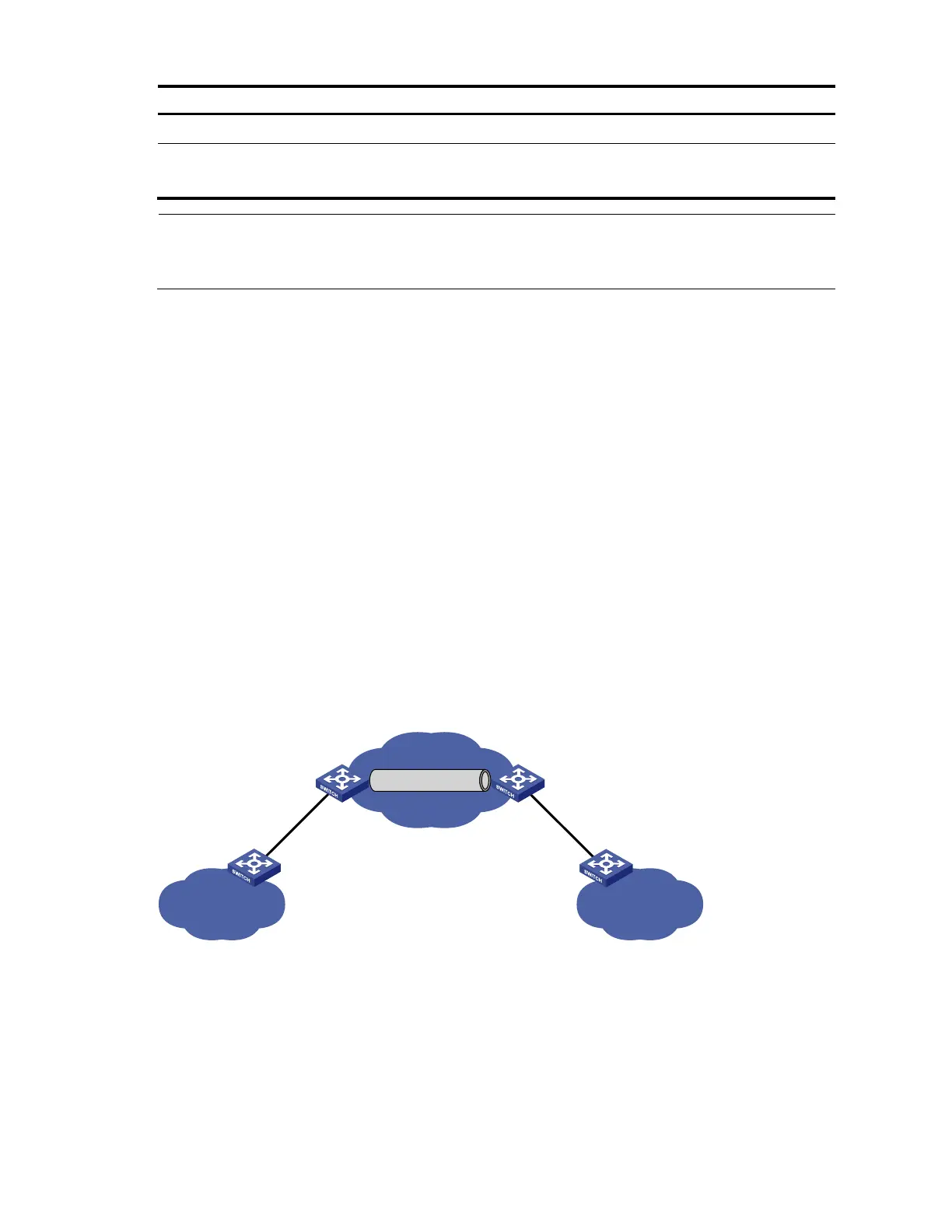

Figure 29 Network diagram for configuring BPDU tunneling for STP
ISP network
BPDU tunnel
User A network 1 User A network 2
CE 1 CE 2
PE 1 PE 2
GE1/0/1
VLAN 2
GE1/0/2
VLAN 2
Configuration procedure
1. Configure PE 1.
# Configure the destination multicast MAC address for BPDUs as 0x0100-0CCD-CDD0.
<PE1> system-view
[PE1] bpdu-tunnel tunnel-dmac 0100-0ccd-cdd0
# Create VLAN 2 and assign GigabitEthernet 1/0/1 to VLAN 2.
