141
Voice VLAN enabled port and its mode:
PORT VLAN MODE COS DSCP
--------------------------------------------------------------------
GigabitEthernet1/0/1 2 AUTO 6 46
GigabitEthernet1/0/2 3 AUTO 6 46
Manual voice VLAN assignment mode configuration example
Network requirements
As shown in Figure 43
Create VLAN 2 and configure it as a voice VLAN that permits only voice traffic to pass through.
The IP phones send untagged voice traffic. Configure GigabitEthernet 1/0/1 as a hybrid port.
Configure GigabitEthernet 1/0/1 to operate in manual voice VLAN assignment mode. Configure
GigabitEthernet 1/0/1 to allow voice traffic with an OUI address of 0011-2200-0000, a mask of
ffff-ff00-0000, and a description string of test to be forwarded to the voice VLAN.

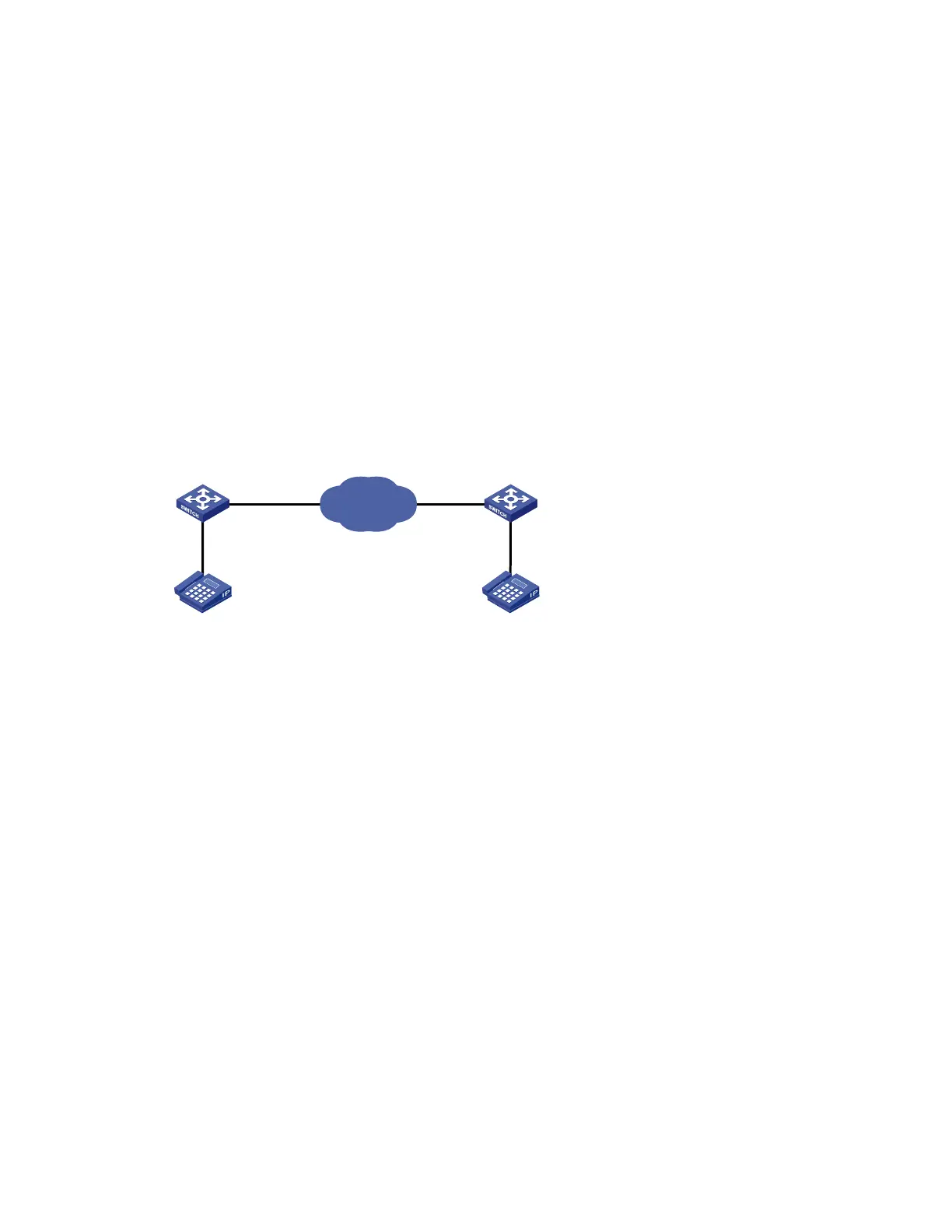

Figure 43 Network diagram for manual voice VLAN assignment mode configuration
Device A
Device B
GE1/0/1
GE1/0/1
VLAN 2
VLAN 2
010-1001
OUI: 0011-2200-0000
Mask: ffff-ff00-0000
0755-2002
Internet
Configuration procedure
# Configure the voice VLAN to operate in security mode. (Optional. A voice VLAN operates in security
mode by default.)
<DeviceA> system-view
[DeviceA] voice vlan security enable
# Add a recognizable OUI address 0011-2200-0000.
[DeviceA] voice vlan mac-address 0011-2200-0000 mask ffff-ff00-0000 description test
# Create VLAN 2.
[DeviceA] vlan 2
[DeviceA-vlan2] quit
# Configure GigabitEthernet 1/0/1 to operate in manual voice VLAN assignment mode.
[DeviceA] interface gigabitethernet 1/0/1
[DeviceA-GigabitEthernet1/0/1] undo voice vlan mode auto
# Configure GigabitEthernet 1/0/1 as a hybrid port.
[DeviceA-GigabitEthernet1/0/1]port link-type hybrid
# Configure the voice VLAN (VLAN 2) as the PVID of GigabitEthernet 1/0/1 and configure
GigabitEthernet 1/0/1 to permit the voice traffic of VLAN 2 to pass through untagged.
[DeviceA-GigabitEthernet1/0/1] port hybrid pvid vlan 2
