HP A5120 EI Series Configuration Guide

52
Displaying and maintaining isolation groups
To do…
Use the command…
Remarks
Display information about the isolation group
display port-isolate group [ | {
begin | exclude | include }
regular-expression ]
Available in any view
Port isolation configuration example
Network requirements
As shown in Figure 14:
 Hosts A, B, and C are connected to port GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and
GigabitEthernet 1/0/3 of Device.
 Device is connected to the Internet through GigabitEthernet 1/0/4.
 GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, GigabitEthernet 1/0/3, and GigabitEthernet
1/0/4 belong to the same VLAN.
Configure Device to enable Host A, Host B, and Host C to access the Internet when they are isolated from
one another.

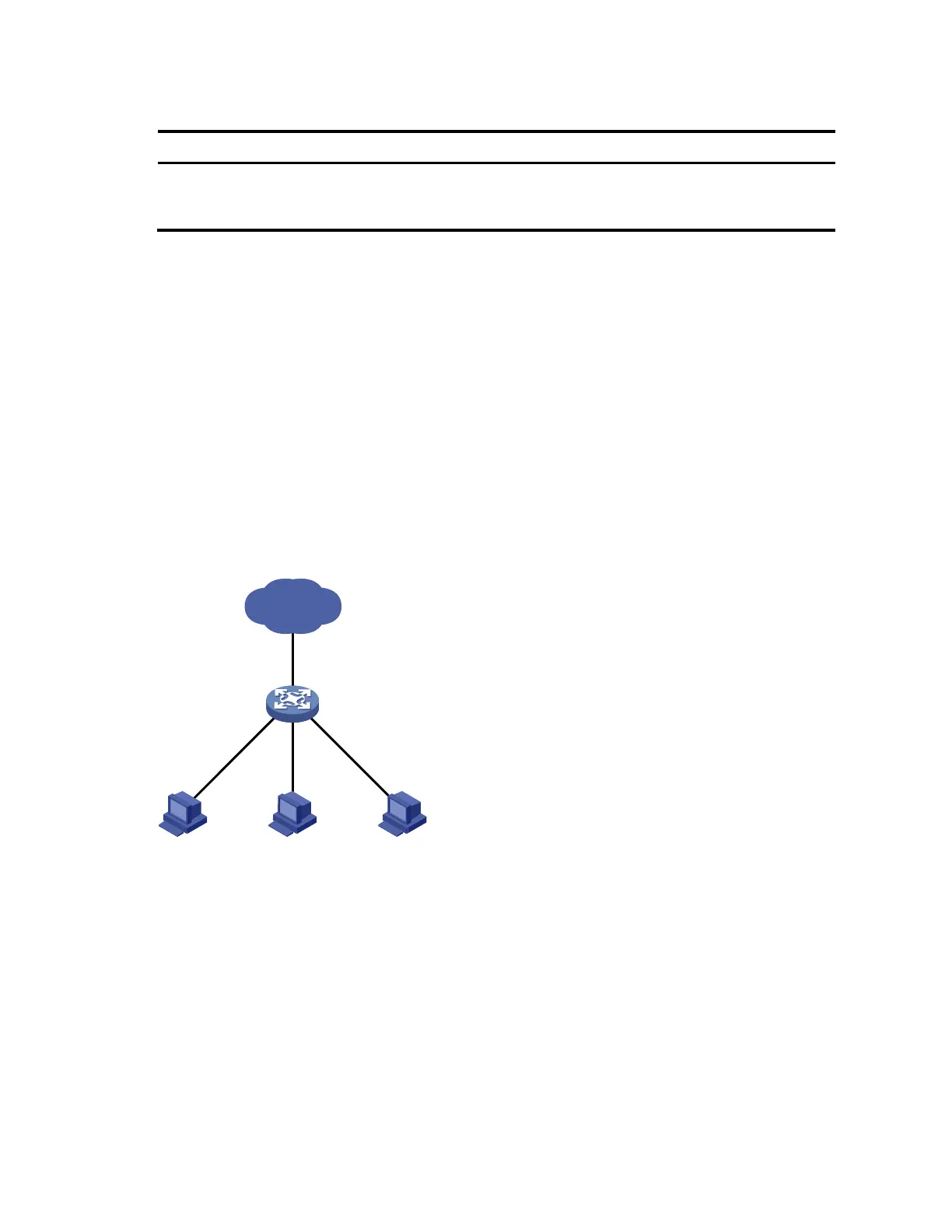

Figure 14 Network diagram for port isolation configuration
Internet
Host A Host B Host C
GE1/0/2
GE1/0/1
GE1/0/3
Device
GE1/0/4
Configuration procedure
# Assign ports GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3 to isolation
group 1.
<Device> system-view
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] port-isolate enable
[Device-GigabitEthernet1/0/1] quit
[Device] interface gigabitethernet 1/0/2
[Device-GigabitEthernet1/0/2] port-isolate enable
[Device-GigabitEthernet1/0/2] quit
[Device] interface gigabitethernet 1/0/3

HP A5120 EI Series Specifications

General

Uplink Ports	4 x SFP
Stacking	No
Management	CLI, Web, SNMP
Routing Protocols	RIP, OSPF
Power Supply	AC
MAC Address Table Size	16K
Dimensions	440 x 430 x 44 mm
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% non-condensing
Model	HP A5120-24G EI Switch (JG234A)
VLANs	4094
