HP A5120 EI Series Configuration Guide

46
The output shows that link aggregation group 1 is a load-shared Layer 2 static aggregation group, and it
contains three Selected ports.
# Display the global link-aggregation load-sharing criteria on Device A.
[DeviceA] display link-aggregation load-sharing mode
Link-Aggregation Load-Sharing Mode:
destination-mac address, source-mac address
The output shows that all link aggregation groups created on the device perform load sharing based on
source and destination MAC addresses.
Layer 2 dynamic aggregation configuration example
Network requirements
As shown in Figure 12:
 Device A and Device B are connected through their respective Layer 2 Ethernet interfaces
GigabitEthernet 1/0/1 through GigabitEthernet 1/0/3.
 Configure a Layer 2 dynamic link aggregation group on Device A and Device B, respectively.
Enable VLAN 10 at one end of the aggregate link to communicate with VLAN 10 at the other end,
and VLAN 20 at one end to communicate with VLAN 20 at the other end.
 Enable traffic to be load-shared across aggregation group member ports based on source and
destination MAC addresses.

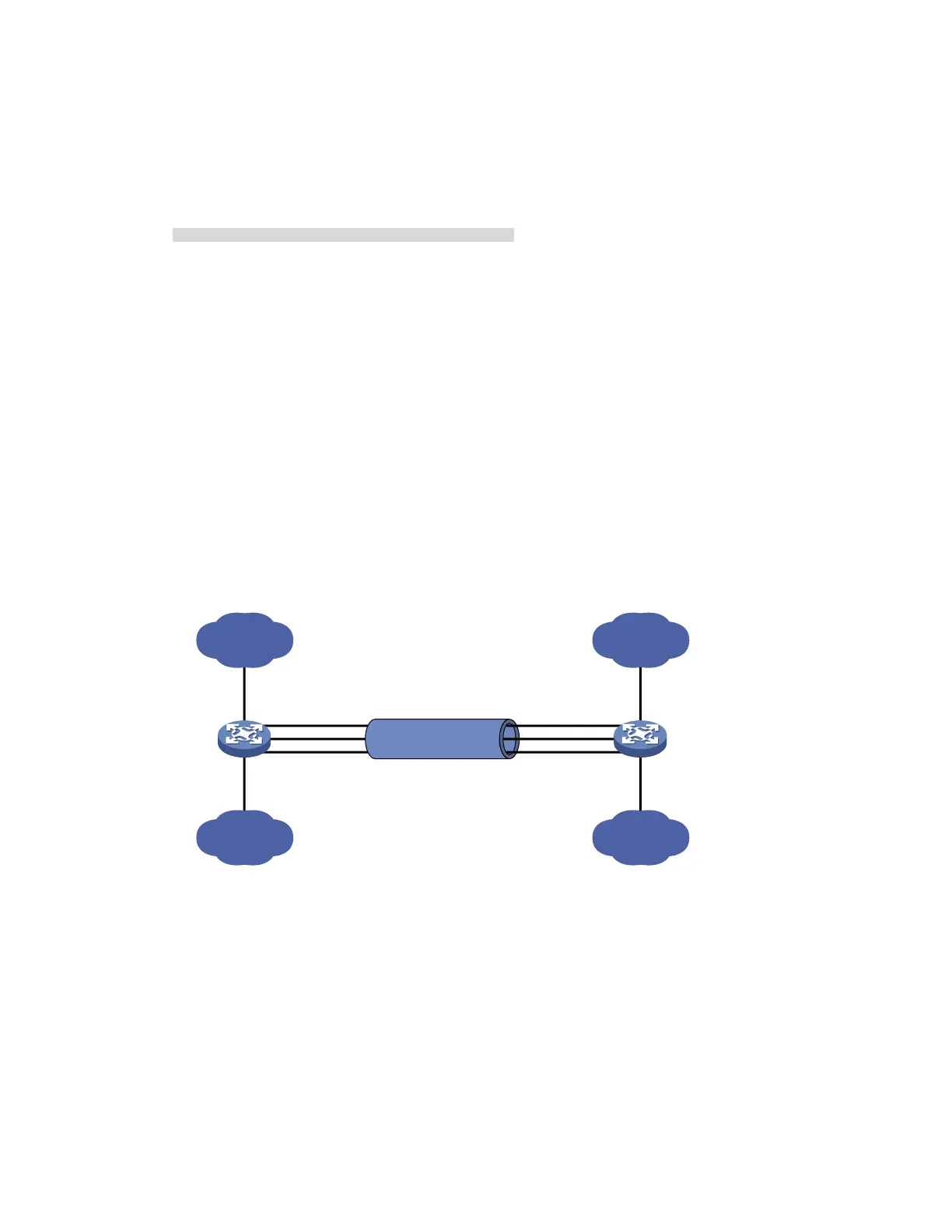

Figure 12 Network diagram for Layer 2 dynamic aggregation
GE1/0/2
GE1/0/1
GE1/0/3
Link aggregation 1
GE1/0/2
GE1/0/1
GE1/0/3
BAGG1 BAGG1
Device A Device B
VLAN 10
VLAN 20
GE1/0/4
GE1/0/5
VLAN 10
VLAN 20
GE1/0/4
GE1/0/5
Configuration procedure
1. Configure Device A
# Create VLAN 10, and assign port GigabitEthernet 1/0/4 to VLAN 10.
<DeviceA> system-view
[DeviceA] vlan 10
[DeviceA-vlan10] port gigabitethernet 1/0/4
[DeviceA-vlan10] quit
# Create VLAN 20, and assign port GigabitEthernet 1/0/5 to VLAN 20.
[DeviceA] vlan 20

HP A5120 EI Series Specifications

General

Uplink Ports	4 x SFP
Stacking	No
Management	CLI, Web, SNMP
Routing Protocols	RIP, OSPF
Power Supply	AC
MAC Address Table Size	16K
Dimensions	440 x 430 x 44 mm
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% non-condensing
Model	HP A5120-24G EI Switch (JG234A)
VLANs	4094
