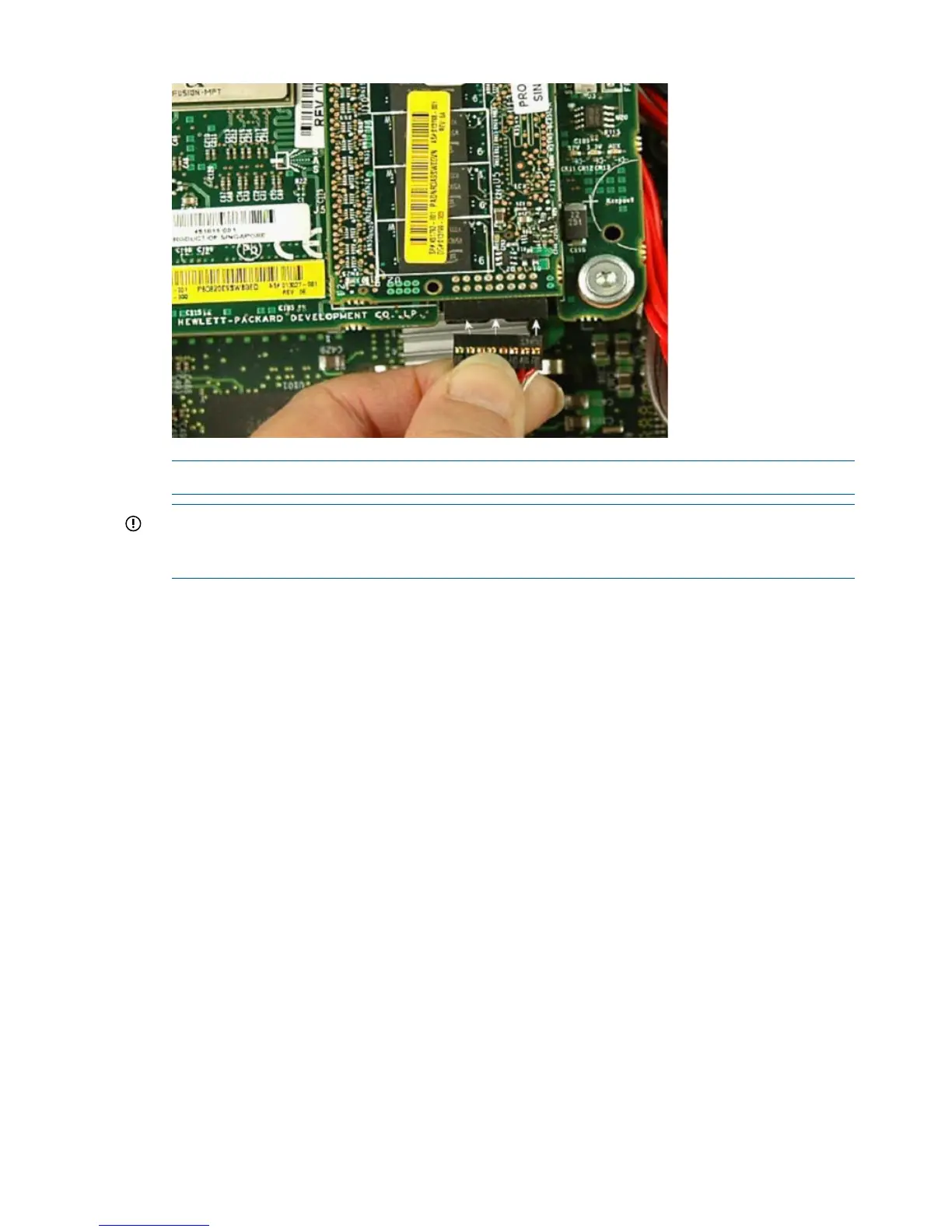

Figure 57 Attaching the Battery Cable
NOTE: Only use the 24 inch BBWC cable.
IMPORTANT: The BBWC battery must remain connected to the cache module to preserve
the data when removing the cache module to transfer data. Therefore, route the BBWC cable
so that the cache module and battery can be removed together.
4. If the controller is in mezzanine slot 1 or 2 route the cable along the following path:
a. Under the CPU 0 power pod wires
b. Along the rear of the server blade
c. Inside the two mezzanine posts near the rear chassis plug
d. Outside all other mezzanine card posts
128 Removing and Replacing Components
