IMPORTANT: Make sure the front display panel connector fully seats into the system board
connector. If the connector is not fully seated, the server blade can have intermittent failures.
See Figure 82.

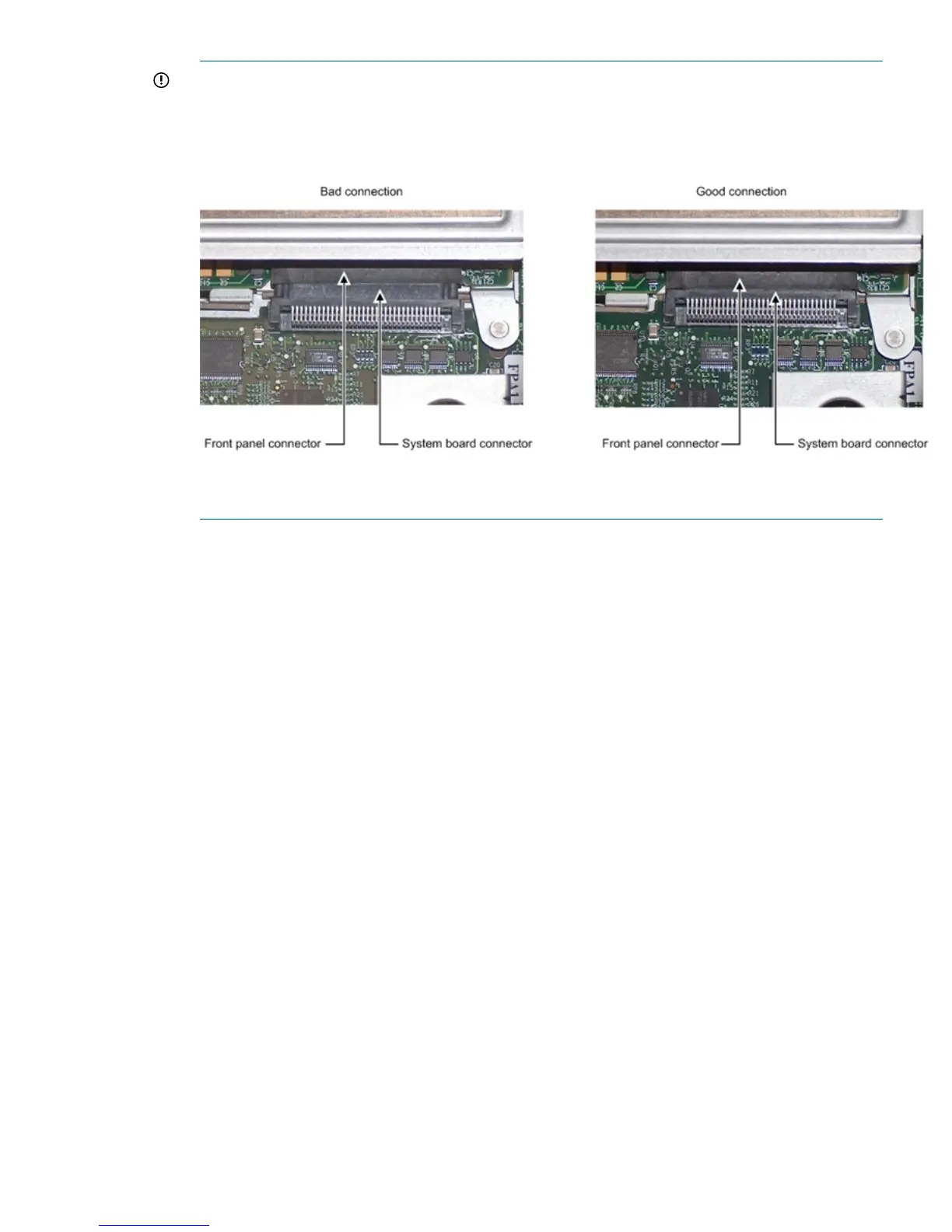

Figure 82 System Board / Front Panel Connection
In Figure 1–Bad connection, the connector is not properly seated. In Figure 2–Good connection,
the connector is properly seated.
6. Install the TPM.
See “Replacing the TPM” (page 141).
7. Install the air baffles.
See Figure 79 (page 143).
8. Install the mezzanine card or cards.
See “Replacing a Mezzanine Card” (page 124).
9. Install the SAS backplane.
See “Installing the SAS Backplane” (page 120).
10. Install the memory DIMMs.
See “Replacing a DIMM” (page 115).
11. Install the processors.
See “Installing a Processor” (page 117).
12. Install the hard disk drives.
See “Replacing a SAS Disk Drive” (page 109).
13. Install the access panel.
See “Replacing the Server Blade Access Panel” (page 112).
14. Install the server blade into the enclosure.
See “Replacing the Server Blade in the Enclosure” (page 111).
Removing and Replacing the System Board 145
