2. Use the down arrow on the front display panel to highlight Blade or Port Info.

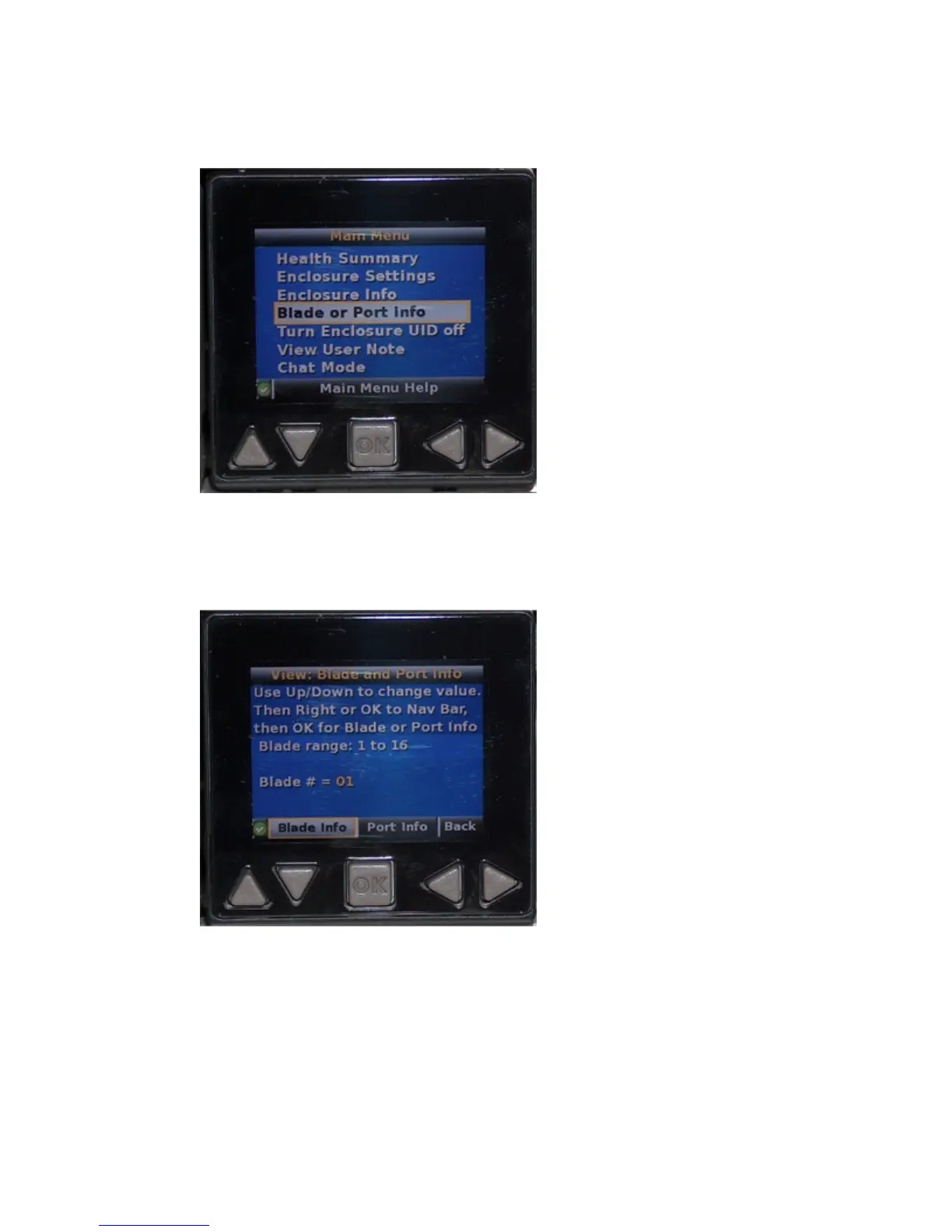

Figure 22 shows the Blade or Port Info selection highlighted on Main Menu of the front display
panel.
Figure 22 Main Menu of the Front Display Panel
3. Press OK. The View Blade and Port Info screen displays on the front display panel.
See Figure 23.
Figure 23 The View Blade and Port Info Screen
4. Using the left/right arrows, highlight Blade Info on the bottom of the front display panel.
5. Follow the on-screen directions to select the appropriate server blade, and press OK. The View
Blade Info screen displays. See Figure 24.
Accessing the Integrated Lights Out 2 Management Processor 41
