2. Turn the product on its side. Remove one screw (callout 1).
NOTE: In this figure the gear cover is shown removed for clarity. Do not remove the gear cover
yet. The gears behind the cover are not captive and can easily be dislodged if the cover is
removed at this time.

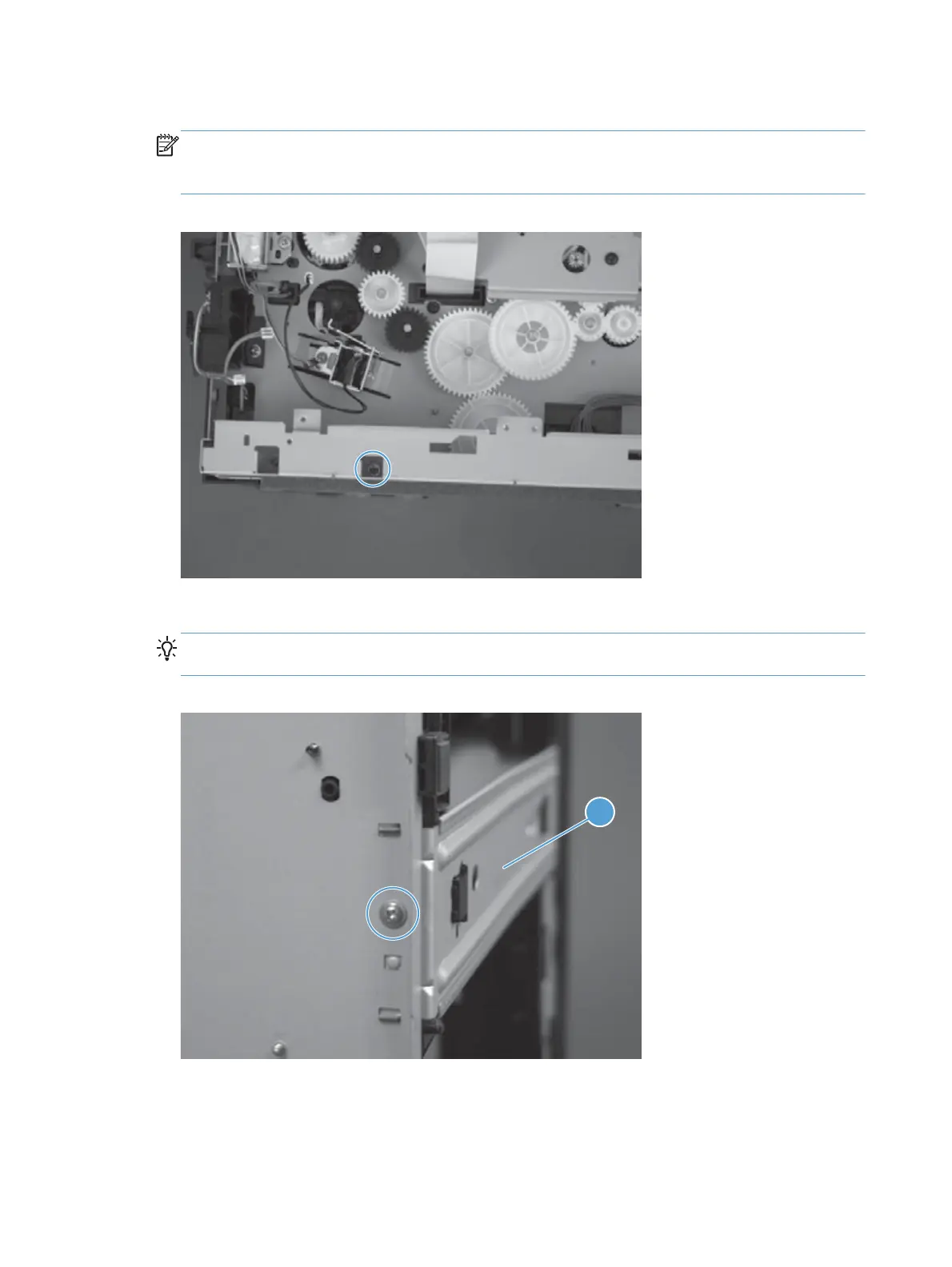

Figure 1-207 Remove the Tray 2 paper pickup assembly (1 of 10)
3. Remove one screw (callout 1), and then remove the base plate (callout 2).
Reinstallation tip Be sure to correctly align the base plate. It should match the base plate at
the rear of the product.
Figure 1-208 Remove the Tray 2 paper pickup assembly (2 of 10)
