4. Remove one screw (callout 1), and then carefully remove the right-side guide (callout 2).
CAUTION: Remove carefully. The solenoid and cable remain attached to the guide during
removal.

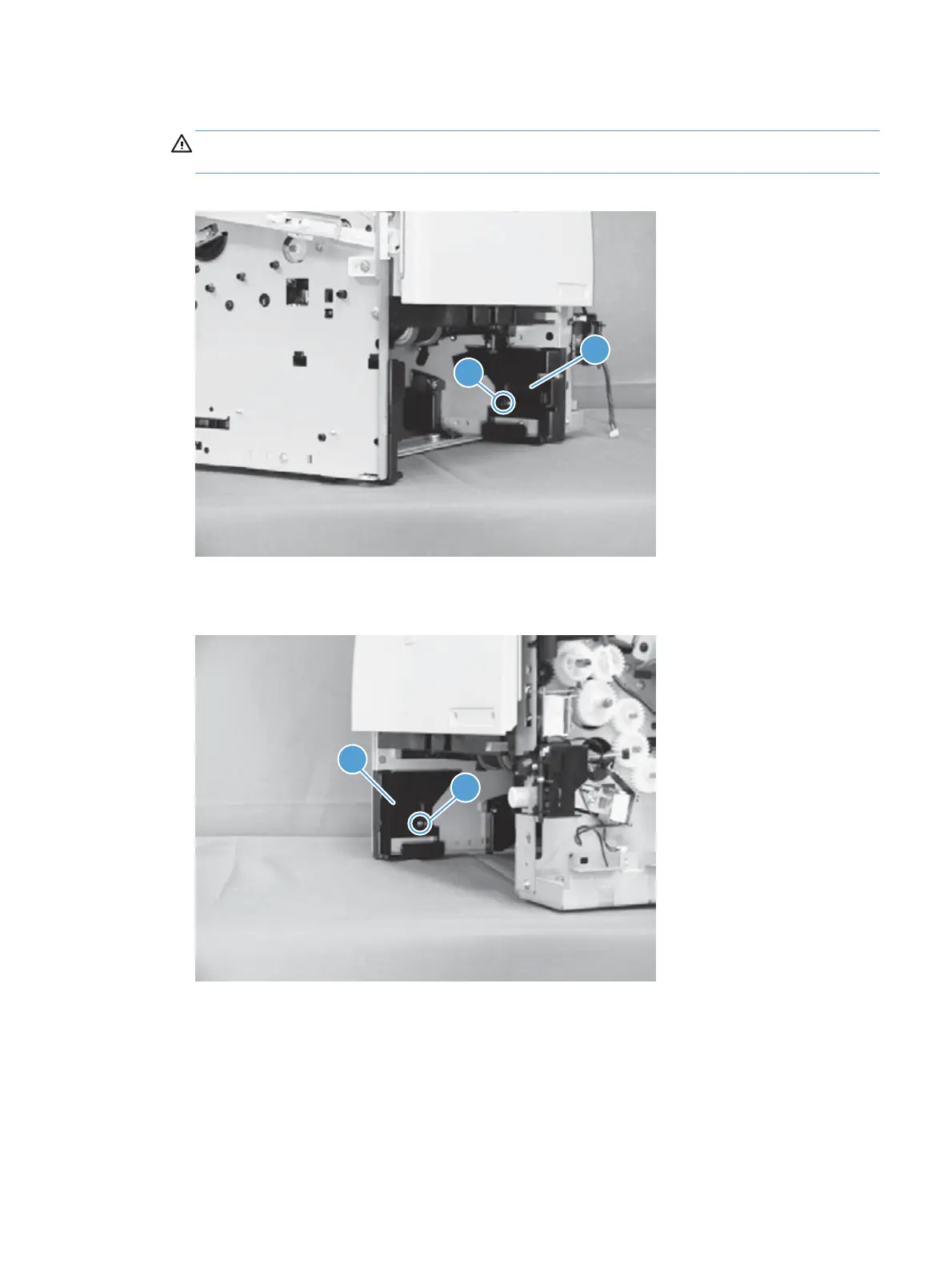

Figure 1-209 Remove the Tray 2 paper pickup assembly (3 of 10)
1
2
5. Remove one screw (callout 1), and then remove the left-side guide (callout 2).
Figure 1-210 Remove the Tray 2 paper pickup assembly (4 of 10)
1
2
ENWW
Removal and replacement procedures
139
