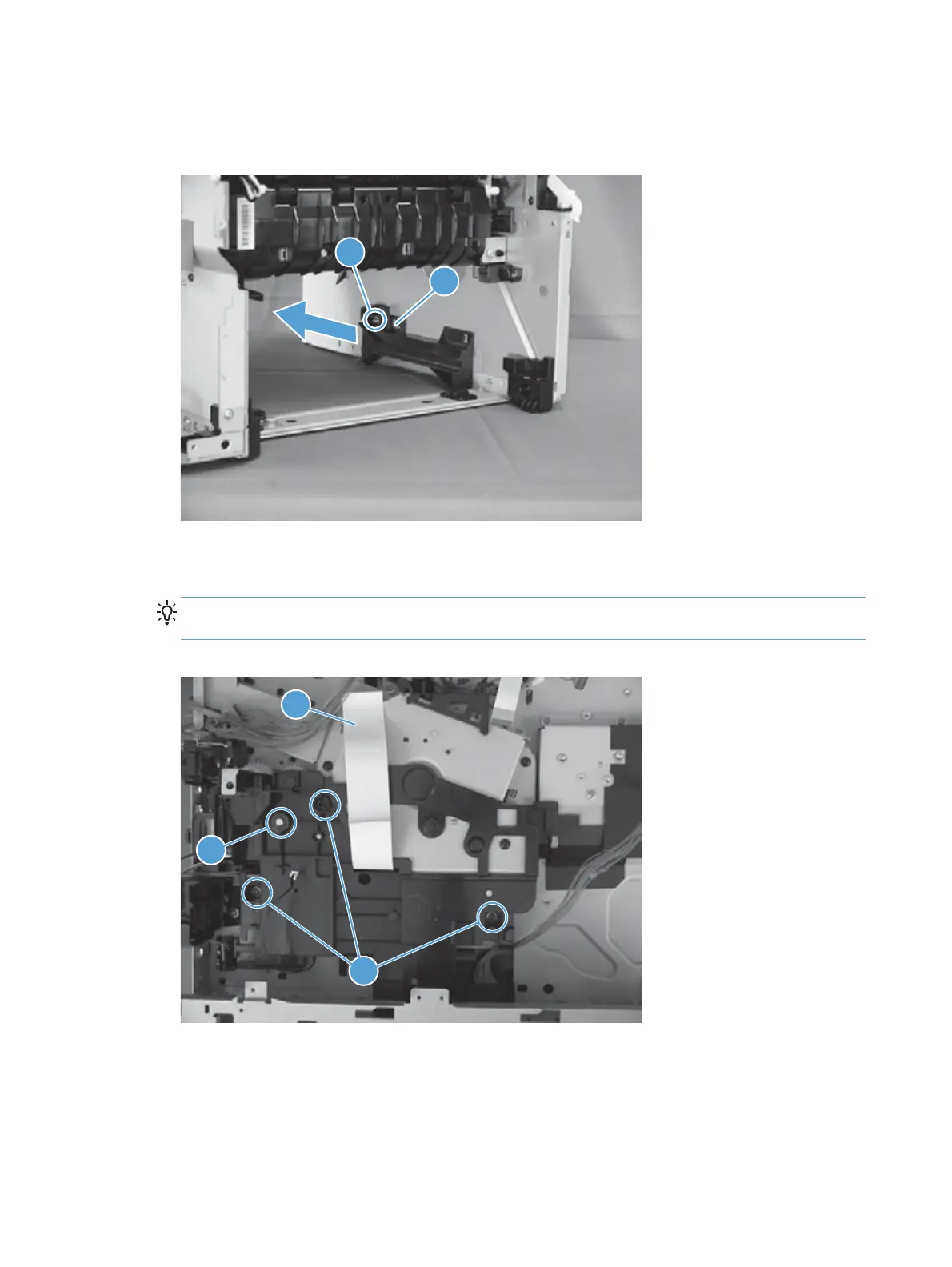

6. Remove one screw (callout 1), release one tab (callout 2) and then slide the guide toward the front
of the product to release it. Remove the guide.
Figure 1-211 Remove the Tray 2 paper pickup assembly (5 of 10)
1
2
7. Put the product on its side so that the gear cover faces up. Remove three screws (callout 1) and the
gear cover.
Reinstallation tip Note the location of the rod (callout 3) and the FFC (callout 2) for
reinstallation.
Figure 1-212 Remove the Tray 2 paper pickup assembly (6 of 10)
2
1
3
140 Chapter 1 Removal and replacement ENWW
