HP M525

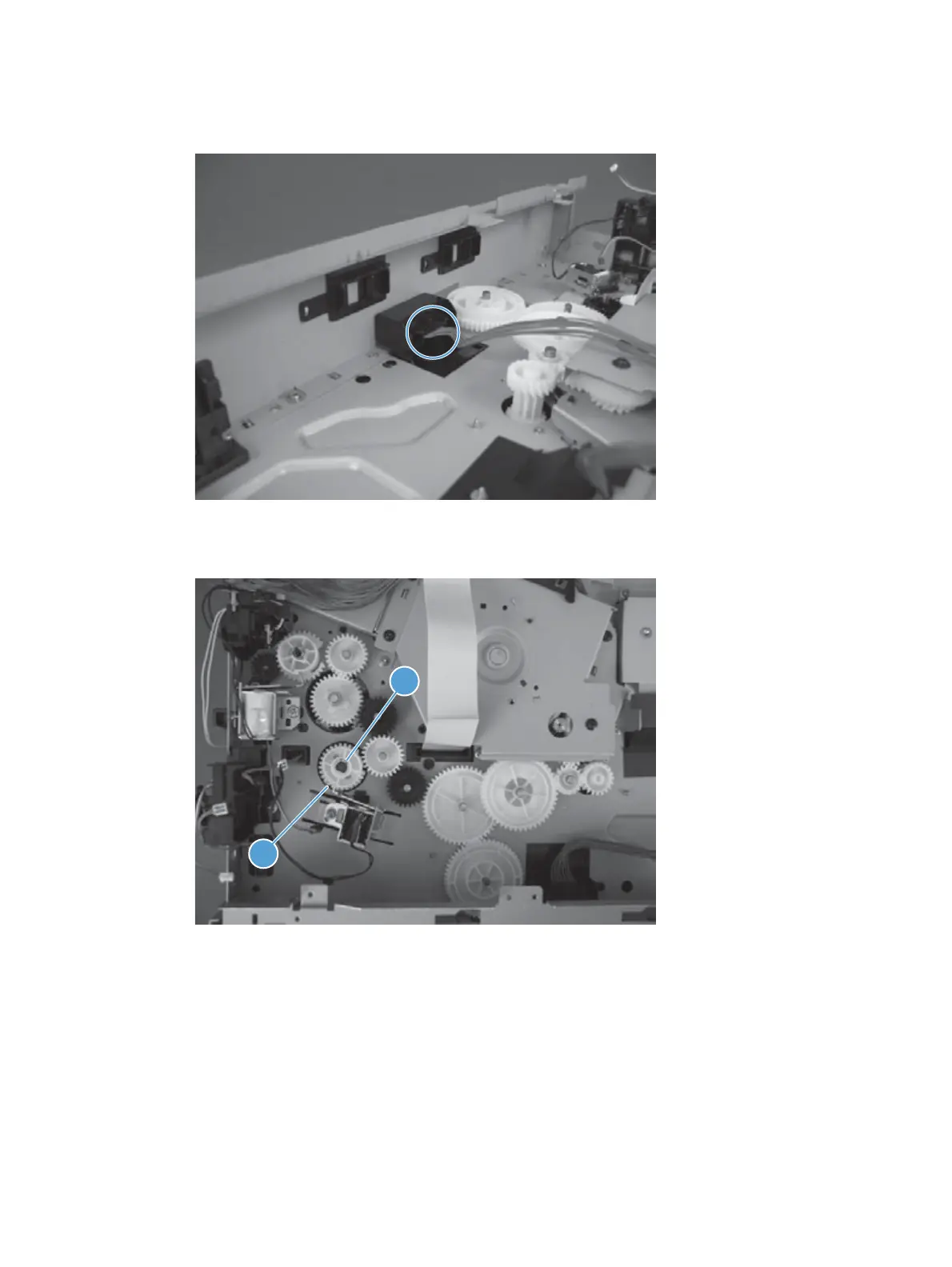

8. Disconnect one connector.
Figure 1-213 Remove the Tray 2 paper pickup assembly (7 of 10)
9. Release one tab (callout 1), and then remove one gear (callout 2).
Figure 1-214 Remove the Tray 2 paper pickup assembly (8 of 10)
1
2
ENWW
Removal and replacement procedures
141
