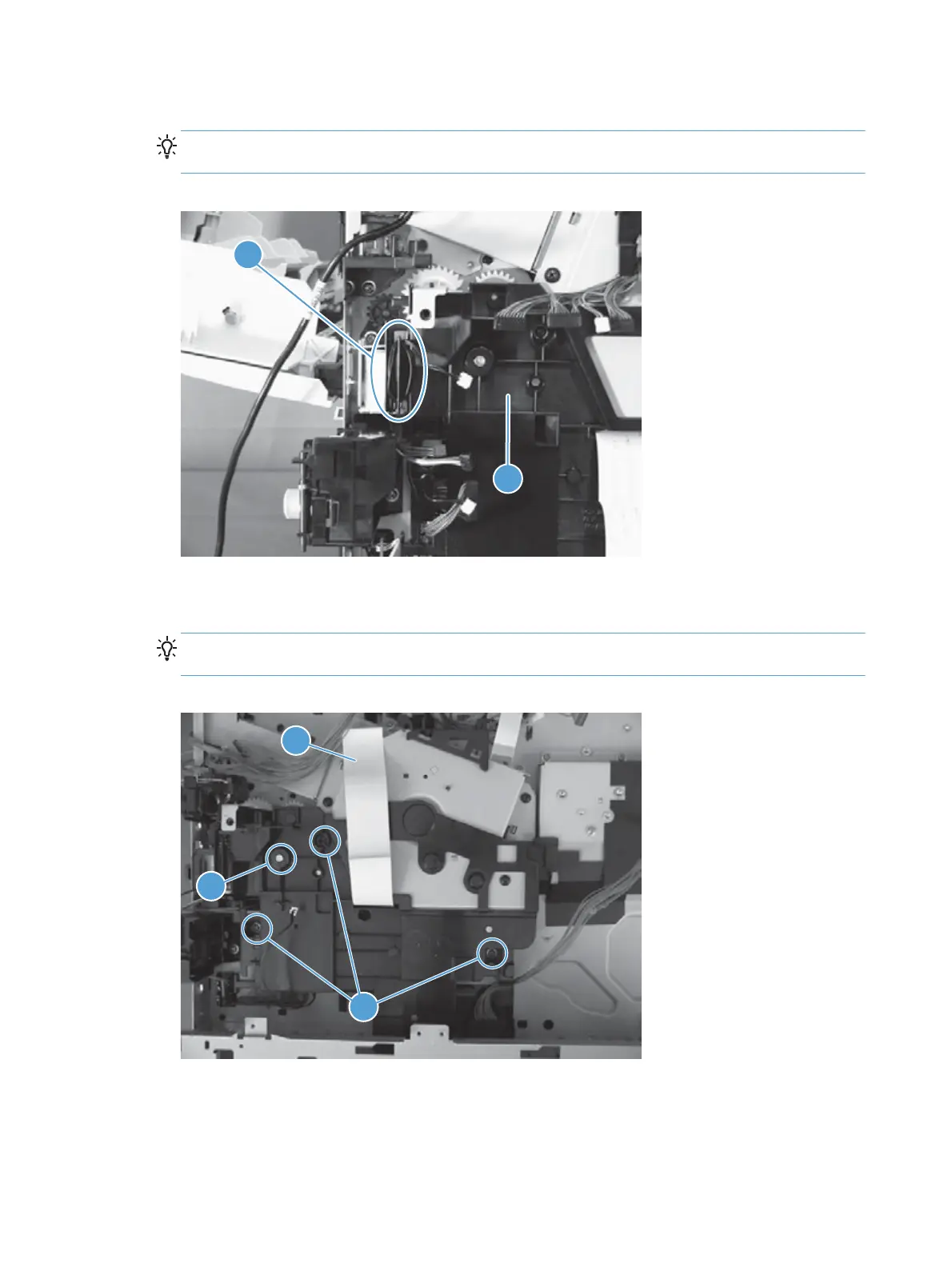

2. Carefully unwind the wire harness (callout 1) from the retainer on the gear cover (callout 2).
Reinstallation tip When you reinstall the gear cover, make sure that you wrap the solenoid-
wire harness around the retainer one and one-half times in a clockwise direction.
Figure 1-217 Tray 1 or Tray 2 pickup solenoid (2 of 4)
1
2
3. Put the product on its side so that the gear cover faces up. Remove three screws (callout 1) and the
gear cover.
Reinstallation tip Note the location of the rod (callout 3) and the FFC (callout 2) for
reinstallation.
Figure 1-218 Tray 1 or Tray 2 pickup solenoid (3 of 4)
2
1
3
144 Chapter 1 Removal and replacement ENWW
