4. For the Tray 2 pickup solenoid: Remove one screw (callout 1), and then remove the solenoid
(callout 2).
For the Tray 1 pickup solenoid: Remove one screw (callout 3), and then remove the solenoid
(callout 4).

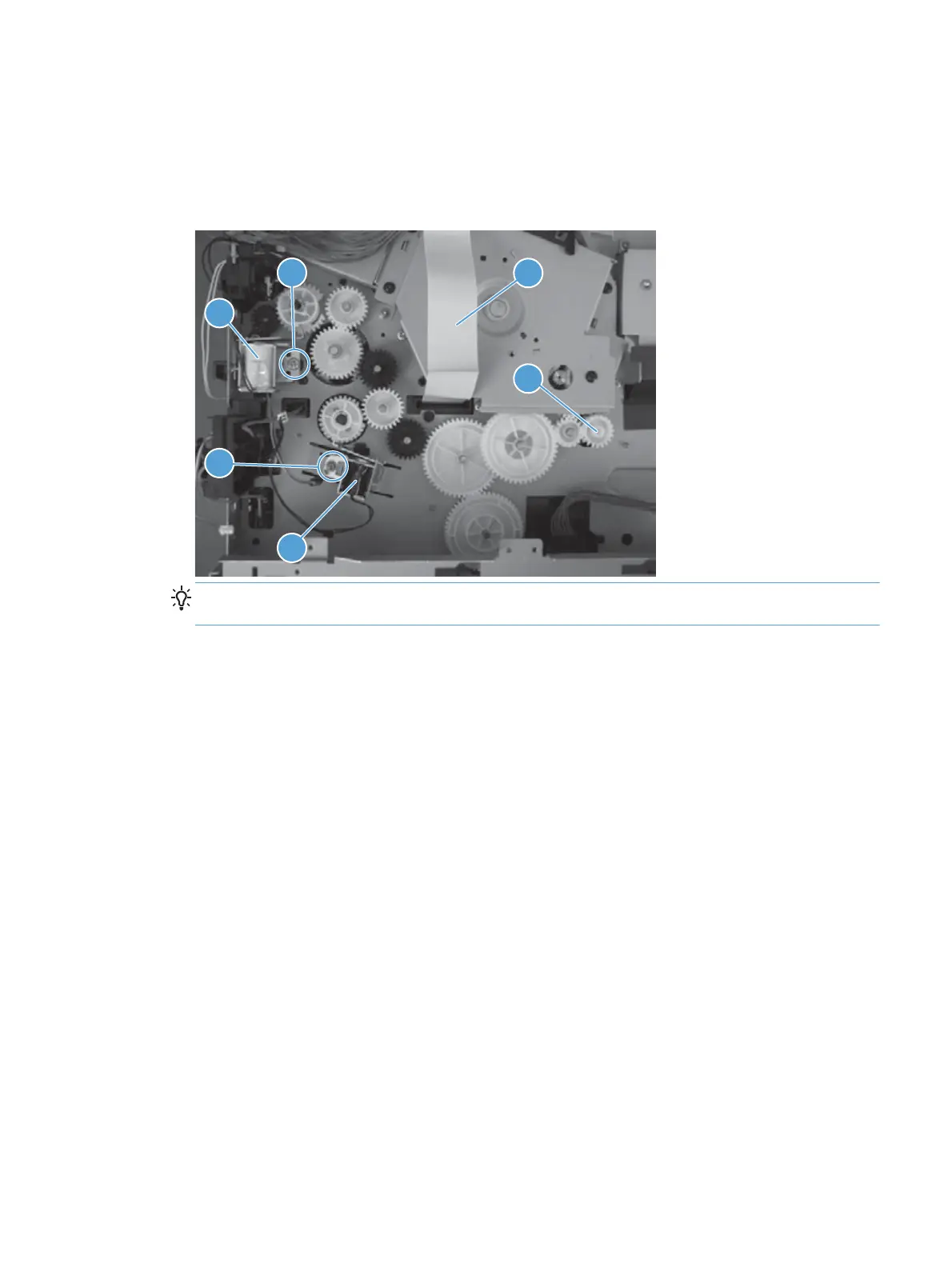

Figure 1-219 Tray 1 or Tray 2 pickup solenoid (3 of 3)
6
1
3
4
5
2
TIP: Thread the FFC (callout 6) through the gear cover when reinstalling and make sure to
reinstall the gear (callout 5) if it becomes dislodged.
ENWW
Removal and replacement procedures
145
