2.

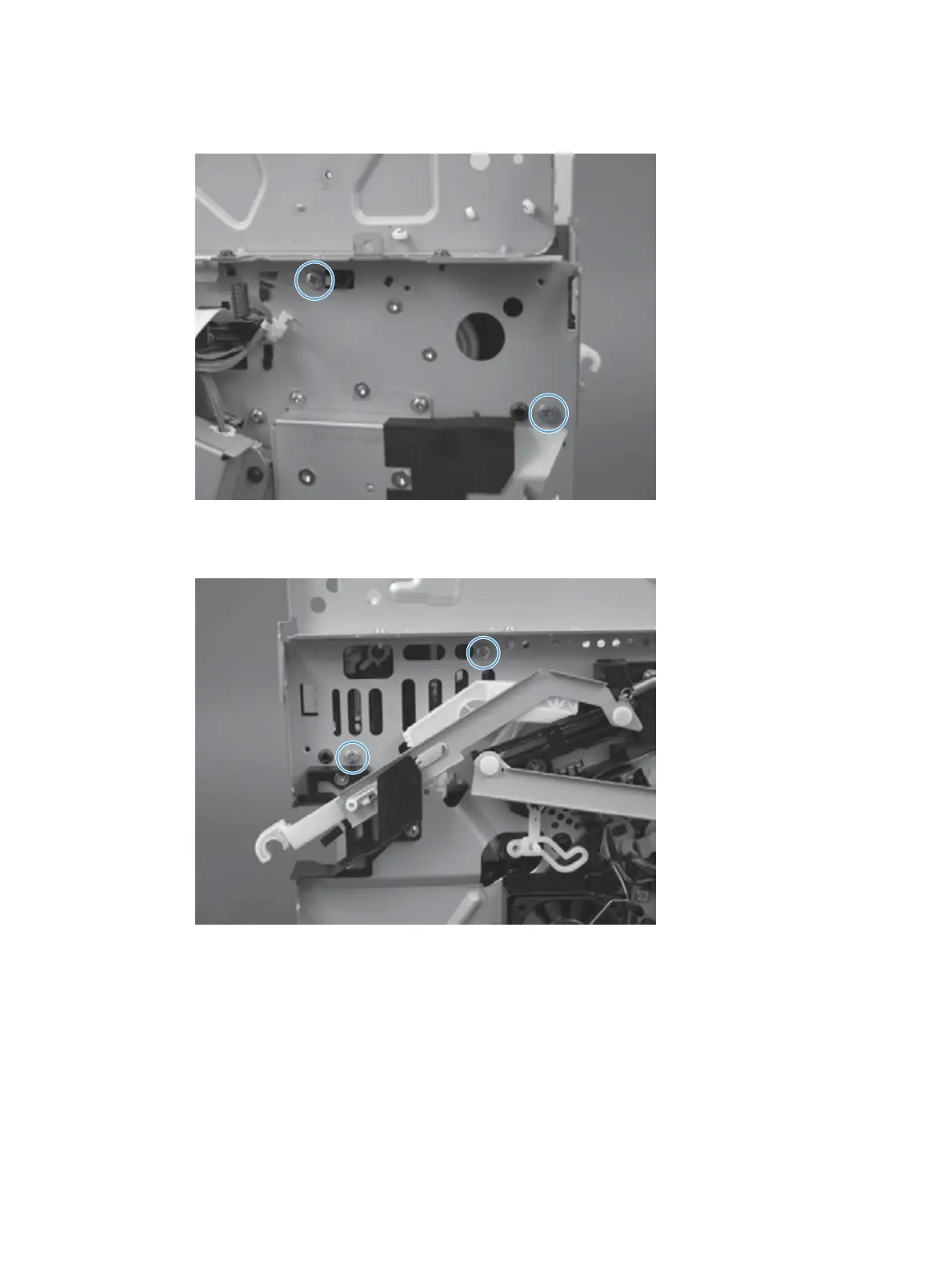

On the right side of the product, remove two screws.
Figure 1-221
Remove the p
endulum assembly
3.
On the left side of the product, r
emove two screws.
Figure 1-222
Remove the p
endulum assembly
ENWW
Removal and replacement proc
edures
149
