4. Release four wire harness holders from the chassis and then rotate the output bin roller assembly
up to expose the pendulum assembly.
TIP: Use needle nose pliers to release the wire harness holders.

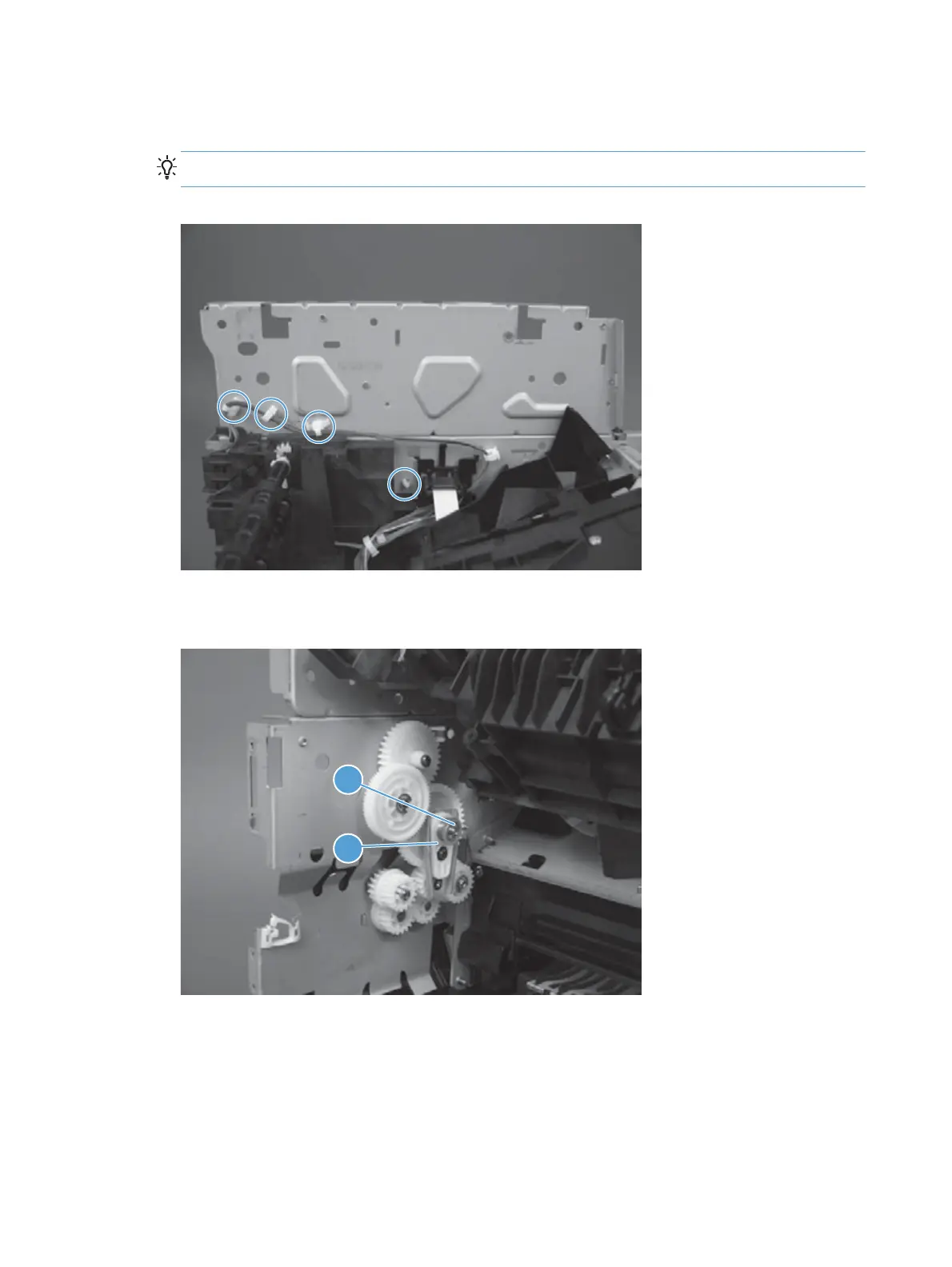

Figure 1-223 Remove the pendulum assembly
5. Remove one e-clip (callout 1) and the assembly (callout 2).
Figure 1-224 Remove the pendulum assembly
1
2
150 Chapter 1 Removal and replacement ENWW
