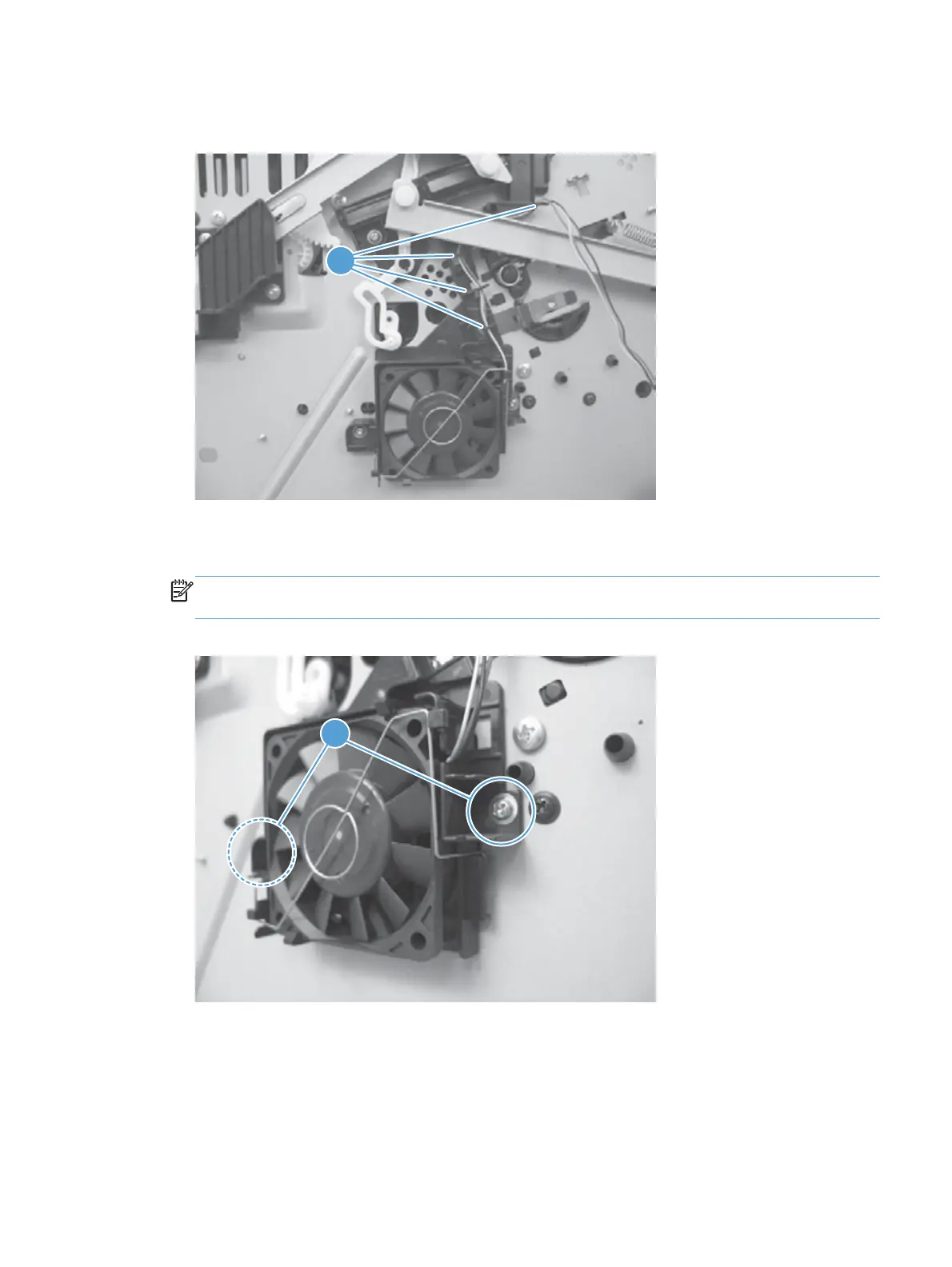

4. Release the wire harness from the retainers (callout 1).
Figure 1-227 Removing the sub fan and fan duct (3 of 5)
1
5. To remove the fan and duct: Remove two screws (callout 1), and then carefully remove the
fan and duct.
NOTE: If necessary, release the metal static clip, release two tabs and separate the fan from the
duct.
Figure 1-228 Remove the sub fan and fan duct (4 of 5)
1
ENWW
Removal and replacement procedures
153
