6. To remove the fan only: Release the metal static clip, release two tabs (callout 1), and then
remove the sub fan.
Reinstallation tip If you install a replacement sub fan, the air must flow into the product.
Arrows embossed on the fan frame indicate air flow direction.

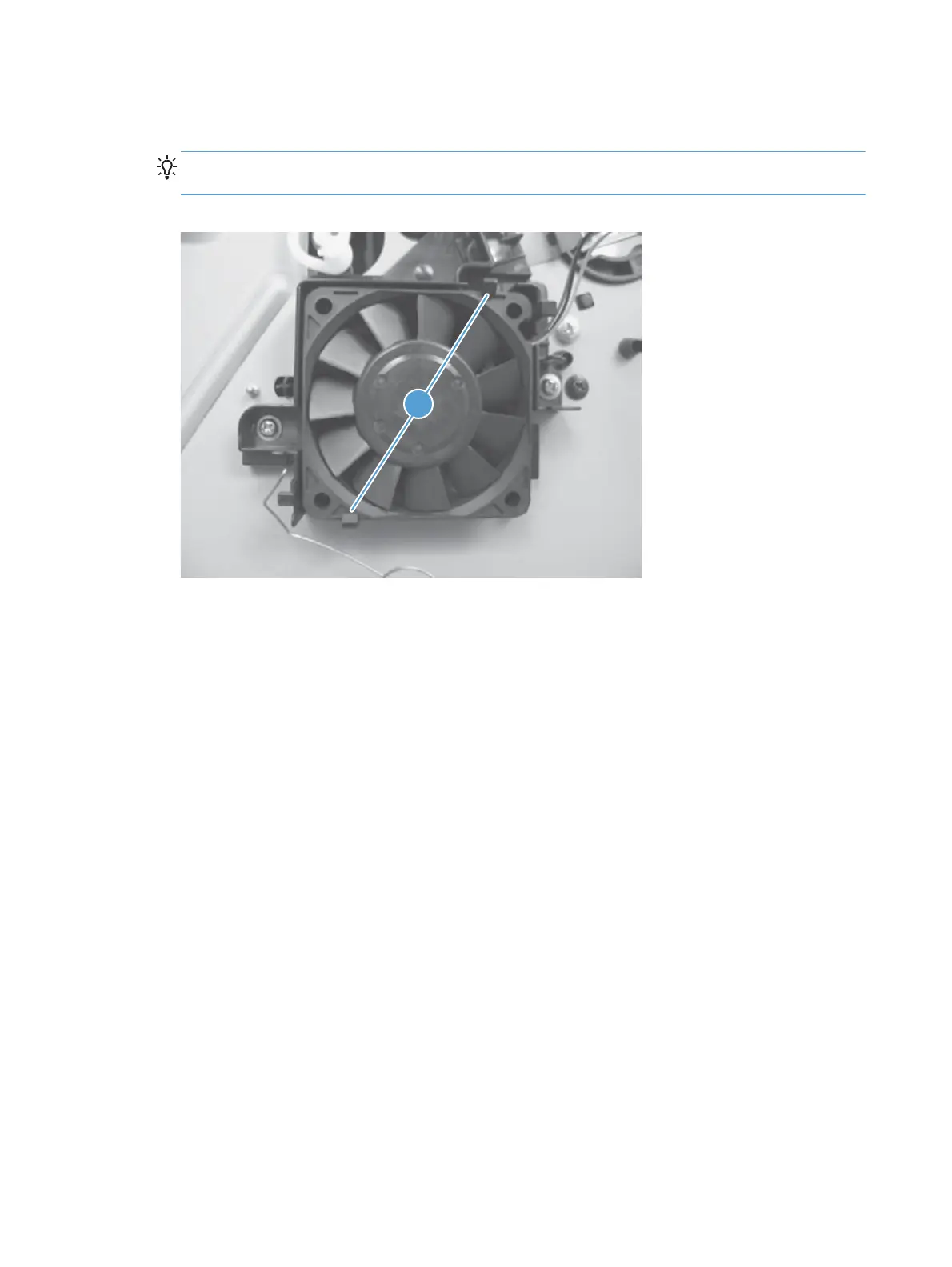

Figure 1-229 Remove the sub fan and fan duct (5 of 5)
1
154 Chapter 1 Removal and replacement ENWW
