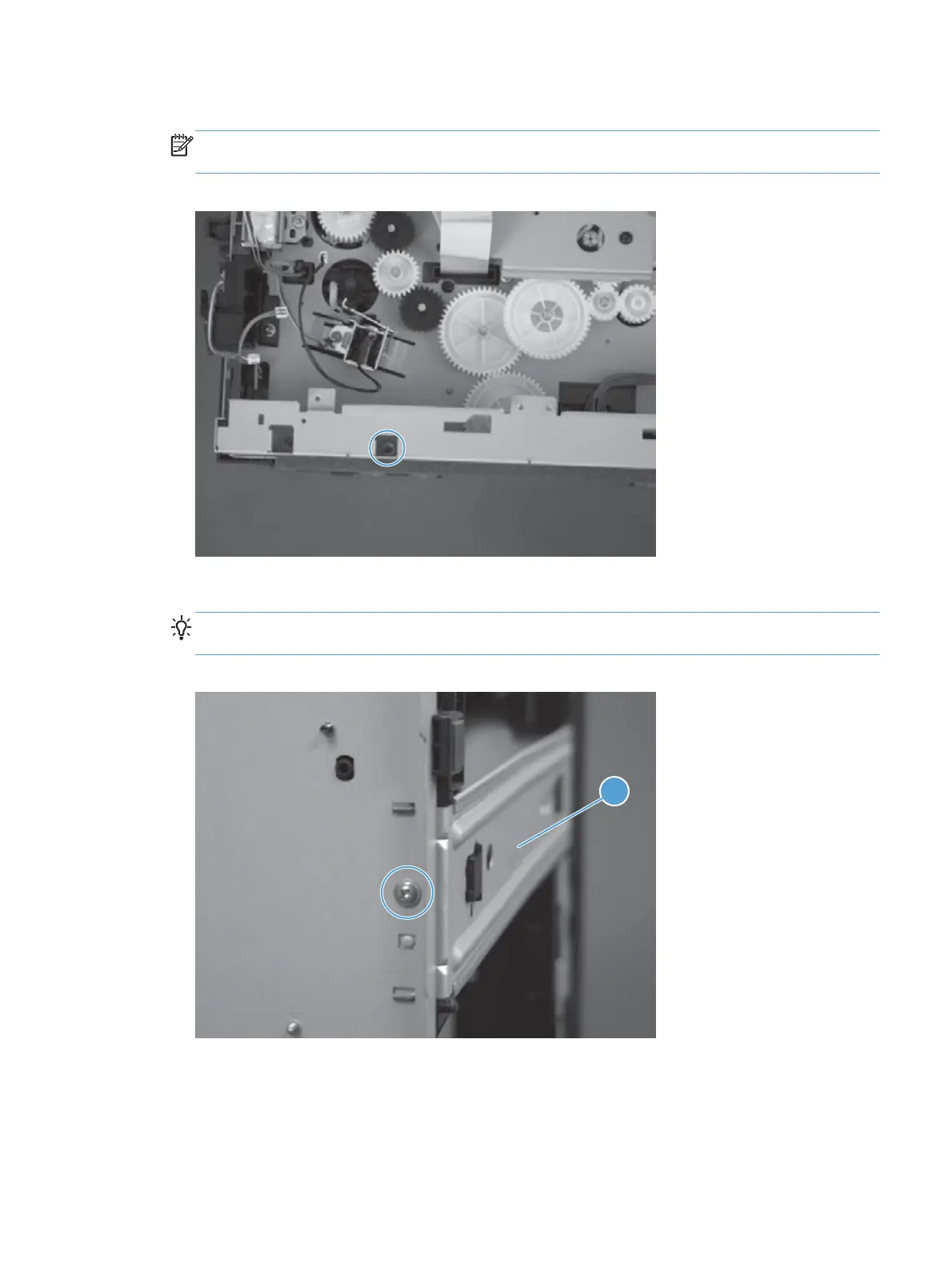

2. Place the product on its side with the gear cover facing up. Remove one screw (callout 1).
NOTE: In this figure the gear cover is shown removed for clarity. Do not remove the gear cover.
The gears behind the cover are not captive and can easily be dislodged if the cover is removed.
Figure 1-234 Remove the HVPS (1 of 11)
3. Place the product on its rear side. Remove one screw, and then remove the base plate (callout 2).
Reinstallation tip Be sure to correctly align the base plate. It should match the base plate at
the rear of the product.
Figure 1-235 Remove the HVPS (2 of 11)
