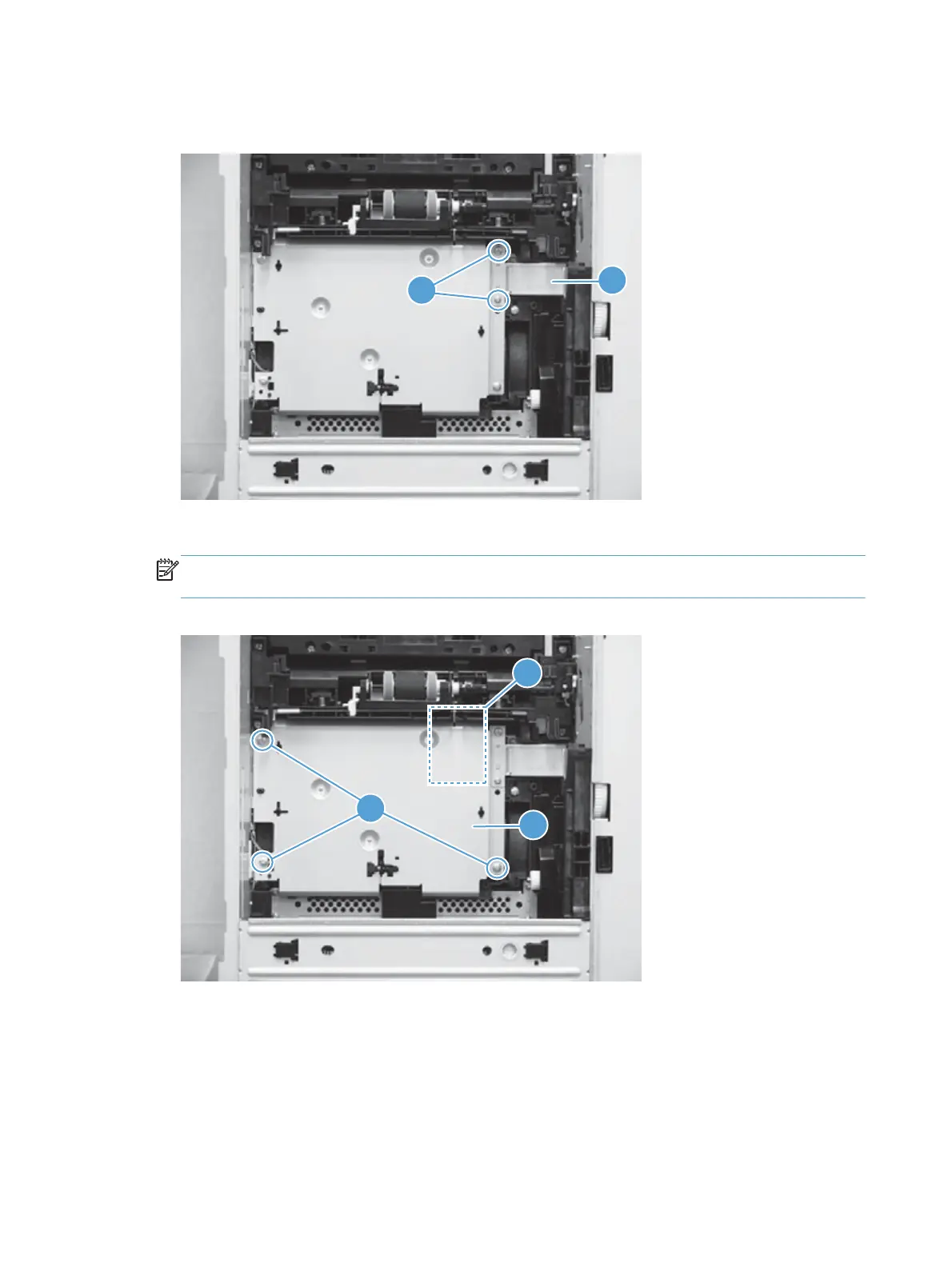

12. Remove two screws (callout 1), and then remove the plate (callout 2).
Figure 1-244 Remove the HVPS (9 of 11)
2
1
13. Remove three screws (callout 1), and then remove the HVPS (callout 2).
NOTE: Disconnect three connectors and one FFC (callout 3) on the HPVS as you separate the it
from the product.
Figure 1-245 Remove the HVPS (10 of 11)
2
1
3
164 Chapter 1 Removal and replacement ENWW
