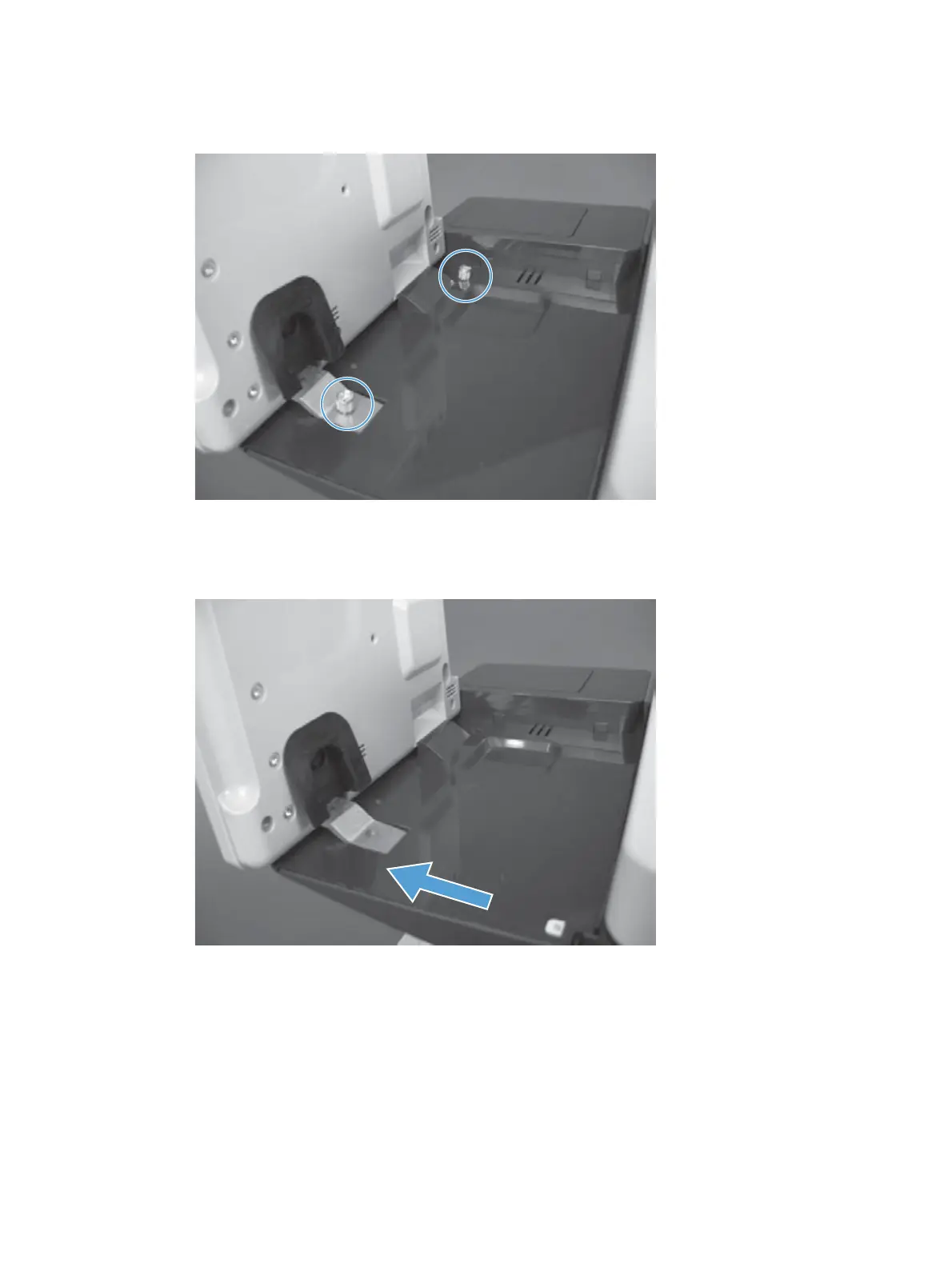

3. Remove two thumbscrews.
Figure 1-14 Remove the control-panel assembly (3 of 5)
4. Slowly slide the control-panel assembly away from the product to release it. Lift the control-panel
assembly to reveal the connectors.
Figure 1-15 Remove the control-panel assembly (4 of 5)
ENWW
Removal and replacement procedures
17
