5. Disconnect two connectors and then remove the control-panel assembly.

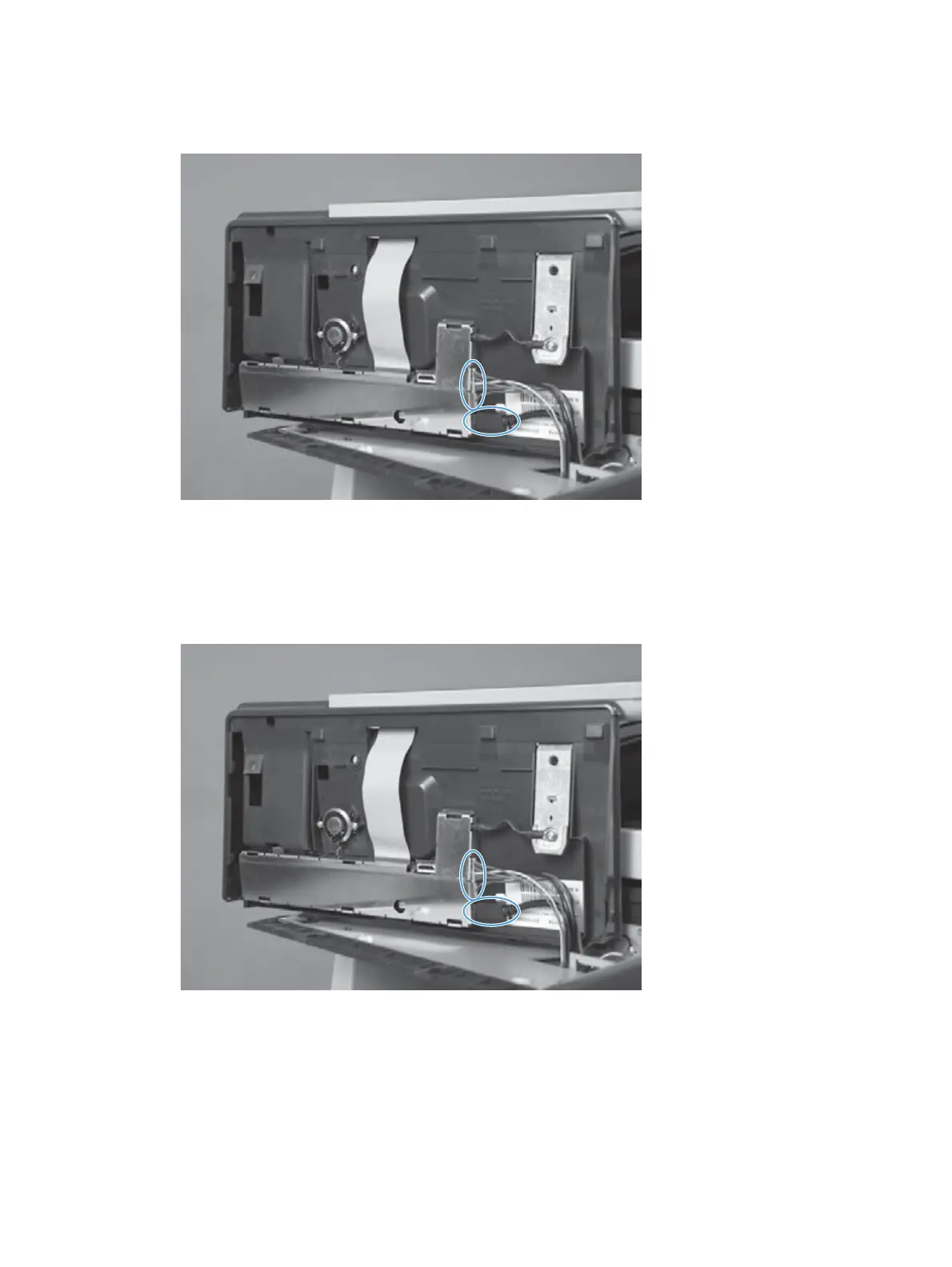

Figure 1-16 Remove the control-panel assembly (5 of 5)
Reinstalling the control-panel assembly
▲
Place the control-panel assembly on the product and reconnect the two connectors before
attempting to reinstall the control-panel assembly.
Figure 1-17 Reinstall the control-panel assembly
18 Chapter 1 Removal and replacement ENWW
