HP M525

3. Remove any debris from the foam reflector.

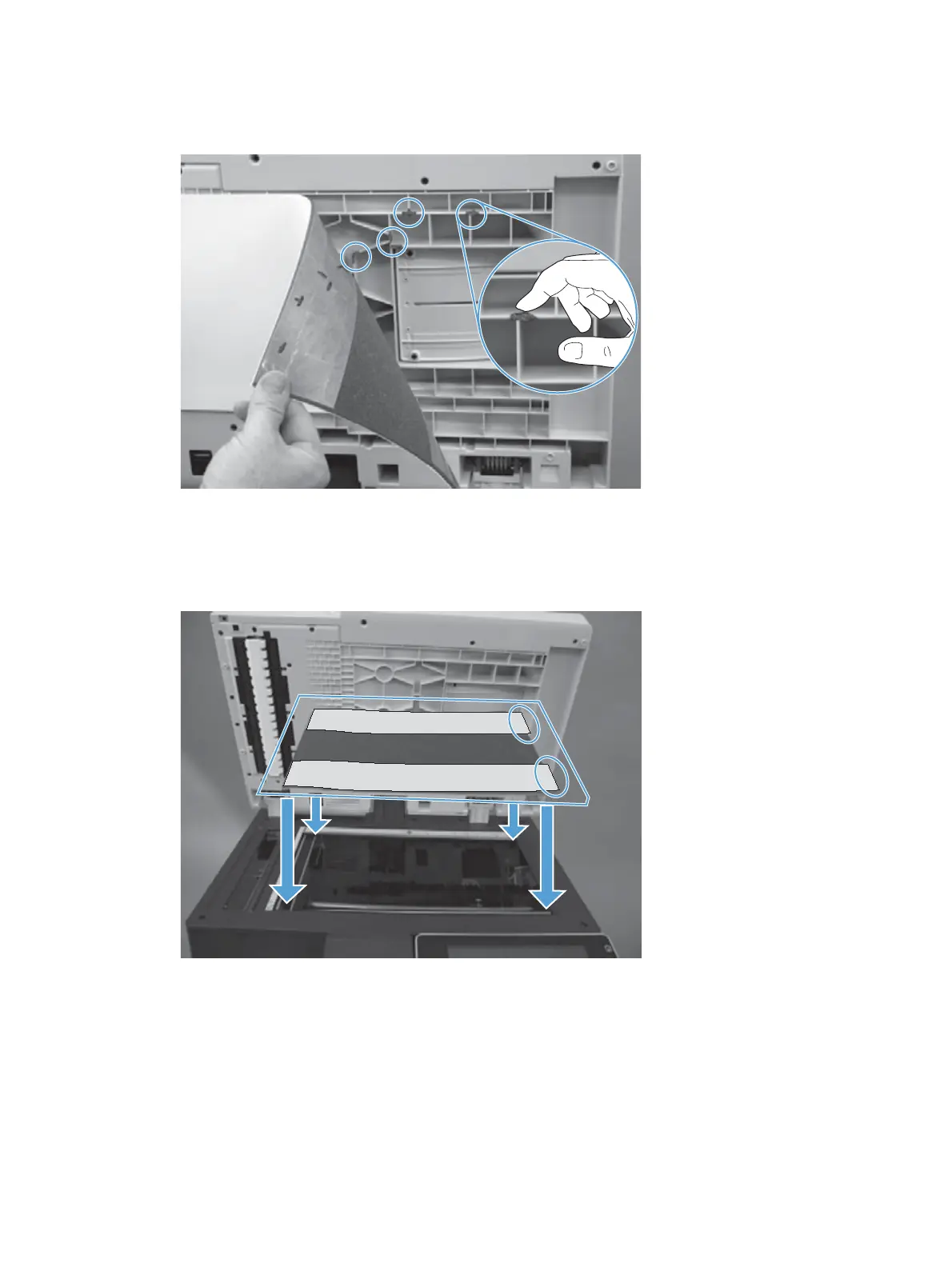

Figure 1-20 Remove the foam reflector kit (white ADF backing) (3 of 3)
Install the foam reflector kit (white ADF backing)
1. Place the reflector on the scanner glass with the adhesive facing up.
Figure 1-21 Install the foam reflector kit (white ADF backing) (1 of 7)
20 Chapter 1 Removal and replacement ENWW
