2. Remove the tape from the adhesive.

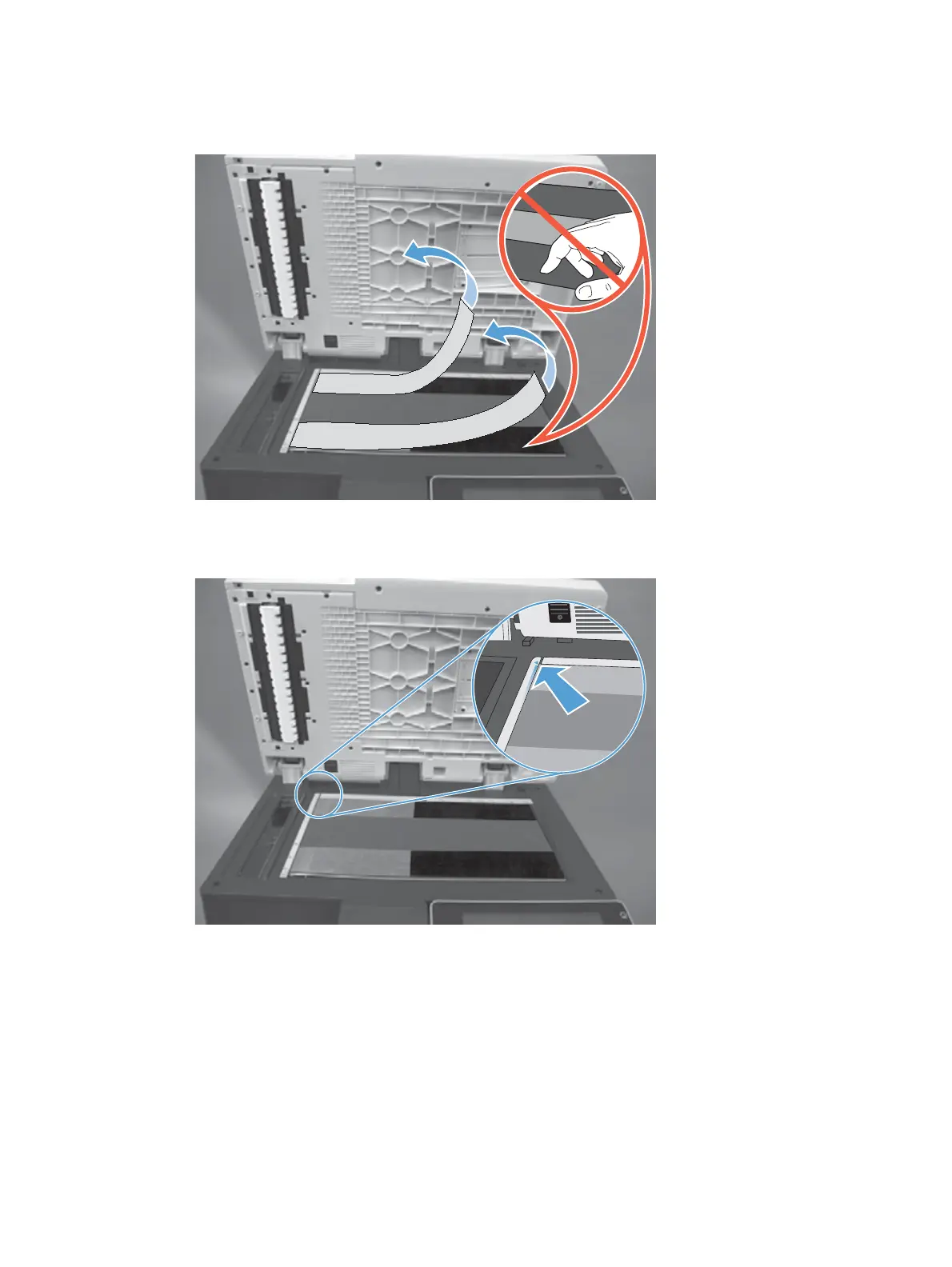

Figure 1-22 Install the foam reflector kit (white ADF backing) (2 of 7)
3. Make sure the corner of the foam reflector is aligned with the corner of the scanner glass.
Figure 1-23 Install the foam reflector kit (white ADF backing) (3 of 7)
