3. Push up on the link arm to release it.
CAUTION: The link arm is under spring tension. Do not let the link arm snap back toward the
product when you release it.

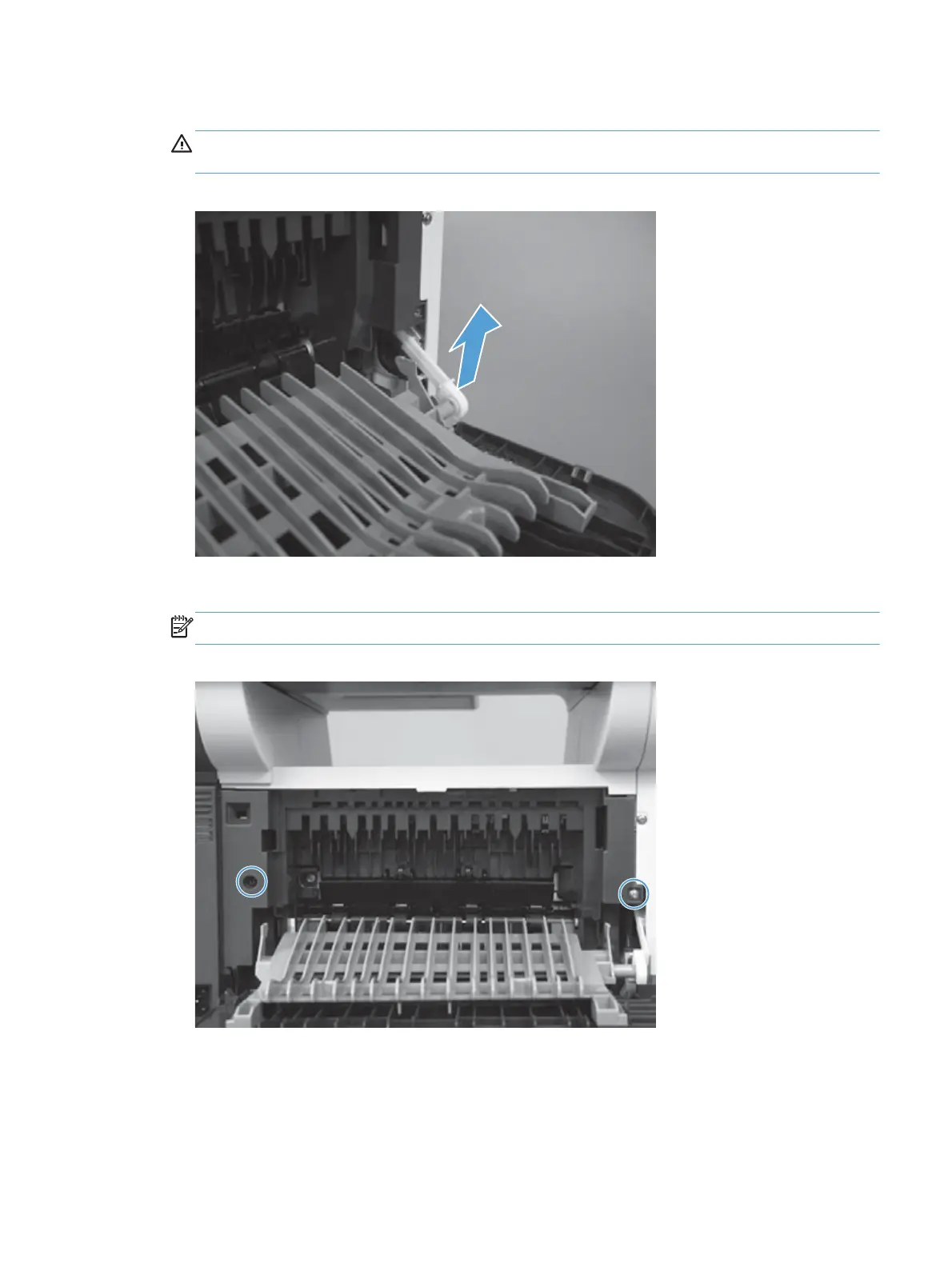

Figure 1-65 Remove the rear cover assembly (3 of 8)
4. Remove two screws (callout 1).
NOTE: These two screws are of different types. Make sure to install them in the correct location.
Figure 1-66 Remove the rear cover assembly (4 of 8)
