5. Release one tab and then slide the cover toward the front of the product to remove.
CAUTION: Do not damage the covers or the cartridge-door assembly (if you did not remove it)
when you remove the cover from the product.
Do not dislodge the power-switch assembly when you rotate the cover assembly away from the
product.

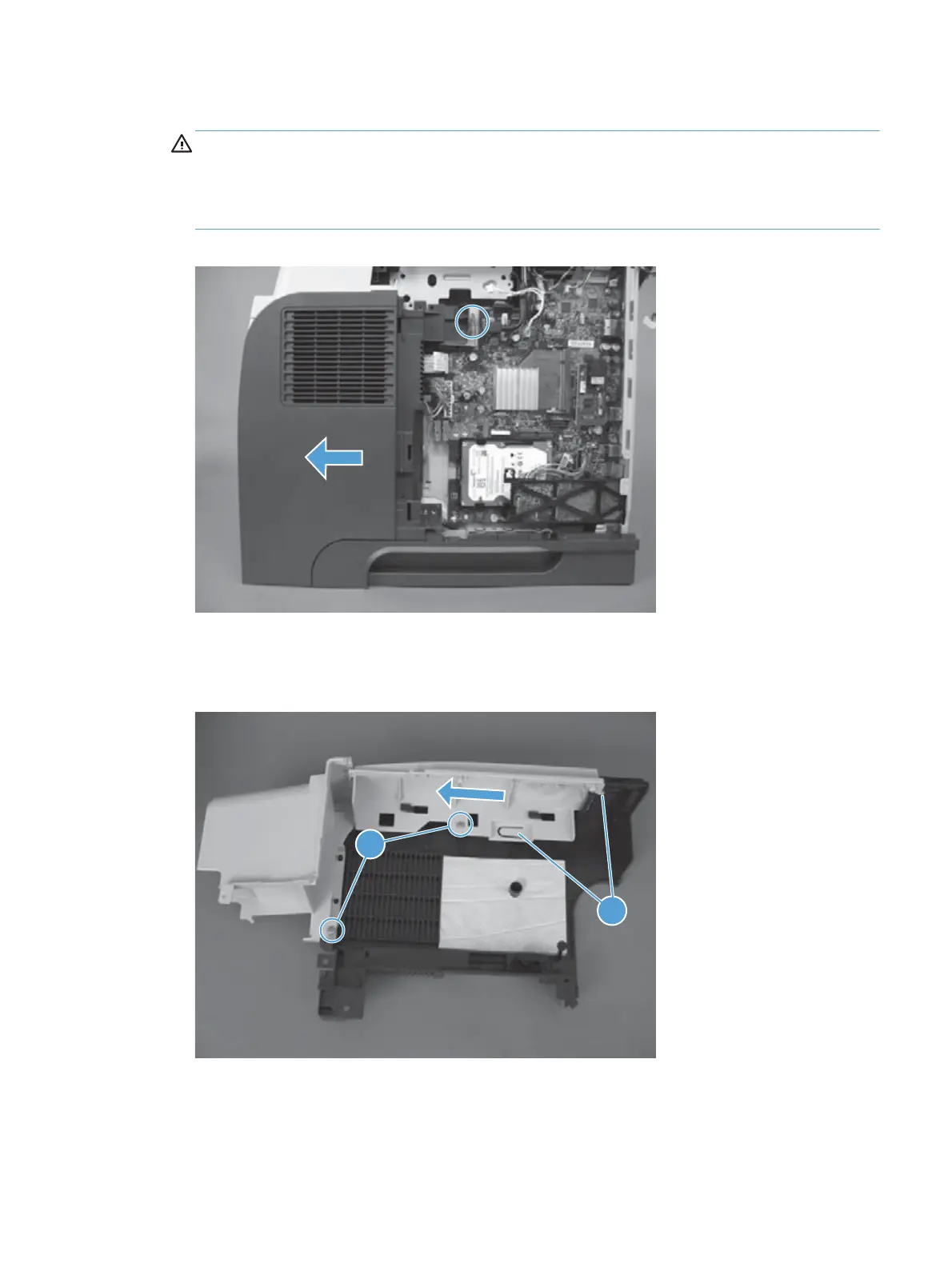

Figure 1-94 Remove the right cover assembly (3 of 4)
6. If necessary, remove two screws (callout 1), release two tabs (callout 2), and then slide the front-
right cover toward the top of the right-side cover to release it.
Figure 1-95 Remove the right cover assembly (4 of 4)
1
2
ENWW
Removal and replacement procedures
63
